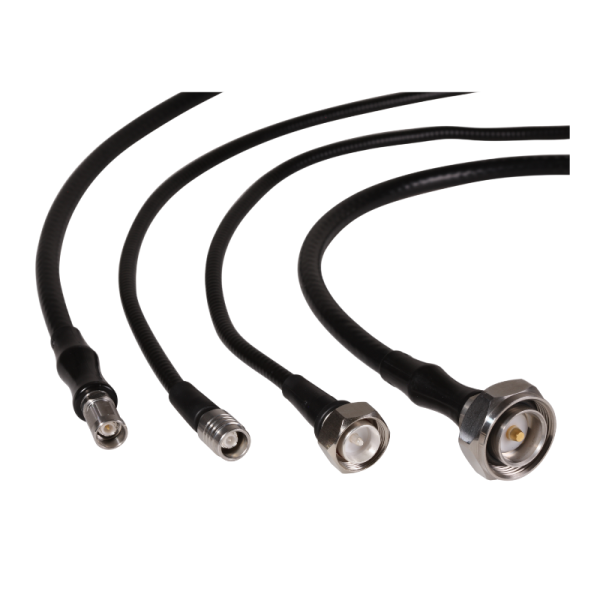

HUBER+SUHNER Sucofeed_1/2_HF with 4.3-10 Male Straight Both Ends - 1m LiS-C9-11431X-11431X-01000-52

HUBER+SUHNER Sucofeed_1/2_HF with 4.3-10 Male Straight Both Ends – 1m

The HUBER+SUHNER Sucofeed_1/2_HF RF cable assembly delivers exceptional electrical performance and mechanical durability for demanding RF and telecommunications applications. Designed for use up to 6 GHz, it provides low insertion loss, excellent return loss, and outstanding passive intermodulation (PIM) characteristics.

Engineered for outdoor and harsh environments, this robust coaxial cable assembly ensures long-term reliability for mobile network infrastructure, base stations, distributed antenna systems (DAS), and 5G applications. Fully tested and compliant with the latest RoHS and REACH directives, it meets the highest quality and environmental standards.

Key Features:

• Supports frequencies up to 6 GHz for high-performance RF transmission

• 4.3-10 male straight connectors on both ends for secure and low-loss connections

• Optimised for low PIM (≥ 160 dBc at 1.8 GHz) and excellent signal integrity

• Ideal for harsh outdoor conditions with IP68-rated sealing when mated

• Lightweight and flexible for quick installation and routing

• 100 % electrically tested up to 3.8 GHz

• Fully compliant with RoHS 2011/65/EU and REACH 1907/2006 standards

Technical Specifications:

Product Configuration:

• Cable Type: SUCOFEED_1/2_HF

• Connector A: 4.3-10 Male Straight

• Connector B: 4.3-10 Male Straight

• Length: 1000 mm

• Reference: REF to REF

Electrical Data:

• Impedance: 50 Ω

• Maximum Frequency: 6 GHz

• Passive Intermodulation (IM3): ≥ 160 dBc (2 × 20 W @ 1.8 GHz)

Mechanical Data:

• Weight: 0.23 kg

• Static Bending Radius: 25 mm

• Repeated Bending Radius: 50 mm

Environmental Data:

• Operating Temperature: −40 °C to +85 °C

• Ingress Protection: Mated / IP68 (24 h @ 1 m water depth)

Compliance:

• RoHS 2011/65/EU and (EU) 2015/863 – Compliant (Exemption 6c)

• REACH 1907/2006 Article 33 SVHC – Candidate List CAS 7439-92-1 (Lead)
