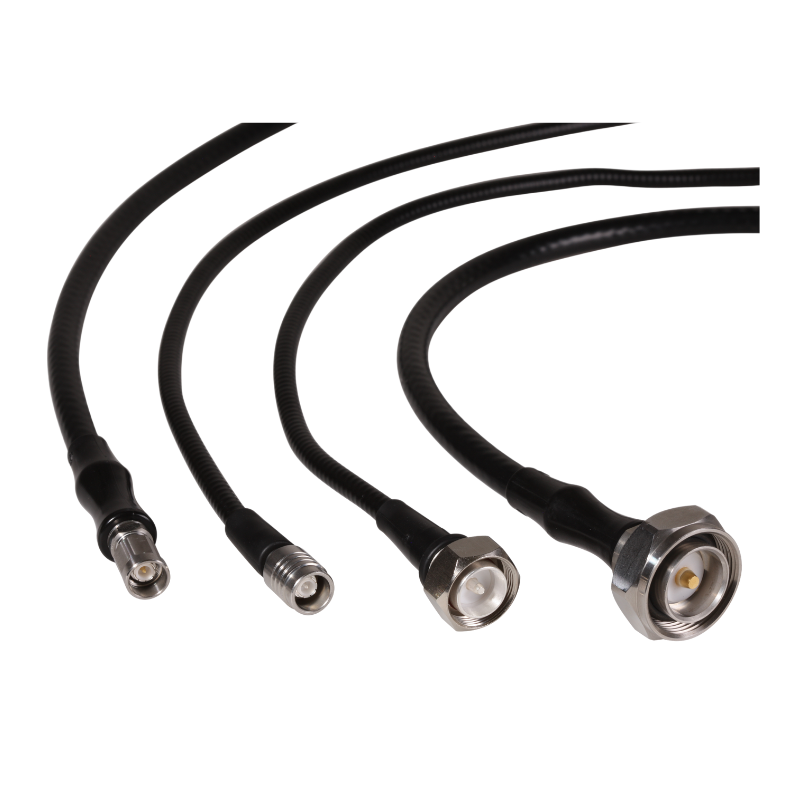

HUBER+SUHNER Sucofeed_1/2 with 4.3-10 Male Straight Both Ends (EACH) - 1m LIS-C12-11431X-11431X-01000-52

HUBER+SUHNER Sucofeed_1/2 with 4.3-10 Male Straight Both Ends (EACH) – 1m

The HUBER+SUHNER Sucofeed_1/2 RF cable assembly provides superior performance and reliability for high-frequency telecommunication and RF applications. Designed with 4.3-10 male straight connectors on both ends, this assembly ensures a secure, low-loss connection ideal for base stations, DAS systems, and 5G network deployments.

Engineered to operate up to 6 GHz, the Sucofeed_1/2 cable delivers exceptional return loss, low insertion loss, and outstanding passive intermodulation (PIM) performance. Built for outdoor use, it features an IP68 sealing when mated, ensuring long-term reliability even in harsh conditions. Fully compliant with RoHS and REACH directives, this high-quality assembly meets industry standards for performance and safety.

Key Features:

• High-performance RF cable assembly supporting up to 6 GHz

• Equipped with 4.3-10 male straight connectors on both ends

• Excellent low PIM performance (≥ 160 dBc @ 1.8 GHz)

• Robust and weather-resistant IP68-rated design

• 50 Ω impedance for precise signal transmission

• Fully electrically tested up to 3.8 GHz for guaranteed reliability

• Suitable for harsh outdoor and telecom environments

• RoHS and REACH compliant construction

Technical Specifications:

Product Configuration

• Cable Type: Sucofeed_1/2

• Connector A: 4.3-10 Male Straight

• Connector B: 4.3-10 Male Straight

• Length: 1000 mm (1m)

• Length Type: REF to REF

Electrical Data

• Impedance: 50 Ω

• Maximum Frequency: 6 GHz

• Passive Intermodulation (IM3): ≥ 160 dBc (2 × 20 W @ 1.8 GHz)

Mechanical Data

• Weight: 0.23 kg

• Static Bending Radius: 25 mm

• Repeated Bending Radius: 50 mm

Environmental Data

• Operating Temperature: −40 °C to +85 °C

• Ingress Protection: Mated / IP68 (24 h at 1 m water depth)

Compliance

• RoHS 2011/65/EU and (EU) 2015/863 – Compliant (Exemption 6c)

• REACH 1907/2006 Article 33 SVHC – Candidate List (CAS: 7439-92-1 Lead)
