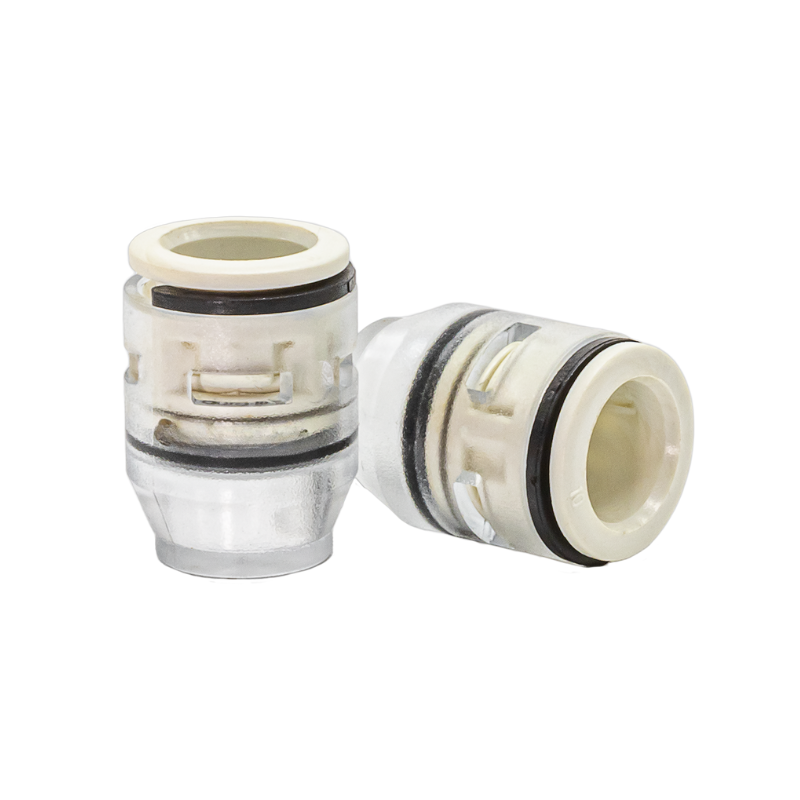

Micro End Stop Fire Retardant – 14mm

The Micro End Stop Fire Retardant – 14mm is designed to terminate unused LSHF (Low Smoke Halogen Free) MicroDucts securely. Manufactured from flame-retardant materials, it offers a gas- and water-tight seal, ensuring optimal protection for your fibre infrastructure. With a built-in safety locking clip, this end stop is ideal for telecommunications, transport, and indoor data network installations where fire performance is critical.

Key Features:

• Compatible with 14mm outer diameter MicroDucts

• Gas- and water-tight seal to protect unused ducts

• Pre-installed flame-retardant safety locking clip

• Easy push-fit connection for quick, tool-free installation

• Made from UL94 V-0 flame-rated materials

• Pressure tested to 16 bar for secure operation

• Ideal for use in buildings requiring EN 13501-1 compliance

Technical Specifications:

• MicroDuct Outer Diameter: 14mm

• Material Composition:

  • Body: FR V0 Polycarbonate

  • Collet & Ring: FR V0 POK

  • Grip Ring: Stainless steel 304

  • O-Ring: FR V0 Silicone

  • Locking Clip: FR V0 Polyamide

• Dimensions (mm):

  • B: 23.4

  • C: 23.2

  • D (AD): 16.1

  • F: 25.5

• Performance Characteristics:

  • Operating Pressure: 16 bar

  • Burst Pressure: >25 bar

  • Pull-out Force: 90 N

  • Insertion Force: ≤ 90 N

  • Impact Resistance: 1 joule

• Temperature Range:

  • Operating/Installation/Storage: -15°C to +45°C

• Fire Classification:

  • EN 13501-1: C-s2, d0

  • UL94 V-0 flame resistance
