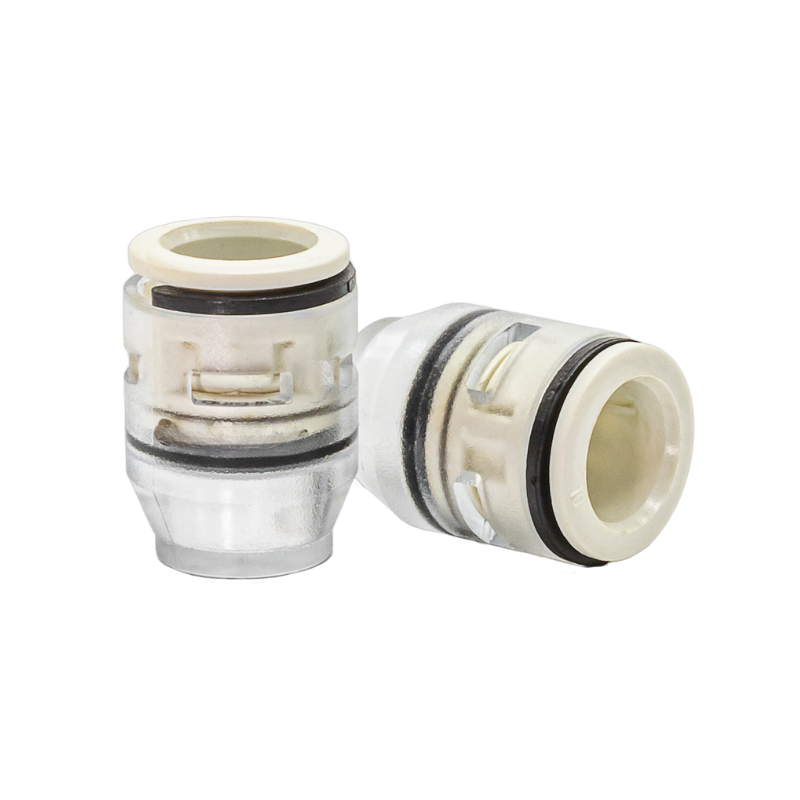

Micro End Stop Fire Retardant – 10mm

The Micro End Stop Fire Retardant – 10mm provides a secure, gas- and water-tight closure for unused Low Smoke Halogen Free (LSHF) MicroDucts. Engineered for installations requiring fire safety compliance, this durable accessory ensures network integrity by preventing contamination and protecting the fibre route. Supplied with a pre-installed safety locking clip, it is ideal for telecoms, transport, and data centre environments.

Key Features:

• Ensures gas and water sealing of MicroDuct ends

• Constructed from flame-retardant materials (UL94 V-0 rated)

• Pre-fitted safety locking clip for secure installation

• Easy push-fit connection

• Compatible with 10mm outer diameter MicroDucts

• Pressure tested up to 16 bar

• Suitable for use in fire-critical environments (EN 13501-1 C-s2, d0)

Technical Specifications:

• Compatible MicroDuct OD: 10mm

• Material Composition:

  • Body: FR V0 Polycarbonate

  • Collet & Ring: FR V0 POK

  • Grip Ring: Stainless steel 304

  • O-Ring: FR V0 Silicone

  • Locking Clip: FR V0 Polyamide

• Dimensions (mm):

  • B: 22.4

  • C: 21.8

  • D (AD): 13.5

  • F: 23.8

• Performance:

  • Operational Pressure: 16 bar

  • Burst Pressure: >25 bar

  • Pull-out Force: 90 N

  • Insertion Force: ≤ 90 N

  • Impact Resistance: 1 joule

• Temperature Range:

  • Operating/Installation/Storage: -15°C to +45°C

• Fire Performance:

  • EN 13501-1: C-s2, d0

  • Flame Rating: UL94 V-0
