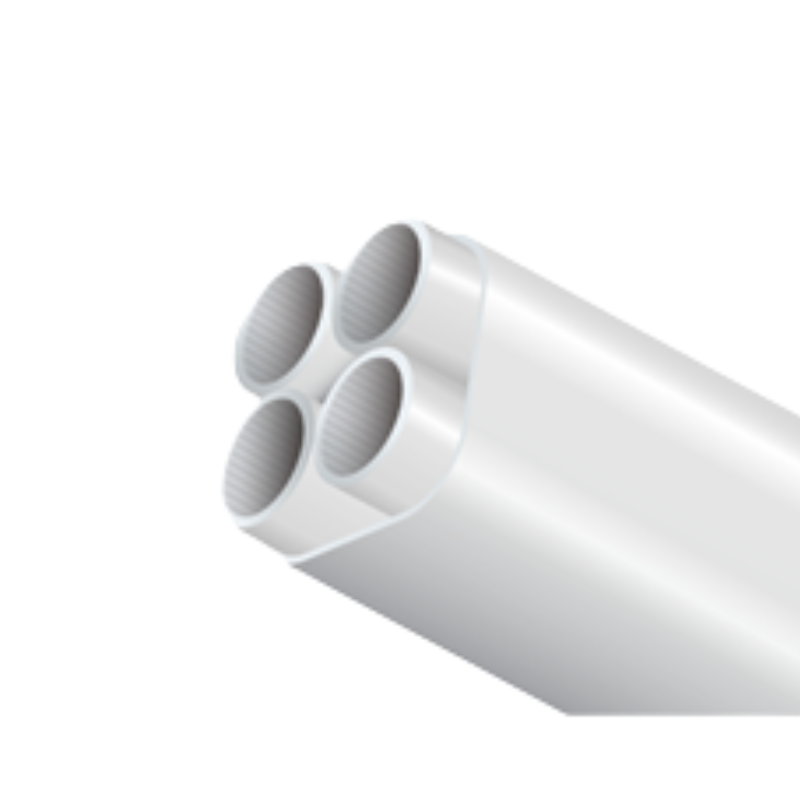

Microduct LSHF Multiway 4x5/3.5mm – Natural Milk White – Regular

The Microduct LSHF Multiway 4x5/3.5mm – Natural Milk White – Regular is a compact, fire-retardant duct solution designed for in-building fibre deployments where safety and future scalability are paramount. Constructed using Low Smoke Halogen Free (LSHF) materials, this 4-way bundled duct is ideal for environments such as FTTH installations, LANs, data centres, and transport hubs where flame spread, smoke, and toxic emissions must be strictly controlled.

Each MicroDuct is engineered with a SILICORE® permanently lubricated inner lining, ensuring low friction for superior fibre jetting and long-distance installations. The multiway configuration enables quick, cost-effective moves, adds, and changes (MACs) while maintaining optimal performance and safety standards.

Tested to leading European standards, including EN 13501-1, EN 50642, and IEC 61386-22, this high-performance duct solution offers both safety and technical reliability for modern fibre network rollouts.

Key Features:

• 4 x 5/3.5mm MicroDucts bundled for space-saving, scalable installs

• Constructed from LSHF materials to reduce flame, smoke, and toxic fume emission

• Tested and rated to EN 13501-1 (B-s2, d0 or C-s2, d2 depending on configuration)

• Halogen-free in compliance with EN 50642

• Marked and verified by VDE to IEC 61386-22:2021 standards

• Inner ducts lined with SILICORE® for optimal jetting performance (COF < 0.1)

• Fill ratio support: 50–75% for efficient and flexible fibre usage

• Ideal for indoor FTTH, data centre, LAN, and transit system networks

• Colour: Natural Milk White for easy identification and integration

Technical Specifications:

• Configuration: 4 MicroDucts (5mm OD / 3.5mm ID)

• Material: LSHF (Low Smoke Halogen Free)

• Colour: Natural Milk White

• Inner Coating: SILICORE® – coextruded permanent lubrication

• Standards:

  • EN 13501-1 Fire Classification

  • EN 50642 Halogen-free

  • EN IEC 61386-22 (VDE Certified)

• Use Cases: Indoor FTTH, data centres, LANs, building backbones, transport networks

• Fibre Fill Ratio: 50% minimum – 75% maximum

• Fire Class Ratings: B-s2, d0 or C-s2, d2 (dependent on mounting)
