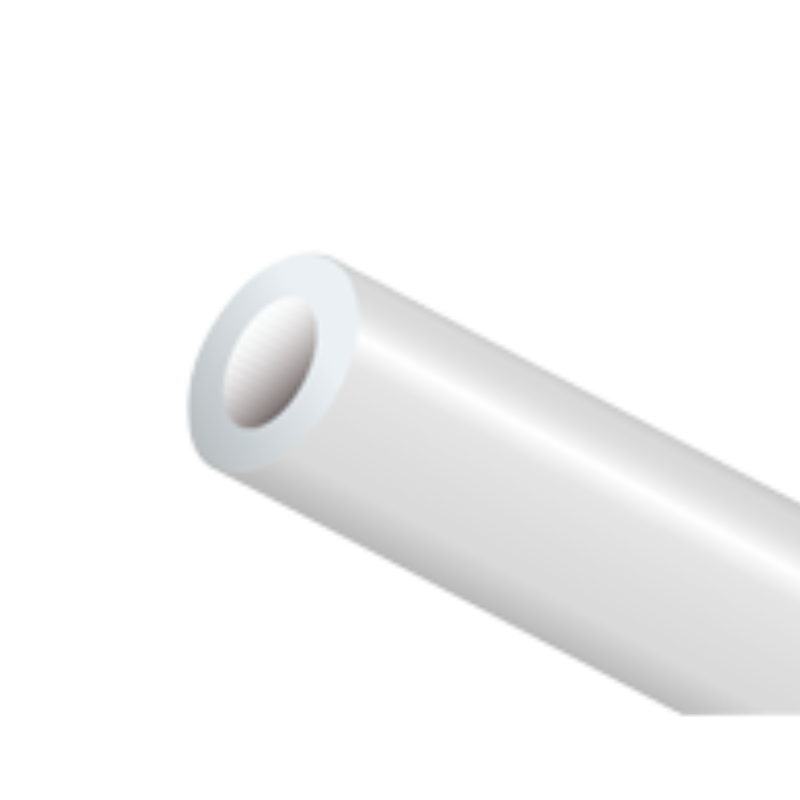

MicroDucts LSHF Ribbed – Regular – 12/10mm – Natural Milk White
The MicroDuct LSHF Ribbed – Regular – 12/10mm – Natural Milk White is a high-quality, halogen-free ducting solution for fibre optic installations in indoor environments where safety, durability, and low smoke emissions are essential. Designed for optimal fibre jetting, this microduct features a ribbed internal wall that reduces friction, enabling smoother cable blowing and easier installations across FTTH, LAN, and data centre networks.
Manufactured from Low Smoke Halogen Free (LSHF) material and tested to EN 13501-1 fire standards, this 12mm outer diameter duct with a 10mm internal diameter delivers excellent performance in high-density, fire-sensitive areas such as commercial buildings and public infrastructure.
Key Features:
- Outer Diameter / Inner Diameter: 12mm / 10mm
- Ribbed internal wall enhances air flow and reduces friction during fibre jetting
- Constructed from LSHF material – compliant with fire and smoke safety regulations
- Colour: Natural Milk White – ideal for indoor applications
- Halogen-free, tested to EN 50642
- Fire-rated to EN 13501-1, achieving B-s2, d0 or C-s2, d2 based on configuration
- Certified to EN IEC 61386-22:2021, VDE audited
- Compatible with SILICORE® low-friction inner lining for enhanced jetting (optional)
- Suitable for FTTH deployments, riser routes, data centres, and telecom cabinets
Technical Specifications:
- Type: Single MicroDuct
- Wall Structure: Ribbed
- Outer Diameter (OD): 12mm
- Inner Diameter (ID): 10mm
- Material: Low Smoke Halogen Free (LSHF)
- Colour: Natural Milk White
- Fire Classification: EN 13501-1
- Halogen-Free Standard: EN 50642
- Certification: EN IEC 61386-22, VDE Certified
- Application: Indoor fibre networks, confined spaces, commercial telecom installs
|
