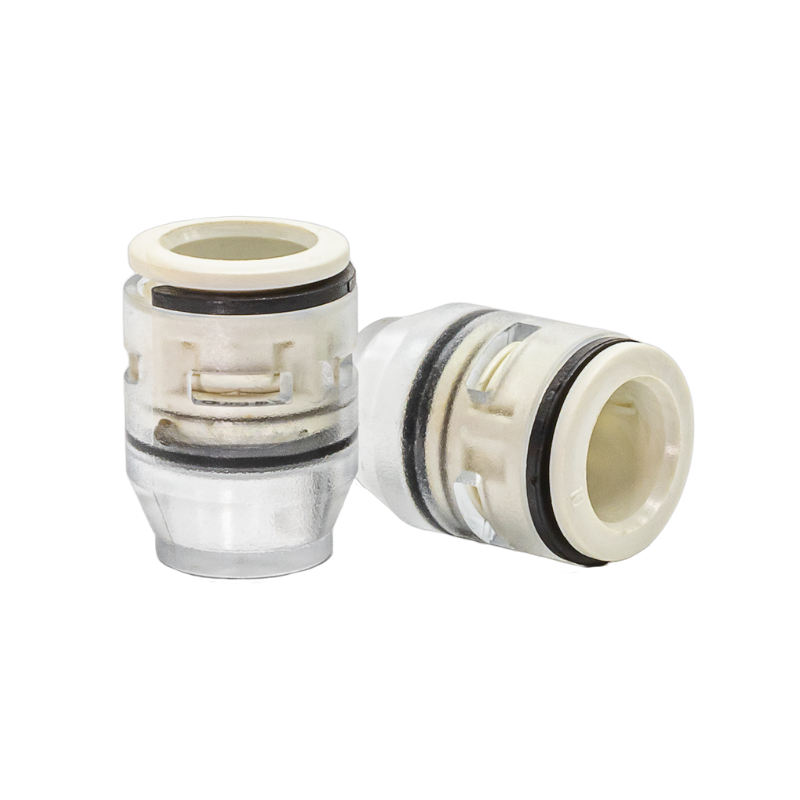

Micro End Stop Fire Retardant – 5mm

The Micro End Stop Fire Retardant – 5mm is engineered to provide a secure gas- and water-tight seal for LSHF (Low Smoke Halogen Free) MicroDuct systems. It helps prevent the ingress of moisture, debris, and contaminants into the duct network. Delivered with a pre-installed safety clip, this accessory is ideal for fire-sensitive environments such as data centres, transport infrastructure, and telecoms.

Key Features:

• Provides moisture and debris protection

• Fire retardant materials, rated UL94 V-0

• Preinstalled safety locking clip

• Supports pressure up to 16 bar

• Rated to EN 13501-1: Fire performance C-s2, d0

• Suitable for use with FR LSHF MicroDucts

• Operating temperature: -15 °C to +45 °C

• Pull-out force: 55 N

• Insertion force ≤ 50 N

• Impact resistance: 1 joule

Technical Specifications:

• Compatible MicroDuct size: 5mm

• Material Composition:

  • Body: FR V0 Polycarbonate

  • Collet & Ring: FR V0 POK

  • Grip Ring: Stainless steel 304

  • O-Ring: FR V0 Silicone

  • Locking Clip: FR V0 Polyamide

• Dimensions (mm):

  • B: 18.0

  • C: 14.7

  • D (AD): 7.2

  • F: 20.0

• Pressure Ratings:

  • Operational: 16 bar

  • Burst: >25 bar

• Standards Compliance:

  • Flame Resistance: UL94 V-0

  • Fire Performance: EN 13501-1 (C-s2, d0)

• Operating, Installation & Storage Temp: -15°C to +45°C
