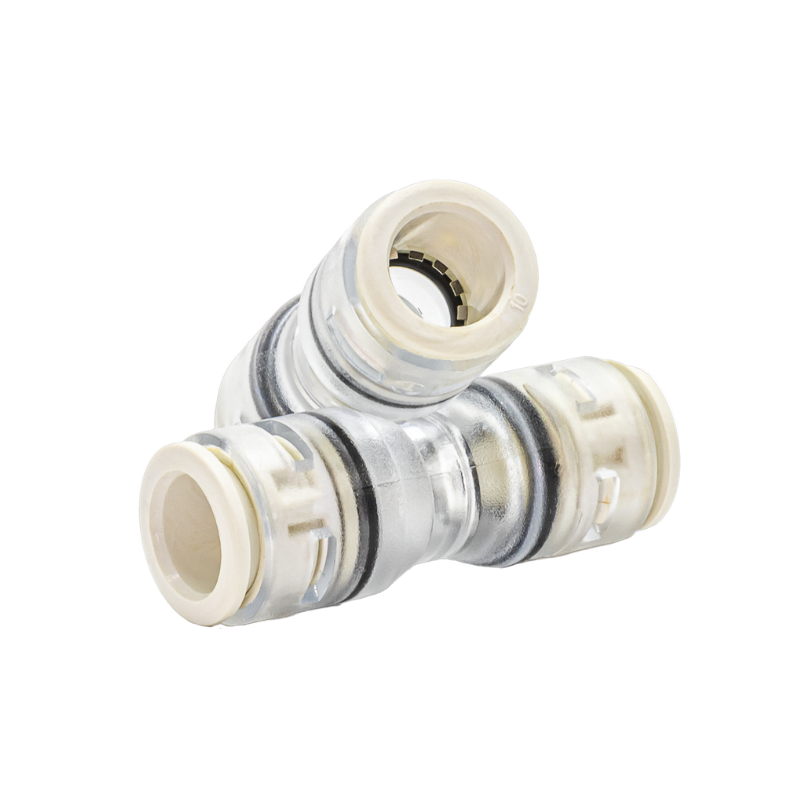

Micro Connector Fire Retardant 5mm

The Micro Connector Fire Retardant 5mm offers a fast, tool-free solution for connecting LSHF (Low Smoke Halogen Free) MicroDucts in indoor environments where fire and smoke safety is critical. With its transparent design for easy cable visibility and flame-retardant construction, it’s the ideal connector for FTTH, LAN, and data centre applications.

Key Features:

• Tool-free installation for quick, secure connections

• Transparent body allows visual cable verification

• Compatible with LSHF & fire retardant MicroDucts

• Robust construction with FR V0-rated materials

• Withstands operational pressure up to 16 bar

• Fire performance rating: C-s2, d0 (EN 13501-1)

• UL94 V-0 flame resistance compliant

Technical Specifications:

• Size: 5.5/3.5 mm inner diameter compatibility

• Insertion force: ≤ 50 N

• Operating temperature: -15°C to +45°C

• Material: FR V0 Polycarbonate, POK, and stainless steel

• Pull-out force: 55 N

• Packaging: 350 pcs per pack

• SAP Code: 20080162

• Rated pressure: 16 bar (operation), 25 bar (burst)

• Impact resistance: 1 joule
