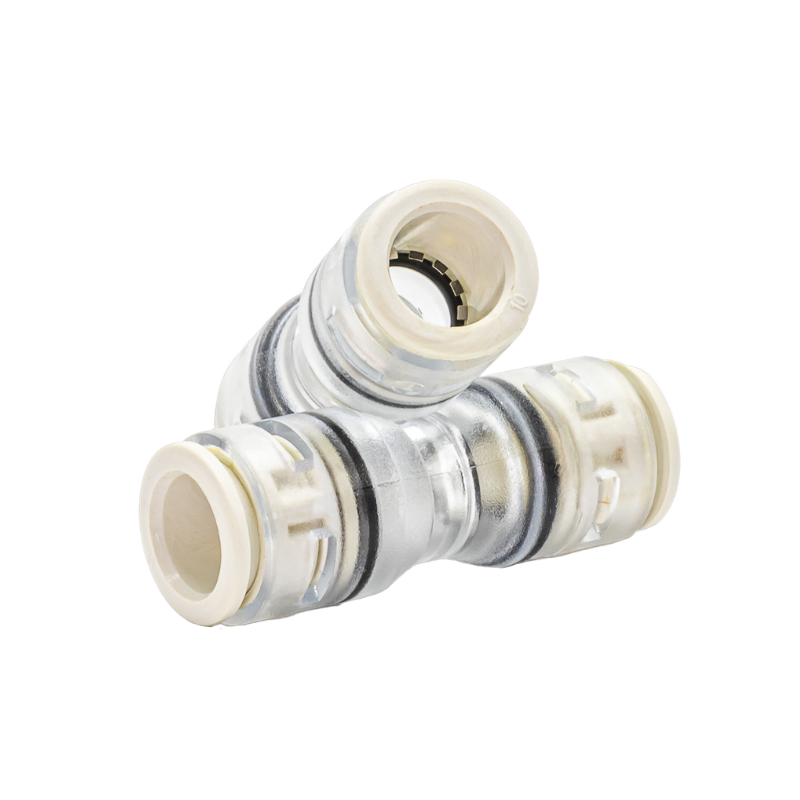

Micro Connector Fire Retardant - 14mm
The Micro Connector Fire Retardant 14mm is a high-performance solution for joining 14mm microducts in indoor fibre networks. Designed using flame-retardant, low smoke halogen-free (LSHF) materials, this push-fit connector ensures compliance with the most stringent fire safety standards. Its robust and reusable construction provides a secure, airtight seal ideal for FTTH, LAN, and data centre applications where safety and reliability are paramount.
Key Features:
- Compatible with 14mm OD microducts
- Push-fit design for fast and secure installations
- Manufactured from halogen-free, flame-retardant materials
- Transparent body allows visual inspection of connection
- Airtight seal ensures effective fibre blowing performance
- Reusable housing with replaceable internal components
Technical Specifications:
- Duct compatibility: 14mm outer diameter
- Material: Flame-retardant, LSHF polymer
- Connection type: Push-fit with grip and sealing rings
- Temperature range: -40°C to +75°C
- Colour: Transparent/natural
- Standards: EN 50642 compliant
- Application: FTTH, FTTB, LAN, transport, and indoor data networks
|
