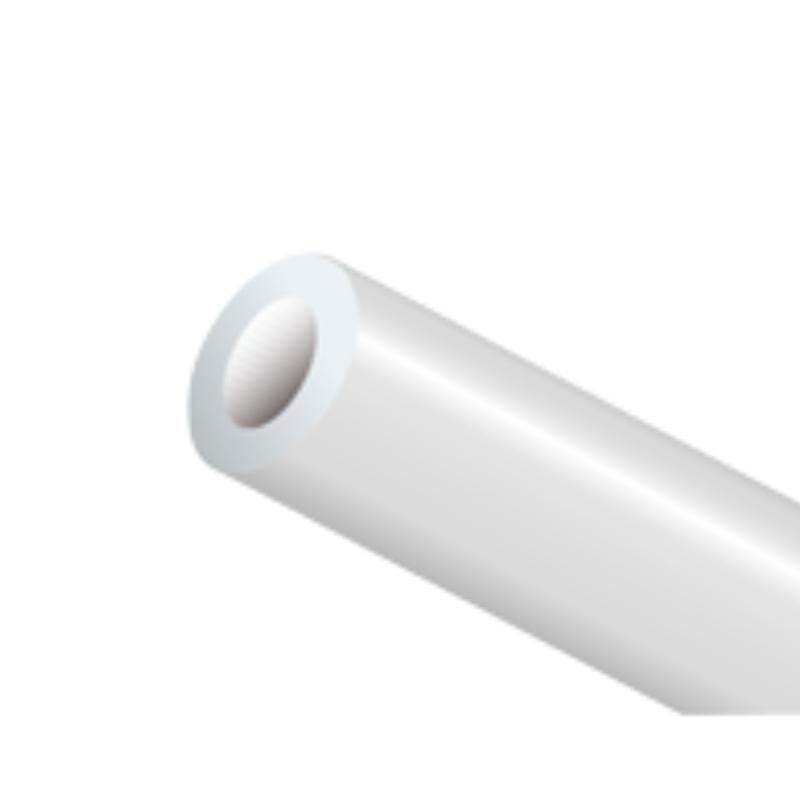

MicroDucts LSHF Ribbed – Regular – 10/6mm – Natural Milk White
The MicroDuct LSHF Ribbed – Regular – 10/6mm – Natural Milk White is a high-performance, single microduct solution specifically designed for safe and efficient indoor fibre optic deployments. Manufactured from Low Smoke Halogen Free (LSHF) material, this microduct supports installations in environments where fire safety and low emissions are critical, such as FTTH networks, data centres, and commercial buildings.
With a 10mm outer diameter and a 6mm inner diameter, the duct features a ribbed internal wall to enhance fibre blowing performance by reducing friction. The natural milk white colour provides clean routing and high visibility for indoor cable management. Fully compliant with EN 13501-1 and EN 50642 standards, this ducting solution ensures long-term safety and reliability.
Key Features:
- 10mm OD / 6mm ID single microduct for in-building fibre optic installations
- Ribbed internal surface for improved air flow and cable jetting performance
- Constructed from fire-rated, halogen-free LSHF material
- Natural milk white for enhanced visibility and professional appearance
- Fire tested to EN 13501-1: B-s2, d0 or C-s2, d2 depending on configuration
- Halogen-free according to EN 50642 standard
- Certified to EN IEC 61386-22:2021, VDE audited
- Ideal for FTTH, data centres, LAN environments, and indoor telecom networks
- Compatible with SILICORE® low-friction inner lining (if specified)
Technical Specifications:
- Outer Diameter: 10mm
- Inner Diameter: 6mm
- Wall Type: Ribbed
- Material: Low Smoke Halogen Free (LSHF)
- Colour: Natural Milk White
- Fire Compliance: EN 13501-1
- Halogen-Free Standard: EN 50642
- Marking Compliance: EN IEC 61386-22:2021
- Certifications: VDE Certified
- Applications: Indoor FTTH, data centres, riser installations, confined spaces
|
