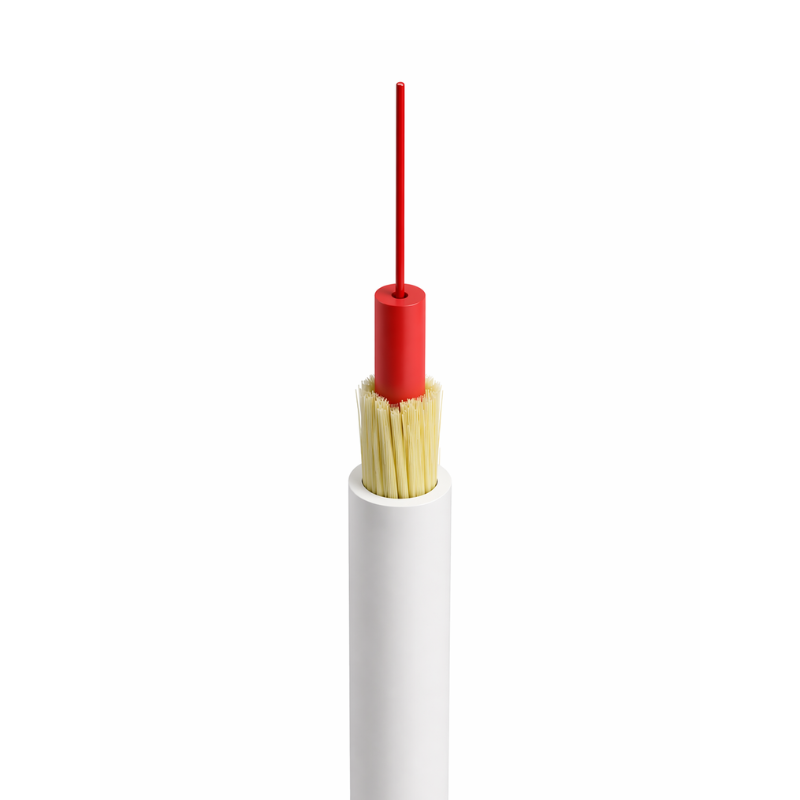

Internal Drop Cable 1F 2.8mm – 500m
The Internal Drop Cable 1F 2.8mm – 500m is a compact, flexible fibre solution designed for efficient and discreet indoor FTTH deployments across residential and MDU environments.
Engineered with a reduced 2.8mm diameter, this cable enables clean routing along skirting boards, door frames and ceilings, making it ideal for visible in-home installations where aesthetics are critical. Its white LSZH-FR outer sheath (RAL 9010) ensures low visual impact while maintaining full compliance with European fire safety regulations.
Built using G.657A2 bend-optimised singlemode fibre, the cable supports tight bend radii with minimal signal loss, allowing installation in confined spaces and around tight corners. Its flexible construction supports both pulling and adhesive-based installation methods, improving efficiency and reducing installation time on-site.
Supplied in a 500m drum, this cable is ideal for larger-scale deployments, ensuring consistency, reliability and reduced handling during installation.
Key Features:
-
1 fibre (1F) configuration for FTTH drop applications
-
2.8mm compact diameter for discreet indoor routing
-
Supplied on 500m drum for large-scale installations
-
White LSZH-FR sheath (RAL 9010) for clean finish
-
G.657A2 bend-insensitive fibre for tight routing
-
Flexible design for pulling or adhesive installation
-
Compatible with field-mount connectors (Ø3.0mm)
-
Ideal for MDU and SDU indoor deployments

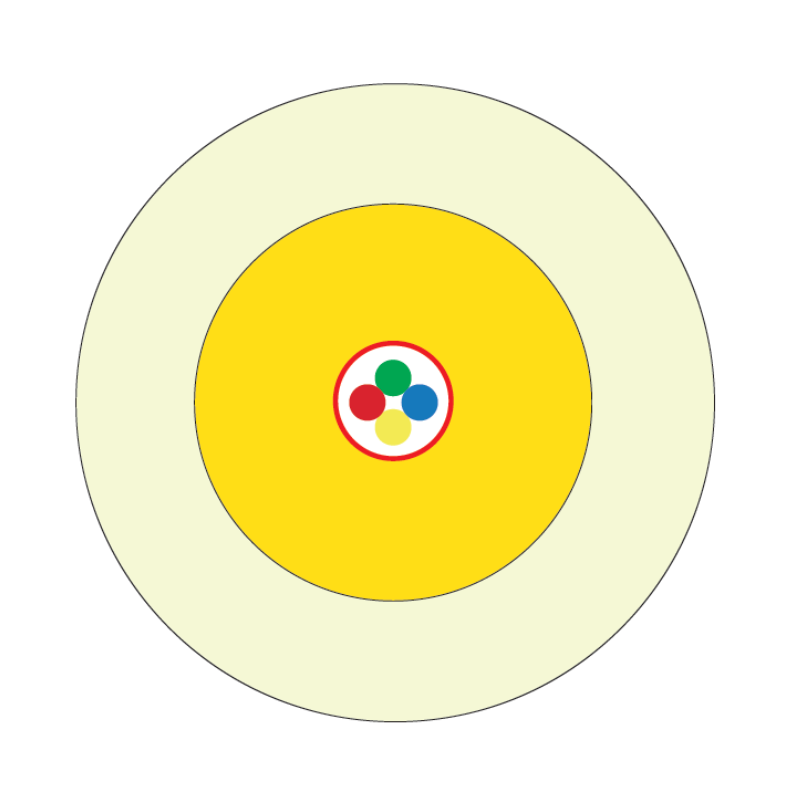

Technical Specifications:
-
Product Type: Indoor fibre drop cable
-
Fibre Count: 1F
-
Fibre Type: ITU-T G.657A2 singlemode
-
Outer Diameter: 2.8 mm
-
Sheath Material: LSZH-FR (Low Smoke Zero Halogen)
-
Colour: White (RAL 9010)
-
Buffer: 900µm micro-bundle (LSZH, red)
-
Weight: ~13 kg/km
-
Fire Rating: CPR Cca-s1,d0,a1 compliant
-
Length: 500 metres
Mechanical & Environmental Performance
Applications:
-
Indoor FTTH installations
-
MDU and SDU fibre deployments
-
Discreet in-home cable routing
-
ONT connection and subscriber drops
-
Large-scale residential rollouts
