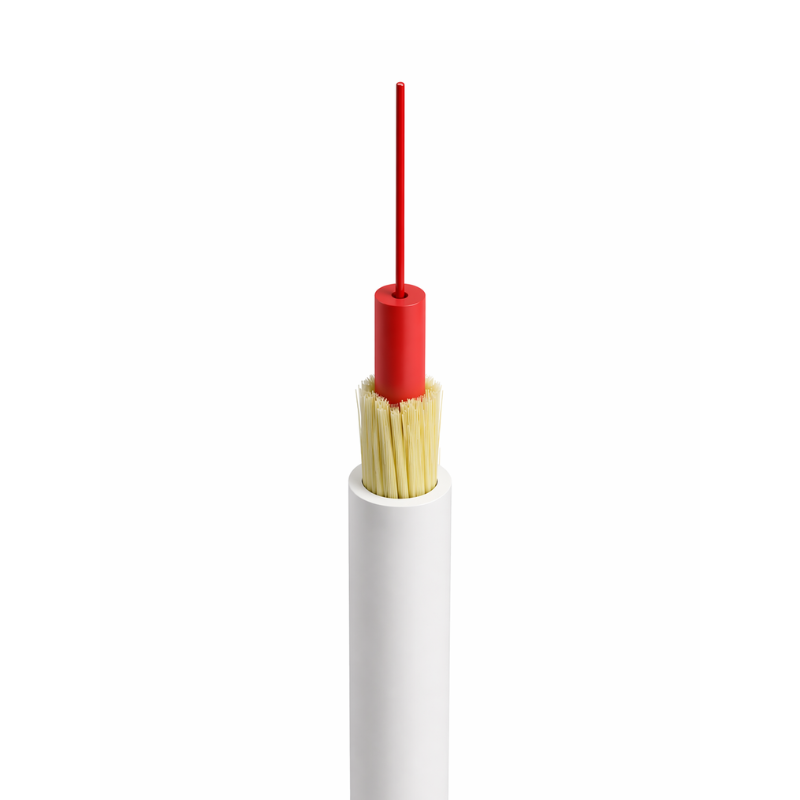

Internal Drop Cable 1F 2.8mm Cca White – Bare
The Internal Drop Cable 1F 2.8mm Cca White – Bare is a compact and flexible fibre solution engineered for discreet indoor FTTH installations in residential and MDU environments.
Designed with a reduced 2.8mm diameter, this cable enables clean routing along skirting boards, door frames and ceilings, making it ideal for visible in-home deployments where aesthetics are critical. Its white LSZH-FR outer sheath (RAL 9010) ensures a low visual impact while maintaining compliance with European fire safety standards.
Built with G.657A2 bend-optimised singlemode fibre, the cable supports tight bend radii with minimal signal loss, allowing installation in confined spaces and around tight corners. The flexible construction and lightweight design make it suitable for both pulling and adhesive-based installation methods, improving efficiency on-site.
Supplied with a bare end, this cable allows for on-site termination using field-mount connectors or splicing, providing flexibility across different installation requirements.
Key Features:
-
1 fibre (1F) configuration for FTTH drop applications
-
2.8mm compact diameter for discreet indoor routing
-
White LSZH-FR sheath for clean, aesthetic installations
-
G.657A2 bend-insensitive fibre for tight routing
-
Flexible construction for easy installation (pulling or gluing)
-
Bare end for on-site termination flexibility
-
Compatible with field-mount connectors (Ø3.0mm)
-
Ideal for MDU and SDU indoor deployments
Technical Specifications:
-
Product Type: Indoor fibre drop cable
-
Fibre Count: 1F
-
Fibre Type: ITU-T G.657A2 singlemode
-
Outer Diameter: 2.8 mm
-
Sheath Material: LSZH-FR (Low Smoke Zero Halogen)
-
Colour: White (RAL 9010)
-

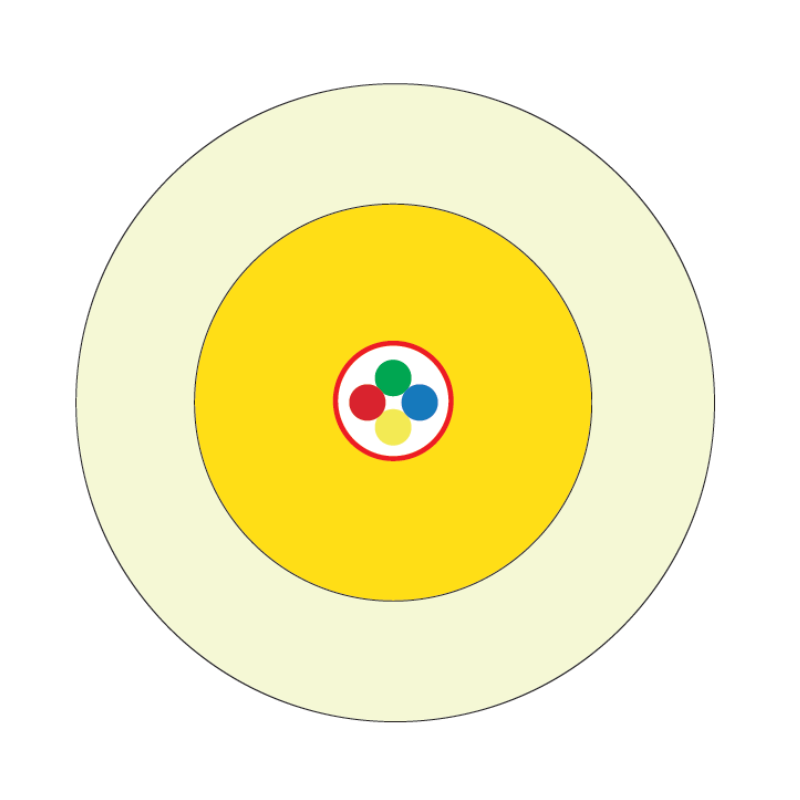

Buffer: 900µm micro-bundle (LSZH, red)
-
Weight: ~13 kg/km
-
Fire Rating: CPR Cca-s1,d0,a1 compliant
Mechanical & Environmental Performance:
-
Tensile Strength: 100N
-
Minimum Bend Radius: 5 mm (kink), 12.5 mm static
-
Crush Resistance: Up to 10 daN/cm
-
Temperature Range: -5°C to +60°C (operation)
Applications:
-
Indoor FTTH installations
-
MDU and SDU fibre deployments
-
Discreet in-home cable routing
-
ONT connection and subscriber drops
-
Retrofit and new-build fibre installations
