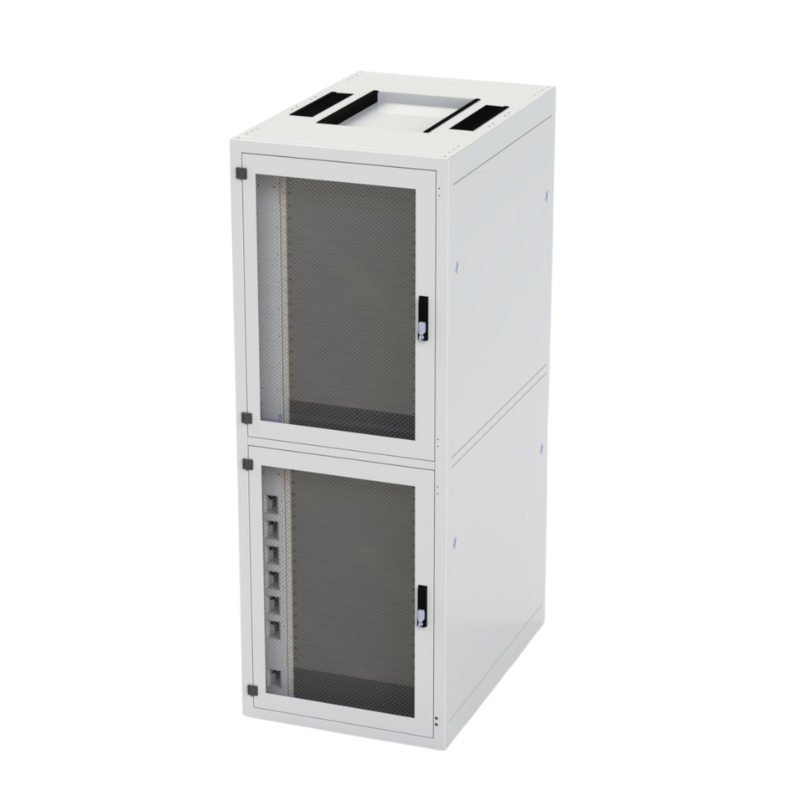

Rainford Three Section Colocation Rack Cabinet – 42U × 800 × 1000
The Rainford SafeServ® CX 42U Three Section Colocation Rack Cabinet is a secure, UK-engineered multi-compartment enclosure designed for data centres requiring fully segregated hosting. With three independent compartments, each offering isolated access, airflow and cable pathways, it delivers exceptional security and tenant separation for colocation suites, MSPs, hosting environments and enterprise multi-tenant deployments.
With a 42U height, 800mm width, and 1000mm depth, the SafeServ® CX cabinet is built from heavy-duty steel and finished in a durable RAL 9003 polyester powder coat. The design integrates 83% airflow mesh doors, depth-adjustable 19” mounting rails, and segregated cable ingress to support efficient cooling and structured cabling in high-density environments.
Key Features:
-
Three fully isolated colocation compartments for secure multi-tenant hosting
-
High-performance 83% airflow mesh front (single-leaf) and rear (double-leaf) doors
-
Independent 3-pin combination swing handles with single-point locking
-
Front and rear 19” mounting profiles, fully depth adjustable
-
Plain, horizontally split side panels for easier installation and servicing
-
Segregated top and base cable entry ensures controlled routing per tenant
-
Strong, UK-manufactured steel frame for enhanced rigidity
-
Finished in durable RAL 9003 powder coat
-
Supplied with baying kit and levelling feet
Technical Specifications:
-
Height: 42U
-
Width: 800mm
-
Depth: 1000mm
-
Sections / Compartments: 2 x 13U + 1 x 14U
-
Material: Steel
-
Colour: RAL 9003 (white)
-
Finish: Polyester powder-coated
-
Mounting Format: 19-inch
-
Mounting Profiles: Front & rear, depth adjustable
-
Profile Setback: 120mm (front & rear)
-
Front Door: Single-leaf, 83% airflow mesh
-
Rear Doors: Double-leaf, 83% airflow mesh
-
Door Locks: 3-pin combination swing handles, single-point locking
-
Side Panels: Plain, horizontally split, cam-latched
-
Cable Routing: Segregated top and bottom cable entry channels
-
Earthing: Base-mounted copper earth bar
-
Compliance:
-
IEC 60297-3
-
EIA-310-E
-
RoHS
-
REACH
-
ISO9001:2015
