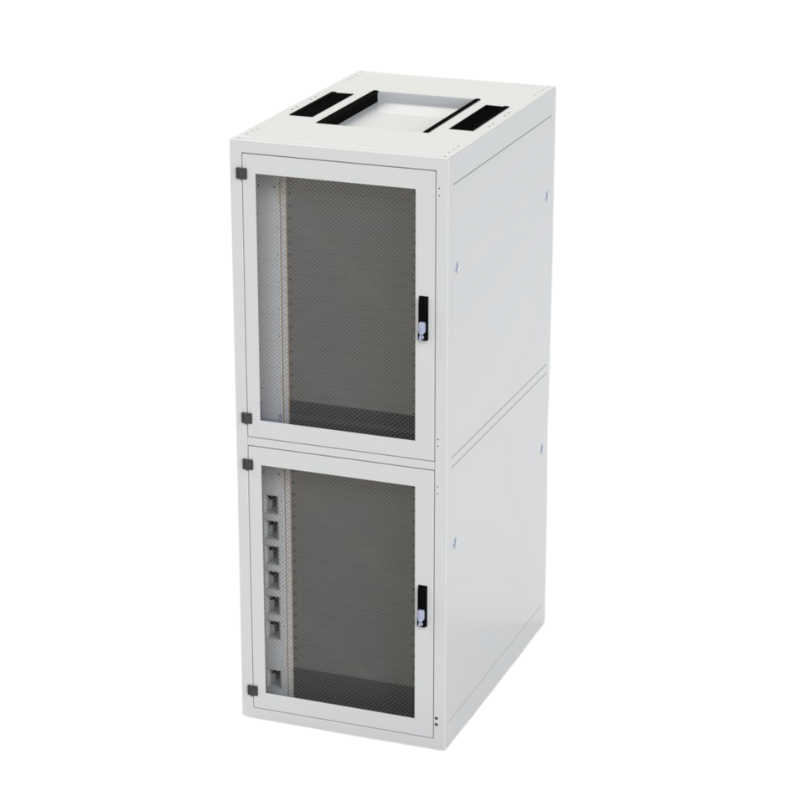

Rainford Two Section Colocation Rack Cabinet – 42U × 800 × 1000
The Rainford SafeServ® CX 42U Two Section Colocation Rack Cabinet is a secure, dual-compartment enclosure designed for multi-tenant data centre environments. With a 42U height, 800mm width, and 1000mm depth, this UK-manufactured cabinet provides two independent 21U compartments, each with fully segregated access, airflow and cable routing—ideal for colocation suites, hosting providers and managed service environments.
Constructed from premium steel and finished in durable RAL 9003 polyester powder coat, the SafeServ® CX delivers exceptional rigidity and performance. The high-airflow 83% mesh doors, depth-adjustable 19” mounting profiles and segregated top/bottom cable entry channels provide precise installation flexibility for high-density equipment.
Key Features:
-
Two fully isolated 21U colocation compartments
-
83% airflow mesh front (single-leaf) and rear (double-leaf) doors
-
Individual 3-pin combination swing handles with single-point locking
-
Fully depth-adjustable front and rear 19" mounting profiles
-
Horizontally split side panels for easy access
-
Base-mounted copper earth bar for equipment earthing
-
Segregated cable entry at top and base
-
Heavy-duty, UK-made steel frame
-
Durable RAL 9003 powder-coated finish
-
Supplied with baying kit and levelling feet
Technical Specifications:
-
Height: 42U
-
Width: 800mm
-
Depth: 1000mm
-
Compartments: 2 × 20U
-
Material: Steel
-
Colour: RAL 9003 (white)
-
Finish: Polyester powder coat
-
Front Door: Single-leaf 83% airflow mesh
-
Rear Doors: Double-leaf 83% airflow mesh
-
Locking: 3-pin combination swing handles, single-point locking
-
Side Panels: Plain, horizontally split, cam-latched
-
Mounting Format: 19"
-
Profiles: Front & rear, depth adjustable
-
Profile Setback: 120mm front / 120mm rear
-
Earthing: Base-mounted copper earth bar
-
Cable Routing: Segregated top and base cable entry channels
-
Compliances: IEC 60297-3, EIA-310-E, RoHS, REACH, ISO9001:2015
