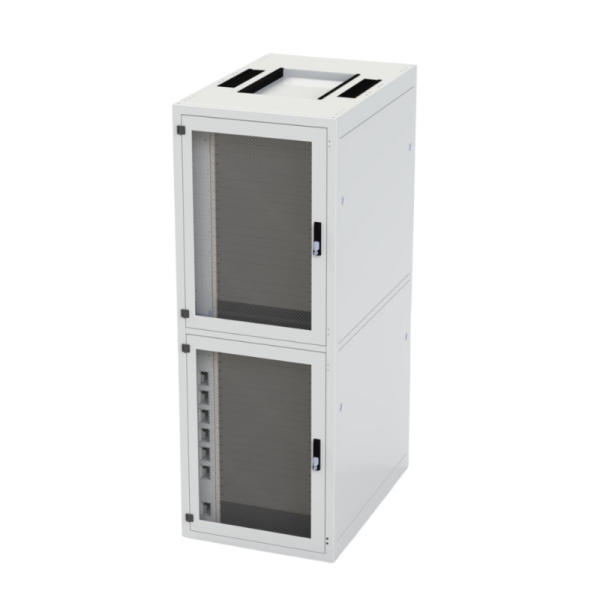

Rainford SafeServ® CX Four Compartment Colocation Rack Cabinet – 42U × 800 × 1200 - White

Rainford Four Section Colocation Rack Cabinet – 42U × 800 × 1200

The Rainford SafeServ® CX 42U Four Section Colocation Rack Cabinet is a premium UK-manufactured, multi-tenant enclosure designed for maximum compartmentalisation and secure hosting within shared data-centre environments. With four fully isolated compartments, each featuring independent access control, airflow and cable routing, this cabinet delivers the highest level of tenant separation for colocation, MSPs, hosting providers and enterprise shared facilities.

Engineered with a 42U height, 800mm width, and 1200mm depth, the SafeServ® CX cabinet provides exceptional rigidity, high-airflow performance and structured cable management. Its 83% perforated mesh doors, depth-adjustable 19" mounting profiles and segregated top and base cable entry systems support efficient high-density deployments while maintaining strict security and cooling standards.

Key Features:

• Four fully isolated compartments for complete multi-tenant separation

• 83% airflow mesh front (single-leaf) and rear (double-leaf) doors

• Individual 3-pin combination swing handles with single-point locking

• Depth-adjustable 19” mounting profiles (front & rear) in each compartment

• Plain, horizontally split side panels for easier installation and service access

• Segregated cable entry at top and base for controlled routing per compartment

• Strong, UK-engineered steel frame for long-term durability

• High-quality RAL 9003 polyester powder-coated finish

• Supplied with baying kit and levelling feet

Technical Specifications:

• Height: 42U

• Width: 800mm

• Depth: 1200mm

• Sections / Compartments: 4 fully isolated sections

• Material: Steel

• Finish: Polyester powder coat

• Colour: RAL 9003 (white)

• Mounting Format: 19-inch

• Mounting Profiles: Front & rear, depth adjustable

• Profile Setback: 120mm (front & rear)

• Front Door: Single-leaf 83% airflow mesh

• Rear Doors: Double-leaf 83% airflow mesh

• Door Locks: 3-pin combination swing handles, single-point locking

• Side Panels: Plain, horizontally split, cam-latched

• Cable Routing: Segregated top and bottom entry channels

• Earthing: Base-mounted copper earth bar

• Compliance:

  • IEC 60297-3

  • EIA-310-E

  • RoHS

  • REACH

  • ISO9001:2015

Included as Standard:

• 3-Pin Combination Swing Handle

• Levelling Feet Kit

• Baying Kit

• Base Mounted Earth Bar Kit

• 2 × Brushed Cable Entry Modules

• Pallet & Packaging Kit
