MDU Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC – Bare End Cca White - 50m

MDU Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC – Bare End Cca White – 50m

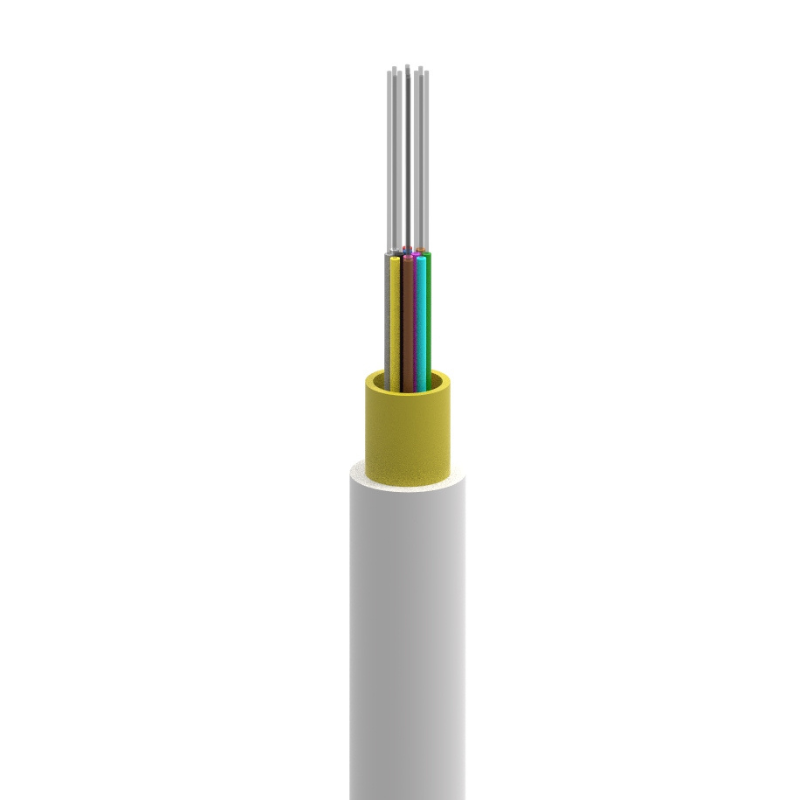

The MDU Discreet Corridor Cable Assembly 12F G657B3 2mm LC/APC – Bare End Cca White – 50m is a high-performance fibre solution designed for discreet routing within multi-dwelling units (MDUs). Engineered for clean and efficient installations, it is ideal for corridor runs, risers and internal building pathways.

Utilising G.657B3 bend-insensitive fibre, this cable delivers exceptional flexibility and minimal bending loss, making it perfectly suited to tight routing environments and confined spaces. Its slim 2mm profile ensures a low-visibility installation while maintaining reliable optical performance. The cable features a FR-LSZH (Flame Retardant Low Smoke Zero Halogen) outer sheath and aramid yarn reinforcement, providing strength, durability and compliance for both indoor and outdoor applications.

Supplied as a 50 metre pre-terminated assembly, it includes LC/APC connectors on one end and a bare end on the other, enabling rapid deployment while maintaining flexibility for termination at the network side.

Key Features:

• 12 fibre (12F) G.657B3 bend-insensitive cable

• 2mm slim diameter for discreet installations

• 50 metre pre-terminated assembly

• LC/APC to bare end configuration

• FR-LSZH outer sheath for fire-safe installations

• Aramid yarn reinforcement for durability

• Suitable for indoor and outdoor use

• CPR Cca compliant

Technical Specifications:

• Product Type: Corridor fibre cable assembly

• Fibre Type: G.657B3 singlemode

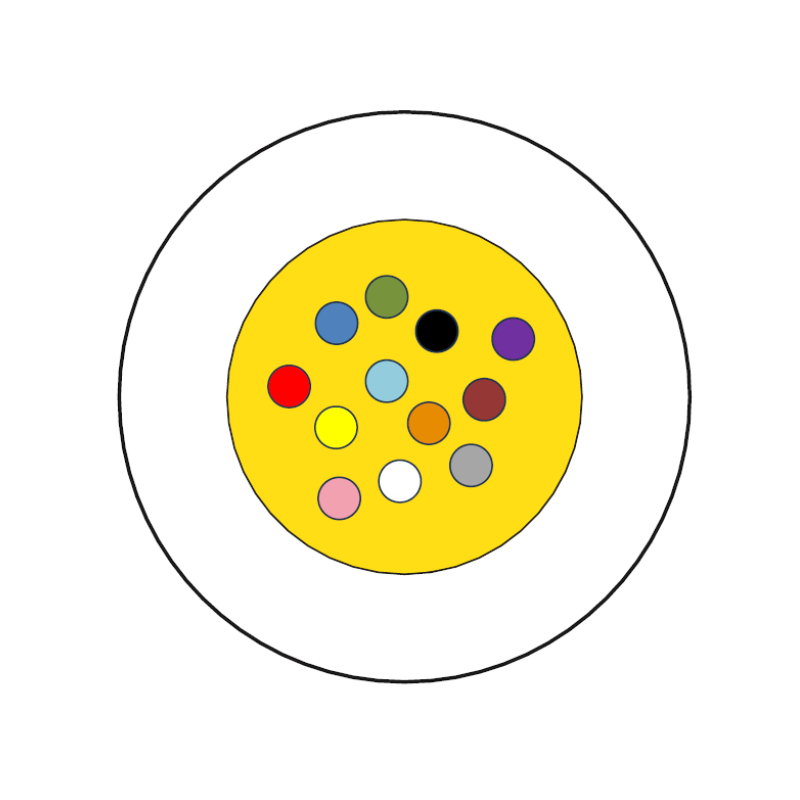

• Fibre Count: 12F

• Cable Diameter: 2.0 mm (discreet corridor format)

• Length: 50 m

• Connector Type: LC/APC (one end) – Bare end (other end)

• Outer Sheath: FR-LSZH (Low Smoke Zero Halogen)

• Strength Member: Aramid yarns

• CPR Rating: Cca s1b d1 a2

• Operating Temperature: -40°C to +70°C

• Installation Temperature: -10°C to +65°C

Applications:

• MDU corridor and riser installations

• Discreet internal fibre routing

• Building entry and distribution networks

• FTTH and FTTx deployments

• Telecom and broadband infrastructure
