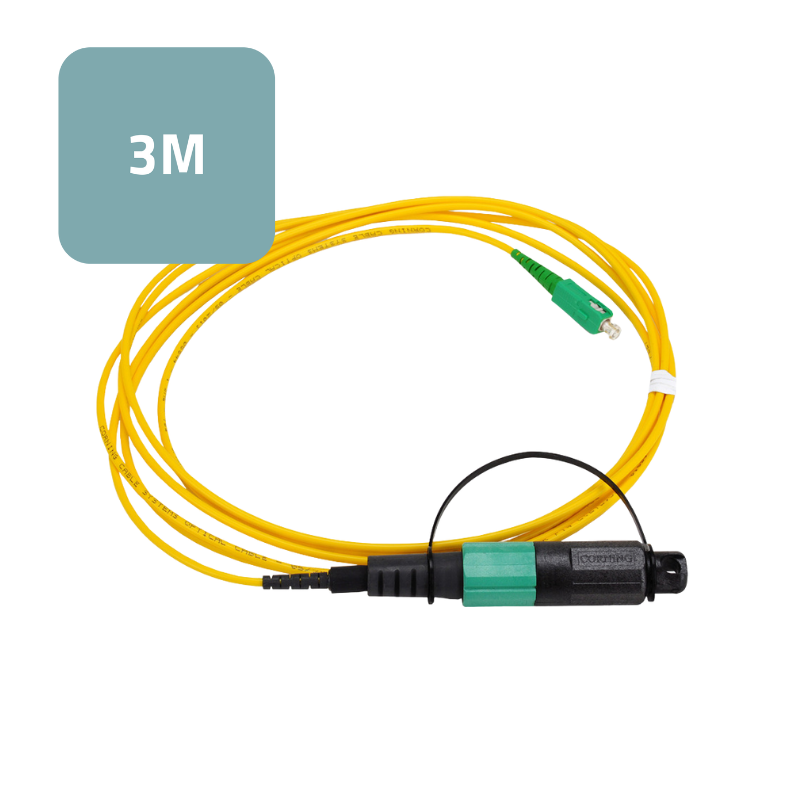

Corning OptiTap Test Jumper
The Corning OptiTap® Test Jumper OS2 SC/APC – 3m is purpose-built for fast, reliable testing of FTTH networks. Featuring a robust OptiTap connector on one end and a precision SC/APC connector on the other, this 3-metre test lead enables seamless access to sealed terminals during installation and maintenance.
Designed for use in challenging outdoor conditions, the jumper utilises G.657.A1 bend-insensitive singlemode fibre to ensure minimal signal loss. The durable housing and factory-terminated connectors make it ideal for high-precision optical loss testing with minimal setup time. Compatible with Corning’s OptiSheath® and OptiTap® terminal systems, this test jumper is an essential tool for network engineers and fibre technicians.
Key Features & Benefits:
-
Length: 3 metres
-
Connectors: OptiTap to SC/APC
-
Fibre Type: OS2 singlemode, G.657.A1
-
Application: Testing of OptiTap terminals and FTTH installations
-
Rugged Build: Designed for outdoor use with sealed weatherproof connectors
-
Operating Temperature: -40°C to +70°C
-
Standards: ITU-T G.652.D / G.657.A1, GR-20, RoHS compliant
