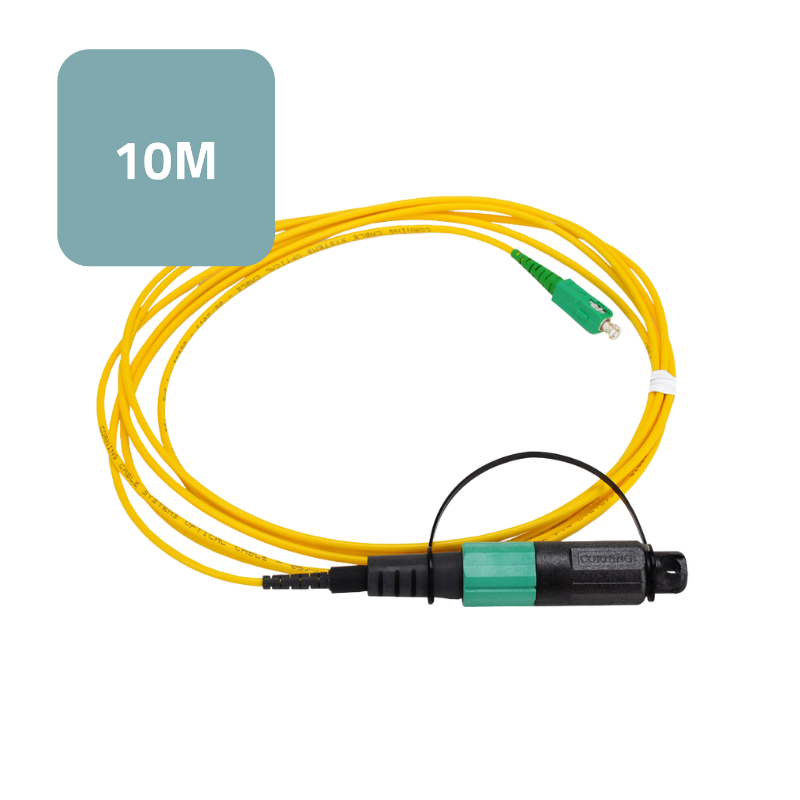

Corning OptiTap Test Jumper
The Corning OptiTap® Test Jumper is a high-performance single-mode OS2 jumper designed for seamless in-field testing of optical networks. This 10-metre jumper features factory-terminated SC/APC connectors at both ends, offering low-loss, reliable connectivity. Built with a 2.9mm ruggedised cable and environmentally sealed hardened connectors, it enables direct connection to optical power meters without requiring access to terminal enclosures.
Ideal for testing OptiSheath® MultiPort or UCAO Terminals, this jumper supports rapid deployment in harsh environments. With compliance to ITU-T G.652.D and RoHS standards, it ensures long-lasting, safe, and standardised operation in FTTH and outdoor optical network applications.
Key Features & Benefits:
-
Length: 10 metres
-
Fibre Type: OS2 Singlemode, 250 µm
-
Connectors: SC/APC to SC/APC
-
Cable Diameter: 2.9 mm
-
Max Attenuation: 0.4 dB/km @ 1310, 1383, 1550 nm
-
Operating Temperature: -40°C to +70°C
-
Rugged Design: Environmentally sealed for outdoor use
-
Applications: Ideal for testing power at terminals without internal access
