Corning OptiTap Test Jumper OS2 SC/UPC - 10m

Corning OptiTap Test Jumper

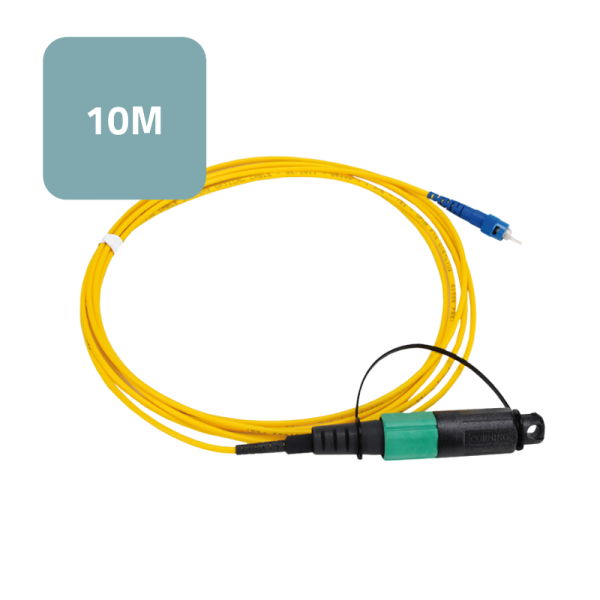

The Corning OptiTap® Test Jumper OS2 SC/UPC – 10m is a ruggedised, singlemode fibre optic jumper designed for field testing of optical terminals in FTTH networks. It features a hardened OptiTap connector on one end and a standard SC/UPC connector on the other, enabling quick connection to optical power meters without needing to access the terminal enclosure.

Manufactured using Corning’s low-loss G.657.A1 fibre and built to withstand harsh outdoor conditions, this 10-metre test lead delivers stable performance across temperature extremes. It’s ideal for technicians performing optical loss measurements and link validation in FTTx deployments using OptiSheath® MultiPort Terminals or similar hardware.

Key Features & Benefits:

• Connector Type: OptiTap to SC/UPC

• Fibre Type: OS2, G.657.A1 singlemode

• Length: 10m

• Cable Diameter: 2.9mm ruggedised outdoor jacket

• Application: Optical testing without terminal access

• Temperature Range: -40°C to +70°C

• Compliance: RoHS, ITU-T G.652.D, GR-20

• Durability: Factory-sealed for weather resistance and reliability
