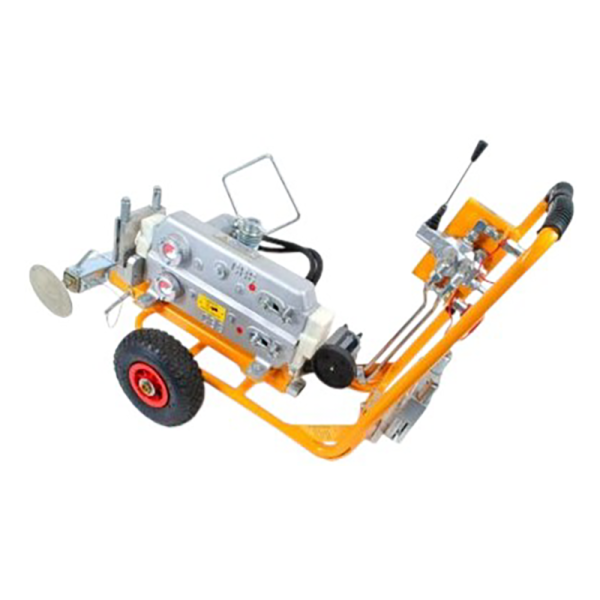

CBS Duct Rod Pusher
The CBS Duct Rod Pusher is a robust and reliable tool engineered to assist with duct rodding operations in underground and confined environments. Designed to deliver efficiency and operator control, the unit enables smooth and consistent pushing or pulling of duct rods, significantly reducing manual effort during cable installation.
Mounted on a heavy-duty, anti-corrosion-treated tubular steel frame, the Duct Rod Pusher combines mobility and durability. It features gel-filled puncture-proof tyres for effortless site movement, while the tilting extendable boom and adjustable chamber clamp ensure flexible use within underground structures. Hydraulic controls are conveniently mounted on the frame, allowing safe and precise operation in any field environment.
This powerful system enhances productivity, reduces strain, and ensures reliable performance when used with CBS duct rods across telecom, fibre, and utility infrastructure applications.
Key Features:
-
Hydraulic rod pushing system for smooth and controlled operation
-
Spring-loaded self-centring fail-safe lever for operator safety
-
Tilting extendable boom with 1-metre reach for chamber access
-
Extendable chamber clamp (400–800mm) for secure attachment to sidewalls
-
Split body design allows easy removal of the duct rod
-
Disc spring-controlled screw clamp engages drive belts for positive grip
-
Moulded profiled drive belts for efficient power transfer
-
Measuring counter with reset lever for accurate rod length tracking
-
Mounted on anti-corrosion-treated steel frame with puncture-proof tyres for easy transport
-
Low-maintenance design suitable for demanding field environments
Technical Specifications:
-
Rod Diameter Range: 14–25mm
-
Installation Speed: 0–30m/min
-
Pushing/Pulling Capacity: 220kg @ 60 bar
-
Length: 1050mm
-
Width: 700mm
-
Height: 760mm
-
Weight: 53kg
-
Frame Material: Anti-corrosion treated tubular steel
-
Tyres: Gel-filled, puncture-proof
-
Drive Type: Hydraulic
-
Clamp Range: 400–800mm
