CBS Tornado Plus Fibre Cable Blowing Machine C-1250

CBS Tornado Plus Fibre Cable Blowing Machine C-1250

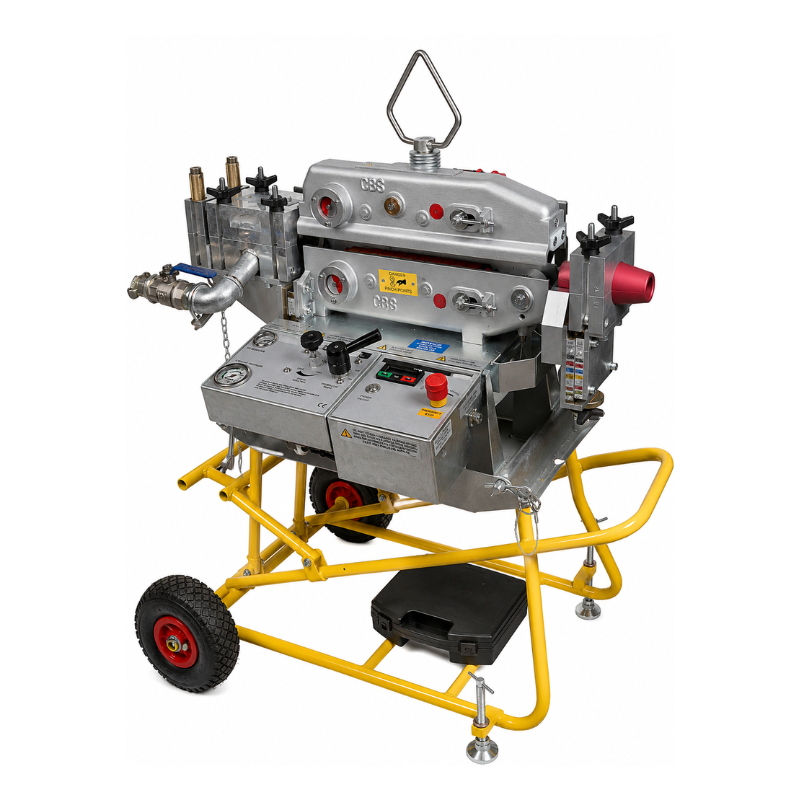

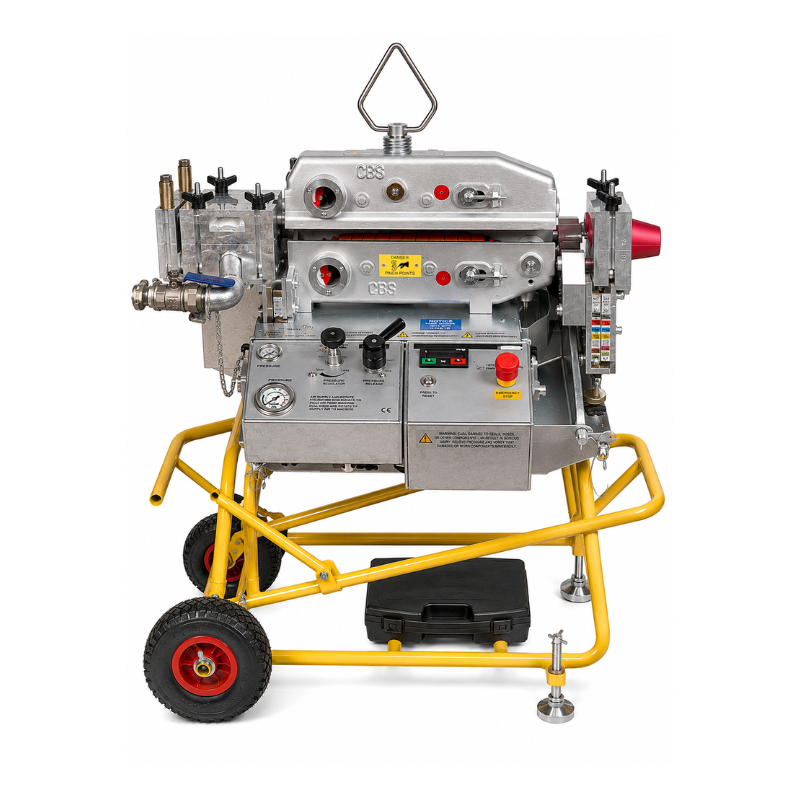

The CBS Tornado Plus Fibre Cable Blowing Machine C-1250 is a professional hydraulic cable installation system engineered for efficient deployment of fibre optic cable into duct infrastructure.

Designed for telecom and fibre network construction environments, the Tornado Plus combines robust hydraulic drive performance with advanced cable handling features to provide controlled and reliable cable installation capability across demanding site conditions.

Manufactured with a durable cast aluminium cable feeder unit and lightweight anti-corrosion treated tubular steel chassis, the system is engineered to withstand intensive deployment operations while maintaining portability and ease of handling.

The hydraulically powered cable feeder enables controlled cable insertion through profiled polyurethane drive belts, while adjustable drive belt tensioning and integrated hydraulic pressure monitoring provide optimised installation performance. An adjustable frame design allows the machine to tilt up to 30 degrees, helping reduce cable and duct bending during installation while adjustable rear legs improve stability across uneven terrain. Designed with operator usability in mind, the Tornado Plus features integrated speed monitoring, cable length recording and emergency controls, supporting efficient fibre deployment across telecom and broadband infrastructure projects.

Key Features:

• Professional hydraulic fibre cable blowing machine

• Hydraulically powered cable feeder system

• Cast aluminium cable feeder construction

• Adjustable drive belt speed control

• Combined cable length and speed monitoring

• Hydraulic pressure monitoring system

• Air pressure monitoring dial

• Emergency stop functionality

• Automatic air exhaust system

• Adjustable cable feeder belt tensioning

• Profiled polyurethane moulded drive belts

• Adjustable frame tilt up to 30°

• Adjustable rear legs for uneven terrain

• Lightweight anti-corrosion tubular steel chassis

• Front-mounted wheels for manoeuvrability

• System relief valve fitted as standard

Technical Specifications:

Control System

• Power On / Off control

• Emergency stop button

• Reset button

• Hydraulic On / Off control valve

• Air supply control with automatic exhaust function

Monitoring Functions

• Combined cable length counter:

  • Metres / Feet recording

• Cable speed display:

  • Metres per minute / Feet per minute

• Air pressure monitoring dial

• Hydraulic pressure monitoring dial

Cable Feeder System:

• Construction Material:

  • Cast aluminium

• Drive Type:

  • Hydraulic powered

• Belt Material:

  • Profiled moulded polyurethane

• Adjustable chain drive belt tensioners

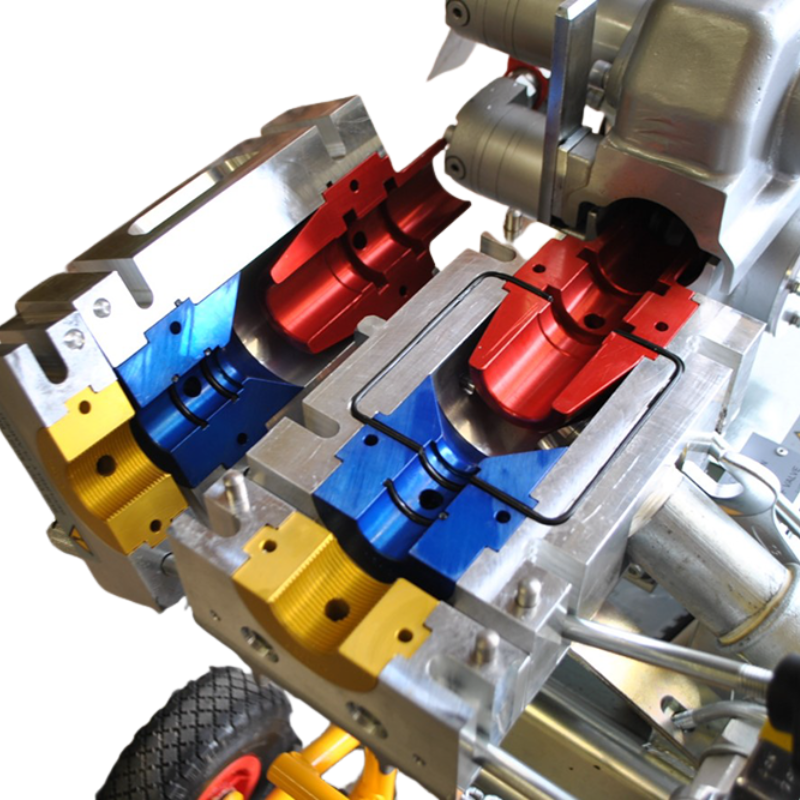

• Split feeder design for simplified cable insertion

• Integrated hydraulic relief valve

Chassis Construction:

• Lightweight anti-corrosion tubular steel frame

• Front mounted transport wheels

• Adjustable machine tilt:

  • Up to 30°

• Adjustable rear support legs for uneven terrain

Applications:

• Fibre optic cable installation

• Telecom infrastructure deployment

• Fibre network construction

• Broadband infrastructure installation

• Underground duct cable deployment

• Utility communications infrastructure
