CBS Airstream Fibre Cable Blowing Machine C-1700

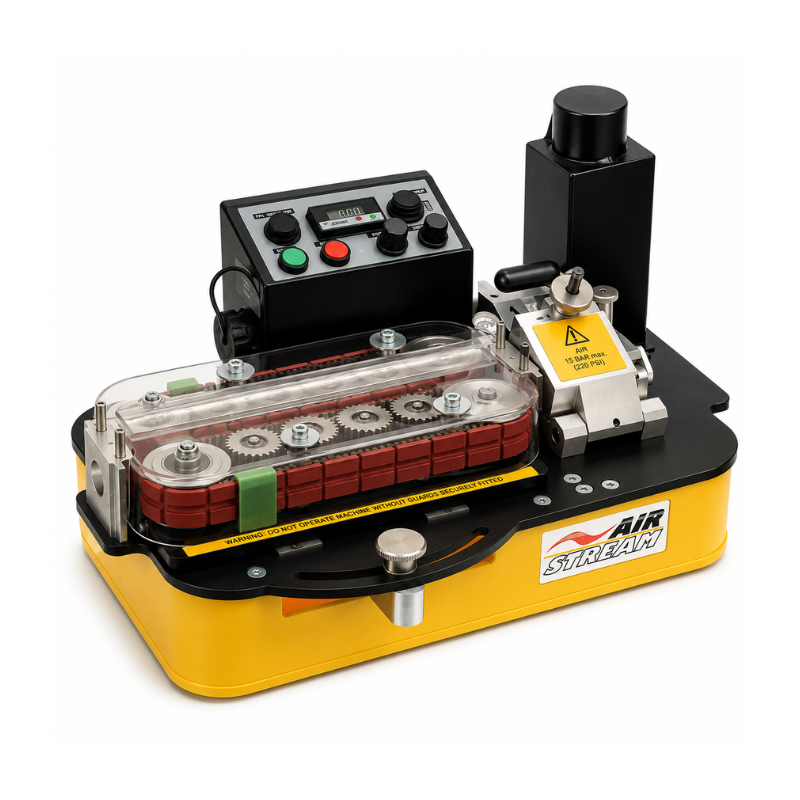

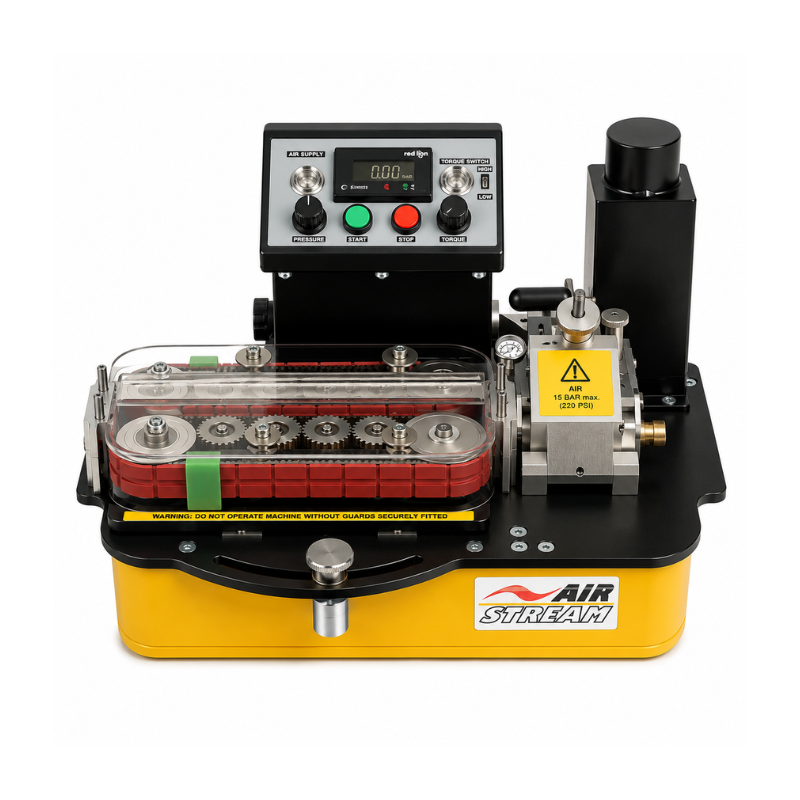

CBS Airstream Cable Blowing Machine C-1700

The CBS Airstream Cable Blowing Machine C-1700 is a professional cable installation system engineered for efficient deployment of fibre optic and telecom cables into duct infrastructure.

Designed for high-performance cable blowing applications, the C-1700 incorporates automatic cable centralisation technology alongside synchronous high-grip profiled drive belts to provide controlled and reliable cable installation performance across a wide range of cable and duct sizes.

Its compact tabletop design combines ergonomic controls, digital monitoring capability and lightweight portability, making the system ideal for telecom contractors, fibre deployment teams and infrastructure installation environments.

The integrated digital servo motor drive system provides adjustable torque and speed control, enabling operators to optimise performance for varying installation conditions while maintaining cable protection throughout the installation process. Featuring digital cable speed and length monitoring, automatic stop functionality when an air stone is fitted and single-person operation capability, the C-1700 delivers a professional solution for fibre optic and telecom network deployment projects.

Key Features:

• Automatic cable centralisation system

• Synchronous high-grip profiled drive belts

• Digital servo motor drive system

• Forward and reverse operation

• Variable speed and torque adjustment

• Digital cable speed monitoring

• Digital cable length monitoring

• Single-person operation capability

• Auto stop functionality when air stone fitted

• Integral air valve and pressure gauge

• Lightweight compact tabletop design

• Easy cable threading system

• Polycarbonate safety guarding

• Low maintenance requirements

• Low operational noise levels

• Supplied with travel case

Technical Specifications:

Cable Compatibility

• Cable Diameter: 2.5mm to 11mm

Tube Compatibility

• Tube Outside Diameter: 5mm to 18mm

Installation Performance

• Cable Speed Adjustable:

  • 0–80m/min

  • 0–260ft/min

Air Supply Requirements

• Air Pressure:

  • 10–15 Bar

  • 145–215 PSI

Electrical Requirements

• Power Supply:

  • 110V / 220V AC

Machine Dimensions

• Width: 300mm

• Length: 460mm

• Height: 270mm

Weight

• Net Weight: 14kg (31lbs)

Applications:

• Fibre optic cable installation

• Telecom infrastructure deployment

• Fibre network construction

• Duct cable installation projects

• Broadband infrastructure installation

• Utility cable deployment
