CBS Accelair 3 Blowing Fibre Machine UK Kit C-1800-UK

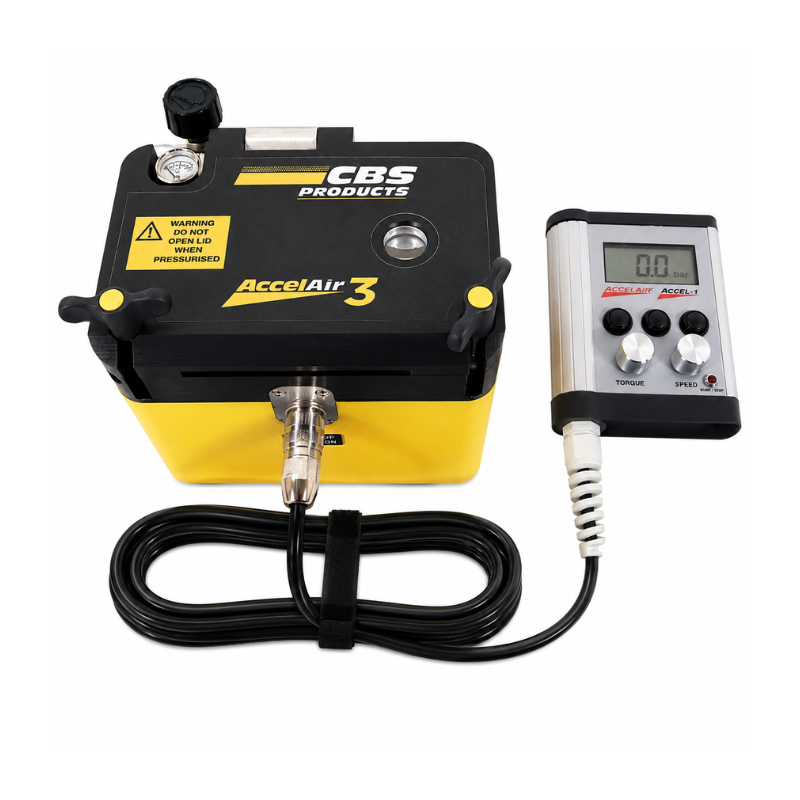

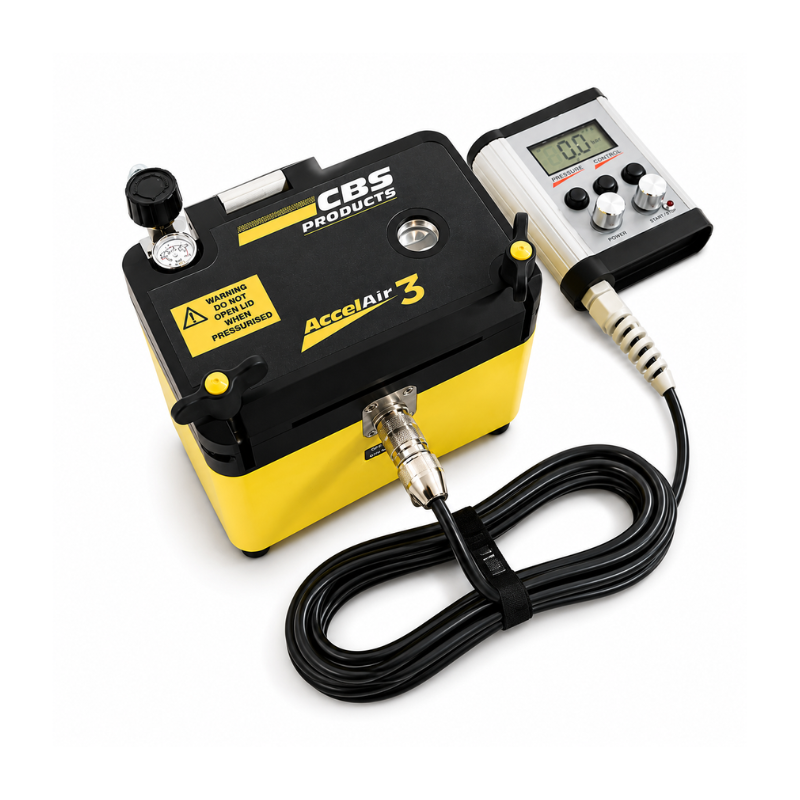

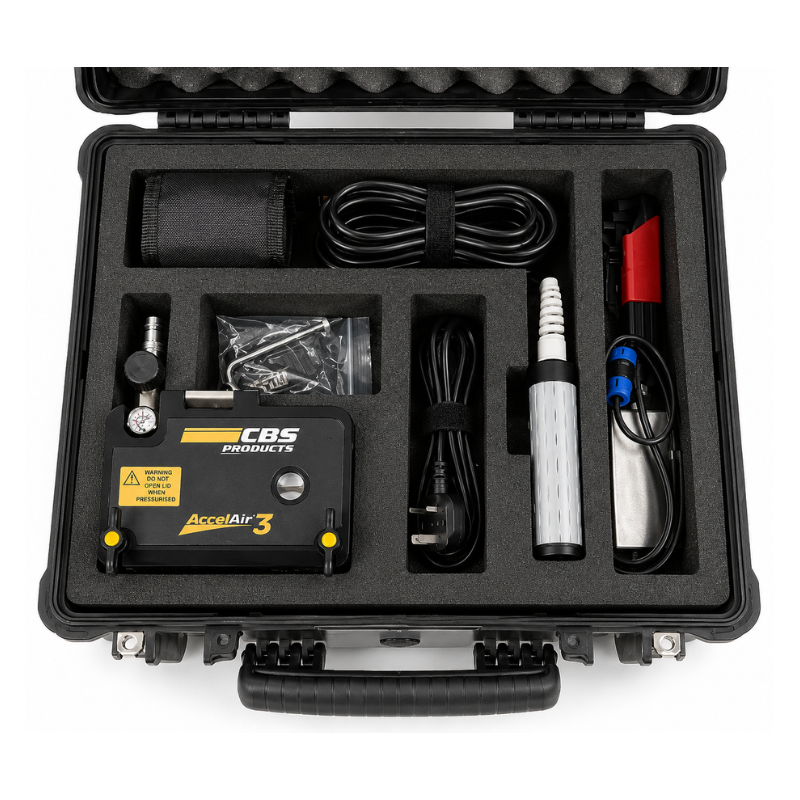

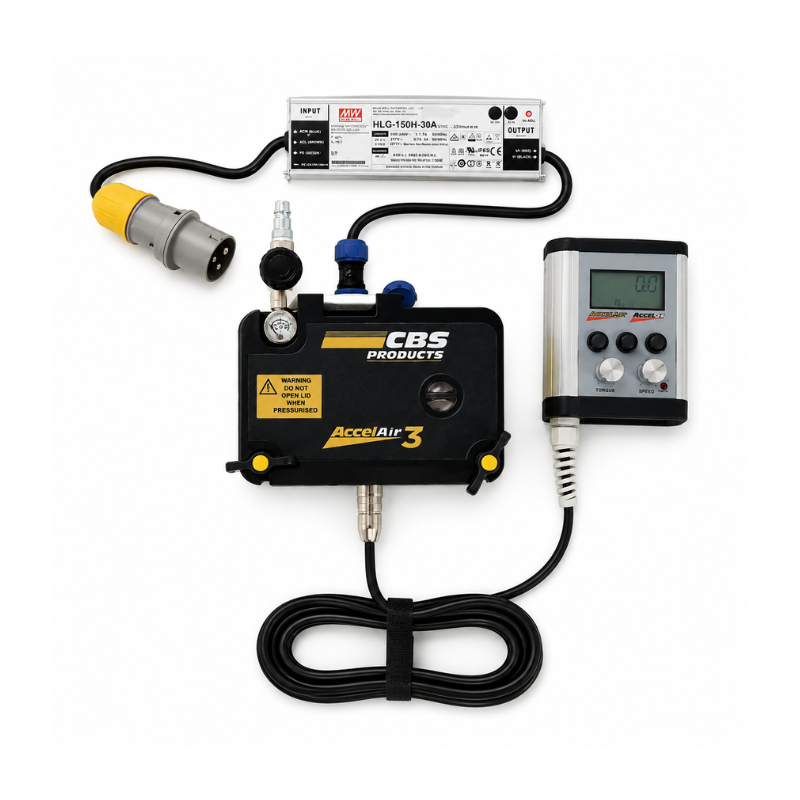

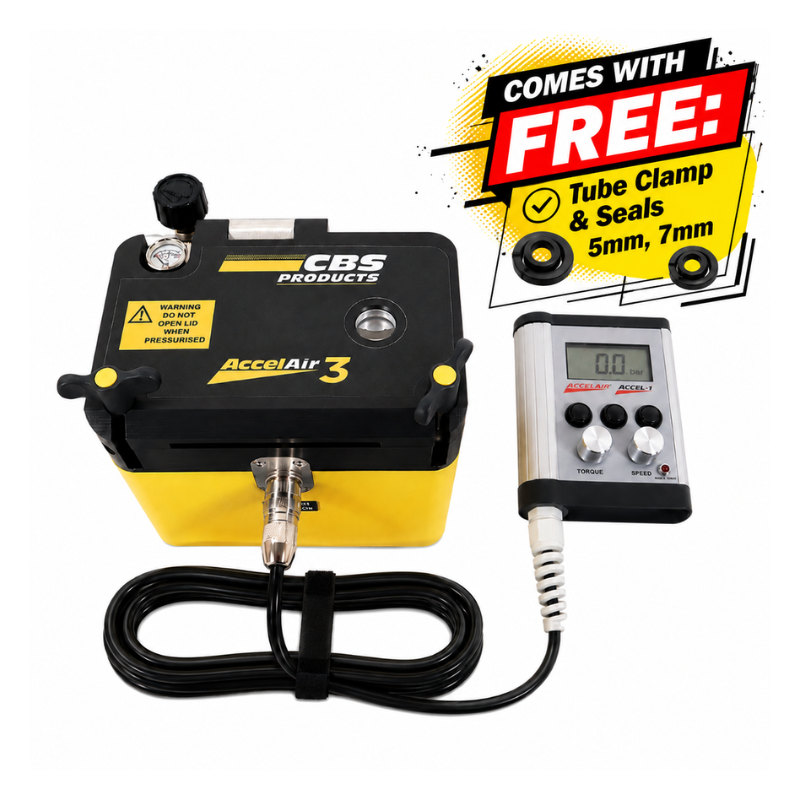

CBS AccelAir 3 Blowing Fibre Machine UK Kit

The CBS AccelAir 3 Blowing Fibre Machine UK Kit is a professional fibre blowing system designed for the rapid and controlled installation of fibre optic cable into microduct infrastructure.

Engineered for telecom and fibre deployment environments, the AccelAir 3 delivers precise fibre installation performance across a wide range of fibre and tube sizes while providing advanced automation and buckle detection functionality to help protect fibre during installation.

The system supports fibre compatibility up to 1.6mm with buckle protection enabled and up to 5mm without buckle protection, providing flexibility across multiple network deployment applications.

Featuring an intelligent self-regulating buckle mode, remote user interface and integrated backlit display, operators benefit from clear real-time information including fibre distance, installation speed, torque settings and fibre status. The compact and lightweight machine design supports field portability while maintaining professional fibre installation capability across telecom, FTTX and broadband infrastructure projects.

Key Features:

• Professional fibre optic blowing machine

• Fibre compatibility up to 1.6mm with buckle protection

• Fibre compatibility up to 5mm without buckle protection

• Compatible with tube sizes 3mm to 12mm

• Blowing speeds up to 100 metres per minute

• Intelligent buckle detection functionality

• Self-regulating automation in buckle mode

• Remote user interface with backlit display

• Real-time installation monitoring

• Lightweight and portable machine design

• Universal mains power supply included

• Battery pack and vehicle adaptor available upon request

Technical Specifications:

Fibre Compatibility

• Up to 1.6mm with buckle protection

• Up to 5mm without buckle protection

Blowing Speed

• 0–100 metres per minute without buckle detection

• 0–50 metres per minute with buckle detection

Compatible Tube Sizes

• 3mm to 12mm

Automation

• Self-regulating operation in buckle mode

Air Supply

• Maximum working pressure: 15 Bar

• Requires suitable air conditioning / drying system

Electrical Supply

• Universal mains power supply supplied as standard

• Input:

  • 90–264V AC

  • 47–63Hz

  • 127–370V DC

• Output:

  • 30V DC

  • 5A

Control Interface

• Remote user interface with backlit display

• Displays:

  • Current distance

  • Installation speed

  • Torque setting

  • Fibre status

Machine Dimensions

• Length: 184mm

• Width: 120mm

• Height: 166mm

• Weight: 3kg

Case Dimensions

• Length: 480mm

• Width: 430mm

• Height: 220mm

• Case Weight: 12kg

Applications:

• Fibre optic network installation

• FTTX infrastructure deployment

• Microduct fibre installation

• Broadband network construction

• Telecom infrastructure projects

• Fibre access network deployment
