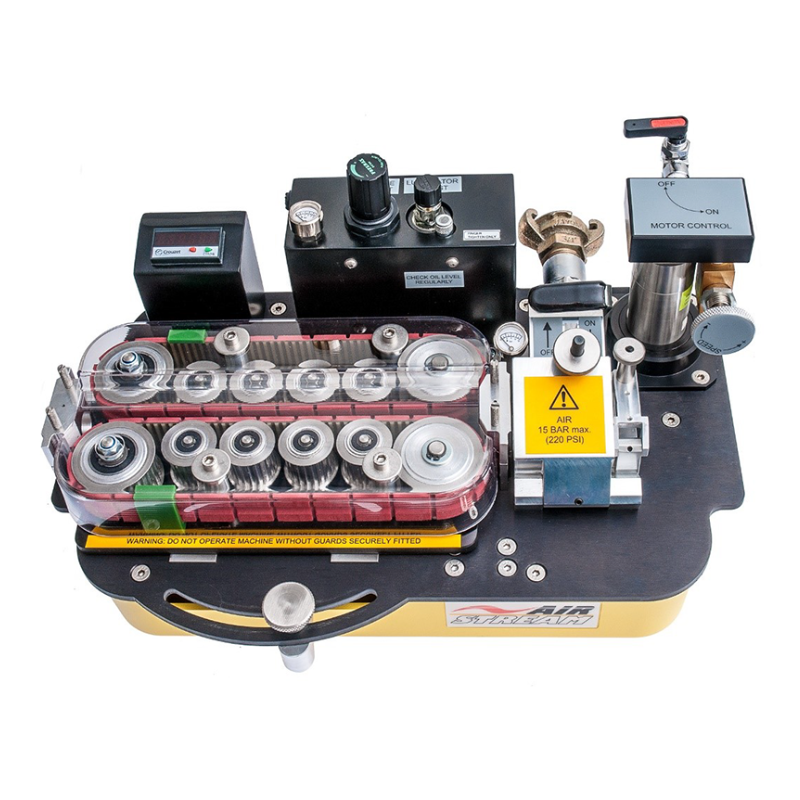

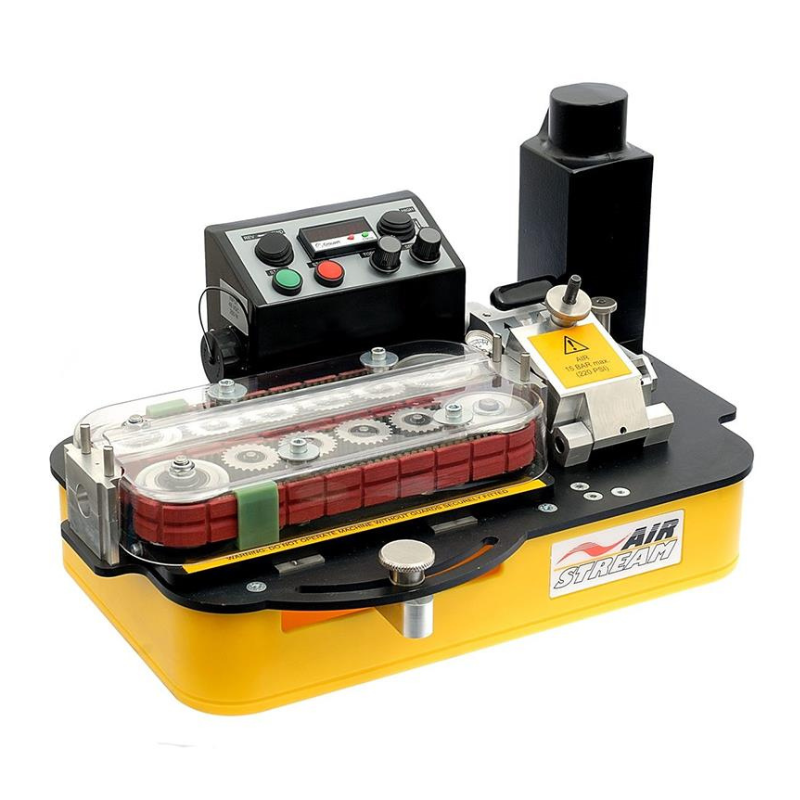

CBS Airstream Cable Blowing Machine

Designed to maximise protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed.
Product code: W2254
 Call or Request Quote
(0)
Product attachments Product attachments
Request for quote

Description

Description:


Designed to install cable sizes of 2.5-11mm into tube sizes of 5-18mm.


Product Features:
  • Automatic Cable Centralisation
  • Synchronous high grip profiled drive belts
  • Tabletop design with ergonomic controls for ease of operation
  • Forward and reverse
  • Variable torque and speed controls
  • Digital servo motor drive system
  • Single person operation
  • Digital cable speed and length monitoring
  • Auto stop facility when air stone fitted
  • Integral air valve and pressure gauge
  • Easy cable threading
  • Polycarbonate safety guarding
  • Lightweight and compact
  • Low maintenance
  • Low noise levels
  • Travel case
  • Tool kit



Technical Specification:

  • Cable Diameter: 2.5 to 11mm
  • Tube Size (Outside Dia): 5 to 18mm
  • Cable Speed (Adjustable): (0-80m/min) (0-260 ft/min)
  • Air Pressure: 10-15 Bar (145-215 psi)
  • Power Requirement: 110/220 Volt AC
  • Width: 300mm (11.8”)
  • Length: 460mm (18”)
  • Height: 270mm (10.6”)
  • Net Weight: 14kg (31 lbs.)

Technical characteristics

  • Product model
  • W2254
  • Product code
  • W2254
  • MPN
  • C-1700
