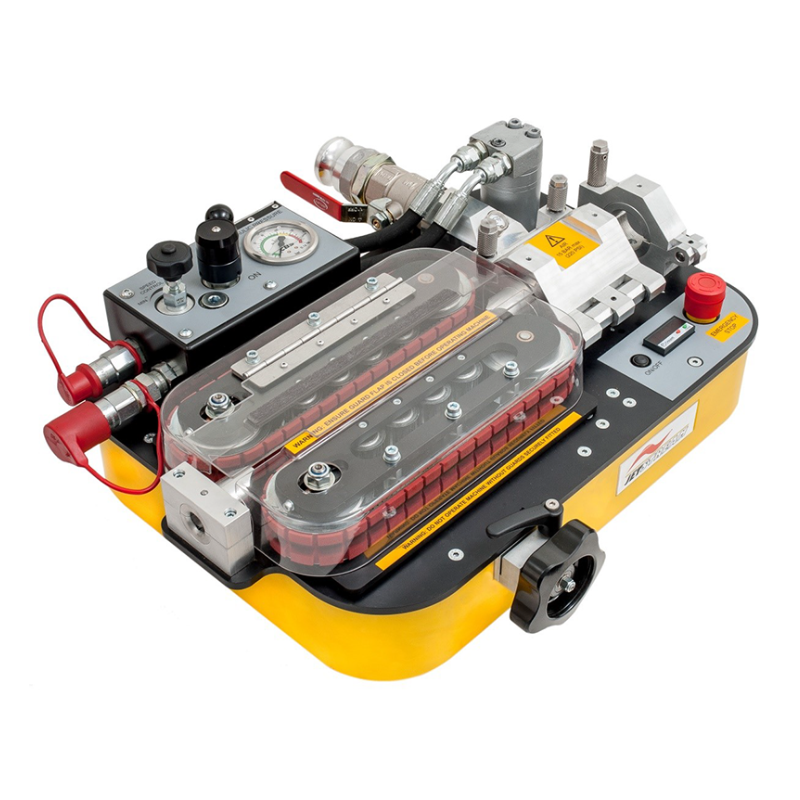

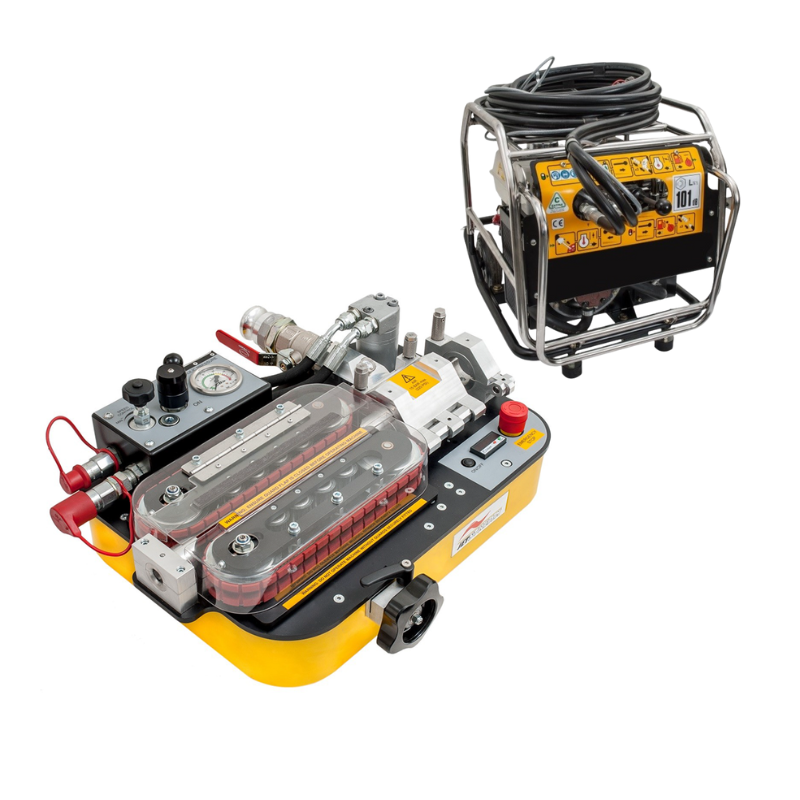

CBS Cable Blowing Machine JetStream UK Kit
Introducing the JetStream Cable Blowing Machine, meticulously engineered to deliver unmatched cable protection, performance, and reliability. This Cable Blowing Machine UK solution is powered by a robust hydraulic drive system, ensuring maximum cable safety and efficiency during installation.

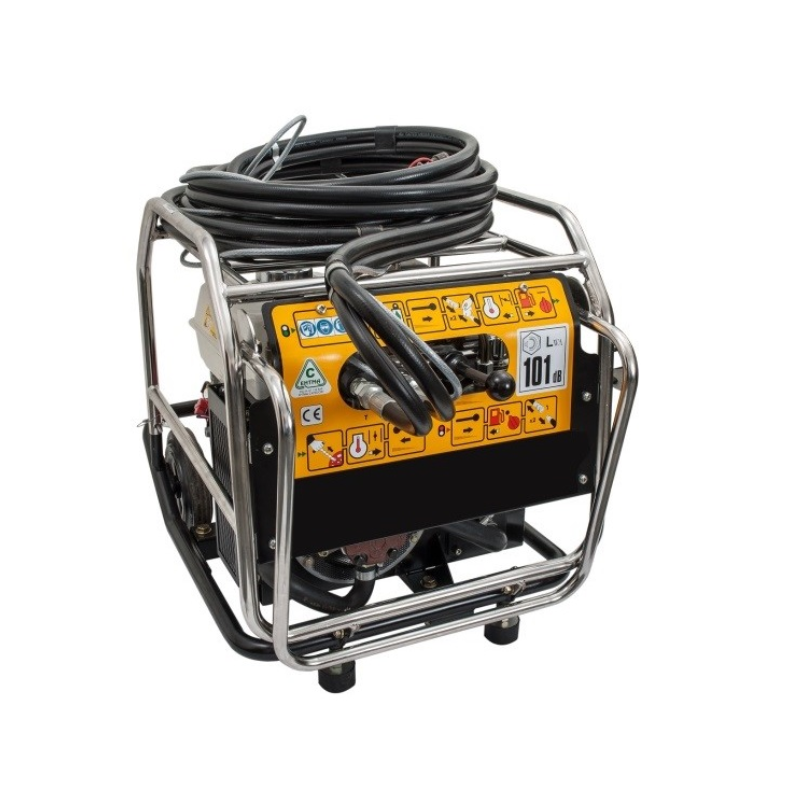

The profiled double drive belt system, propelled by a single 32cc hydraulic motor, guarantees smooth and precise cable blowing, even in challenging environments. With a proven power pack at its core, the JetStream maintains consistent performance for seamless operations, making it an essential tool in your Cable Installation Equipment arsenal.
Key Features:
-
Automatic cable centralisation for consistent alignment
-
High-grip, synchronous double drive belts for reliable traction
-
Table-top design for easy operation and setup
-
Variable speed control for adaptable installation performance
-
Single-person operation for improved efficiency
-
Digital display for real-time cable speed and length monitoring
-
Integral air valve and pressure gauge for controlled airflow
-
Quick and easy cable threading process
-
Durable polycarbonate safety guard for operator protection
-
Low-maintenance design for long service life
-
Supplied with wheeled transport case and tool kit
Technical Specifications:
-
Cable Range: 4–20mm
-
Duct Range: 12–50mm
-
Cable Speed: 85m/min
-
Pushing Force: 600N
-
Max Air Pressure: 15 bar
-
Drive Media: Hydraulic
-
Drive Type: Profiled Belt
-
Drive Orientation: Horizontal
-
Cable Speed Measurement: Proximity Switch
-
Dimensions (L x W x H): 700 x 590 x 550mm
-
Weight: 60kg
