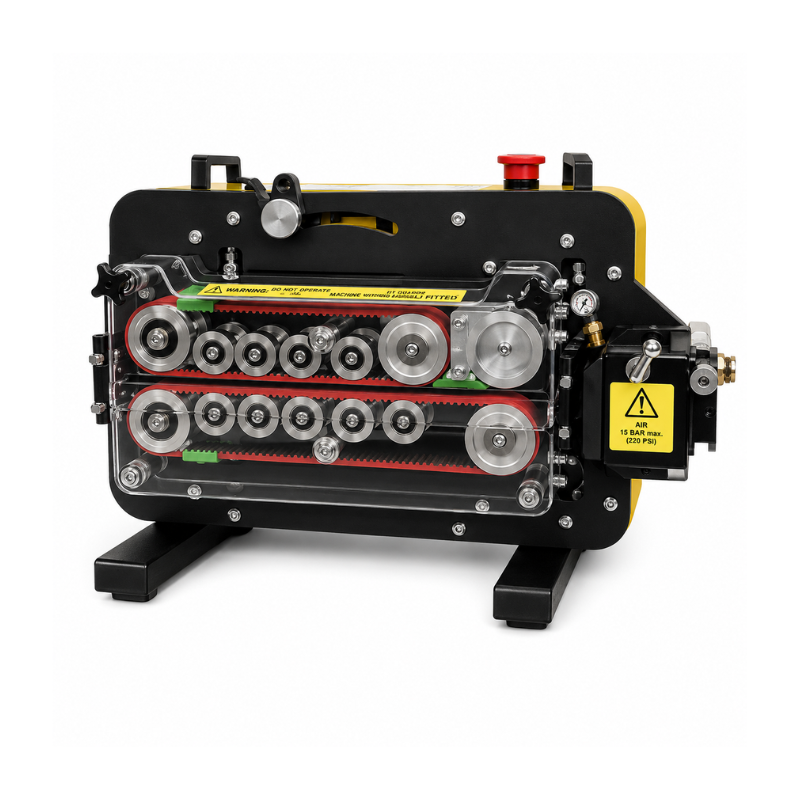

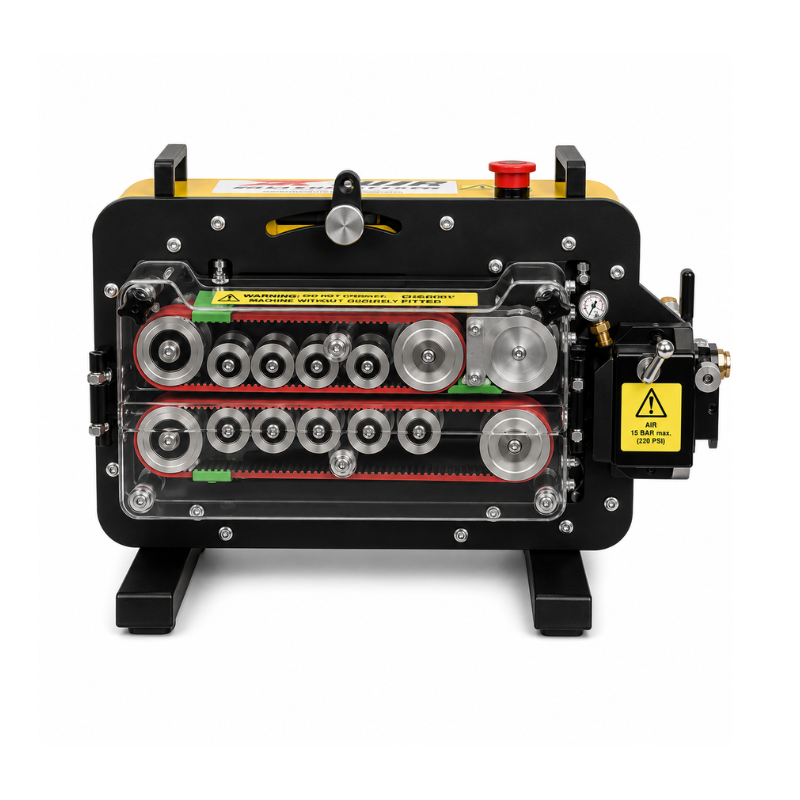

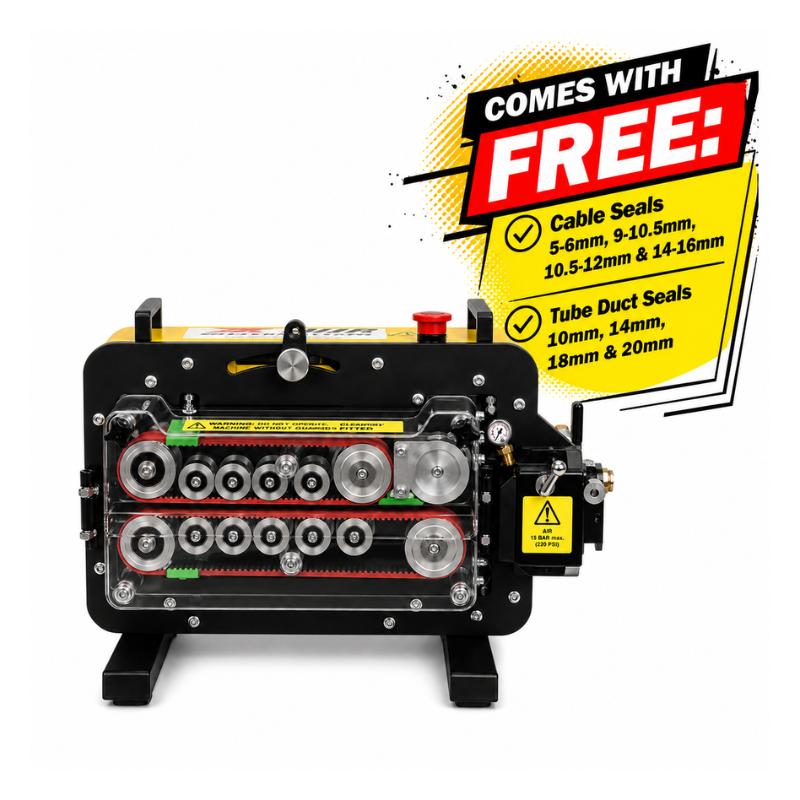

CBS Cable Blowing Machine Hurricane UK Kit C-1750-UK

CBS Cable Blowing Machine Hurricane UK Kit C-1750-UK

The CBS Hurricane UK Kit C-1750-UK Cable Blowing Machine is a high-performance professional cable installation system engineered for efficient deployment of fibre optic and telecom cables into duct infrastructure.

Designed for demanding network construction environments, the Hurricane C-1750-UK combines automatic cable centralisation technology, high-grip synchronous drive belts and advanced digital controls to deliver reliable and consistent cable installation performance across a wide range of cable and duct sizes.

Its ergonomic vertical machine design improves accessibility and operational efficiency, while remote variable torque and speed control allows installers to optimise installation performance based on cable and duct conditions. The integrated digital servo motor drive system supports precise cable handling while advanced monitoring and logging capabilities provide valuable installation insights including speed, force, distance, GPS location and environmental conditions.

Designed for single-person operation, the Hurricane UK Kit incorporates digital cable monitoring, automatic stop functionality and low-maintenance operation, making it an ideal solution for telecom contractors, fibre network installers and broadband infrastructure deployment teams.

Key Features:

• Automatic cable centralisation system

• Synchronous high-grip profiled drive belts

• Ergonomic vertical machine design

• Forward and reverse operation

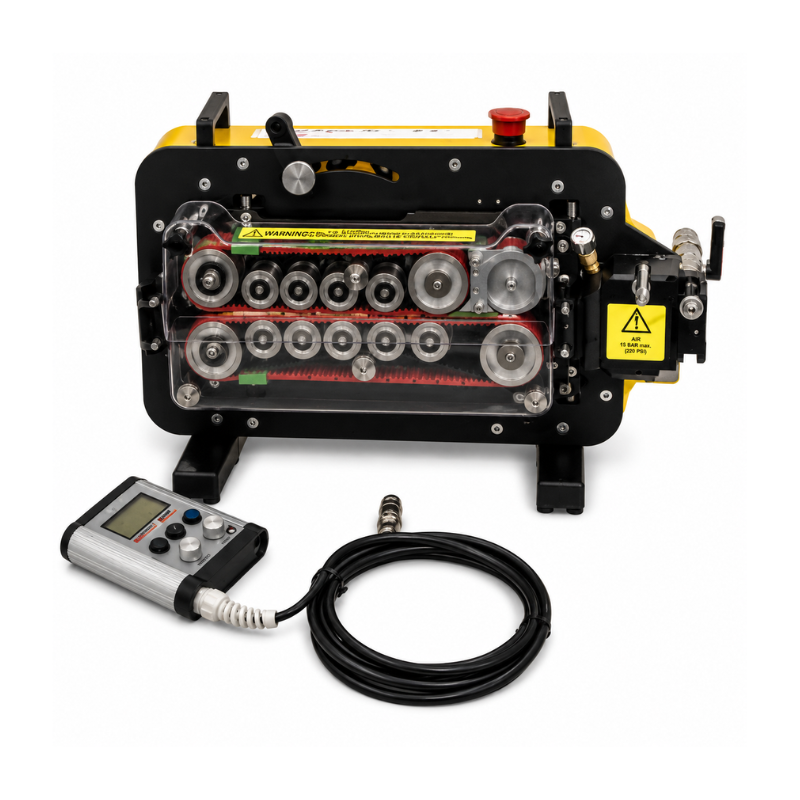

• Variable torque and speed controls via remote interface

• Digital servo motor drive system

• Single-person operation capability

• Digital cable speed monitoring

• Digital cable length monitoring

• Advanced installation data logging system

• GPS location and environmental monitoring capability

• Auto stop functionality when air stone fitted

• Integral air valve and pressure gauge

• Easy cable threading system

• Polycarbonate safety guarding

• Lightweight compact design

• Low maintenance requirements

• Low operational noise levels

• Supplied with travel case

Technical Specifications:

Cable Compatibility

• Cable Diameter: 2.5mm to 16mm

Tube Compatibility

• Tube Outside Diameter: 5mm to 25mm

Installation Performance

• Cable Speed Adjustable:

  • 0–85m/min

• Maximum Pushing Force:

  • 400N

Air Supply Requirements

• Maximum Air Pressure:

  • 15 Bar

Electrical Requirements

• Power Supply:

  • 110V / 220V AC

Machine Dimensions

• Length: 550mm

• Width: 310mm

• Height: 350mm

Weight

• Machine Weight:

  • 24kg

• Full Kit Weight (Including Case):

  • 51.5kg

Advanced Monitoring Capability:

Integrated data logging system measures:

• Installation speed

• Cable pushing force

• Installed distance

• GPS location

• Environmental operating conditions

Applications:

• Fibre optic cable installation

• Telecom infrastructure deployment

• Fibre network construction

• Broadband network installation

• Duct cable deployment projects

• Utility communications infrastructure
