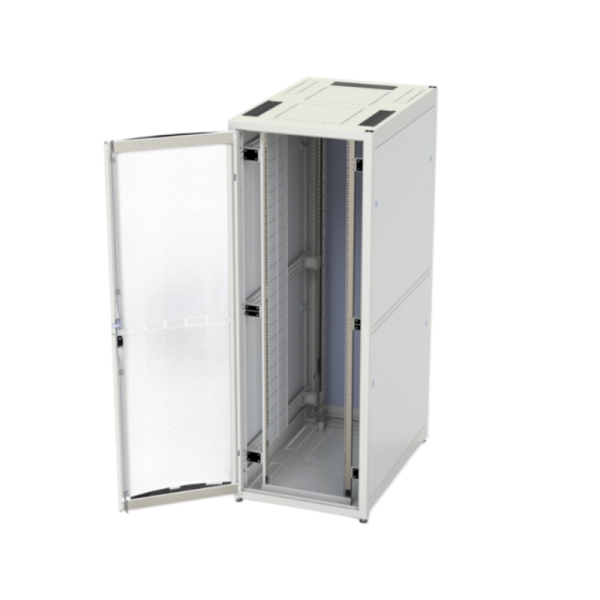

Rainford Server Rack Cabinet (Curved Door, Split Sides) – 47U × 800 × 1000
The Rainford SafeServ® SX 47U × 800 × 1000 Server Rack Cabinet is a high-performance, UK-manufactured enclosure engineered for demanding data-centre, server, and network infrastructure environments. With its signature curved 83% airflow mesh front door and horizontally split side panels, this cabinet provides exceptional cooling efficiency, secure access, and easy serviceability for high-density installations.
Designed to meet modern data-centre standards, the SafeServ® SX range features heavy-duty steel construction, fully adjustable 19” mounting profiles, excellent cable management options, and a premium RAL 9003 powder-coated finish. The 1000mm depth model offers a compact footprint while still supporting full-depth server and switching hardware.
Key Features:
-
Curved 83% airflow mesh front door for enhanced thermal performance
-
Double-leaf 83% airflow mesh rear doors for optimal ventilation
-
Split (horizontally halved) side panels for clean, easy access during installation
-
Fully adjustable front and rear 19" mounting profiles
-
Keyed swing handle with 3-point locking for secure access
-
Three brushed cable-entry apertures on the top panel
-
Base-mounted copper earth bar for full equipment grounding
-
High-strength steel construction with RAL 9003 polyester powder-coat
-
Supplied with baying kit and levelling feet
Technical Specifications:
-
Height: 47U / 2198mm
-
Width: 800mm
-
Depth: 1000mm
-
Material: Powder-coated steel
-
Colour: RAL 9003 (white)
-
Front Door: Curved, single-leaf, 83% airflow mesh
-
Rear Doors: Double-leaf, flat, 83% airflow mesh
-
Door Locking: Keyed swing handle with 3-point locking
-
Side Panels: Plain, horizontally split, cam-latched
-
Mounting Profiles: Front & rear 19", depth adjustable
-
Profile Setback: 120mm (front) / 120mm (rear)
-
Cable Access: 3 × brushed top-panel cable entry ports
-
Earthing: Base-mounted copper earth bar
-
Compliance & Standards:
-
IEC 60297-3
-
EIA-310-E
-
RoHS
-
REACH
-
ISO9001:2015
-
Included Accessories: Baying kit, levelling feet
|
