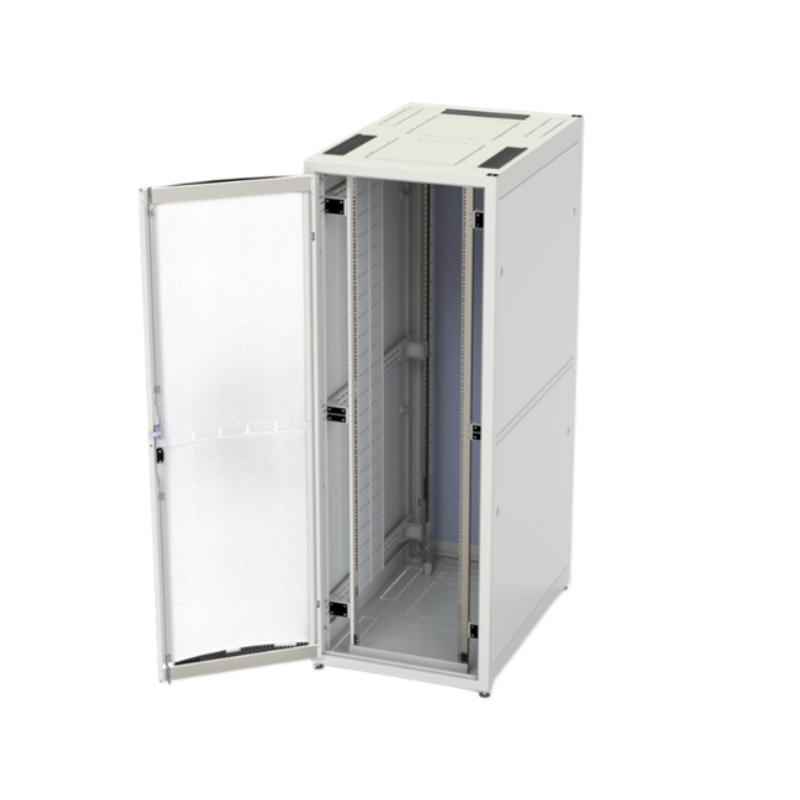

Rainford Server Rack Cabinet (Curved Door, Split Sides) – 47U × 600 × 1000
The Rainford SafeServ® SX 47U × 600 × 1000 Server Rack Cabinet is a high-performance, UK-engineered data-centre enclosure designed for server, switching and network infrastructure environments where a narrower footprint and high airflow are essential. Featuring a premium curved 83% mesh front door and horizontally split side panels, this cabinet maximises cooling efficiency, access control and ease of maintenance—even in compact server room layouts.
Built from high-grade steel and finished in RAL 9003 powder-coat, the SafeServ® SX range offers exceptional rigidity, cooling performance and long-term durability. The 1000mm depth model provides efficient equipment support while maintaining a space-saving footprint, perfect for limited-depth racks or corridor-constrained data-centre designs.
Key Features:
-
Curved 83% airflow mesh front door for superior cooling
-
Double-leaf 83% mesh rear doors for balanced exhaust airflow
-
Horizontally split side panels for quick, unobstructed access
-
Fully depth-adjustable 19” mounting profiles (front and rear)
-
3-point locking with a high-security keyed swing handle
-
Three brushed cable-entry ports on the top panel for structured cabling
-
Base-mounted copper earth bar for complete equipment grounding
-
Heavy-duty steel frame finished in RAL 9003
-
Supplied with baying kit and levelling feet as standard
Technical Specifications:
-
Height: 47U / 2198mm
-
Width: 600mm
-
Depth: 1000mm
-
Frame Material: Steel
-
Finish: Polyester powder-coat
-
Colour: RAL 9003 (white)
-
Front Door: Curved, single-leaf, 83% airflow mesh
-
Rear Doors: Double-leaf, flat, 83% airflow mesh
-
Locking System: Keyed swing handle with 3-point locking
-
Side Panels: Plain, horizontally split (cam-latched)
-
Mounting Format: 19-inch
-
Mounting Profiles: Front and rear, fully depth-adjustable
-
Profile Setback: 120mm front / 120mm rear
-
Cable Access: 3 × brushed top-panel cable apertures
-
Earthing: Base-mounted horizontal copper earth bar
-
Compliance:
-
IEC 60297-3
-
EIA-310-E
-
RoHS
-
REACH
-
ISO9001:2015
-
Included Accessories: Baying kit, levelling feet
