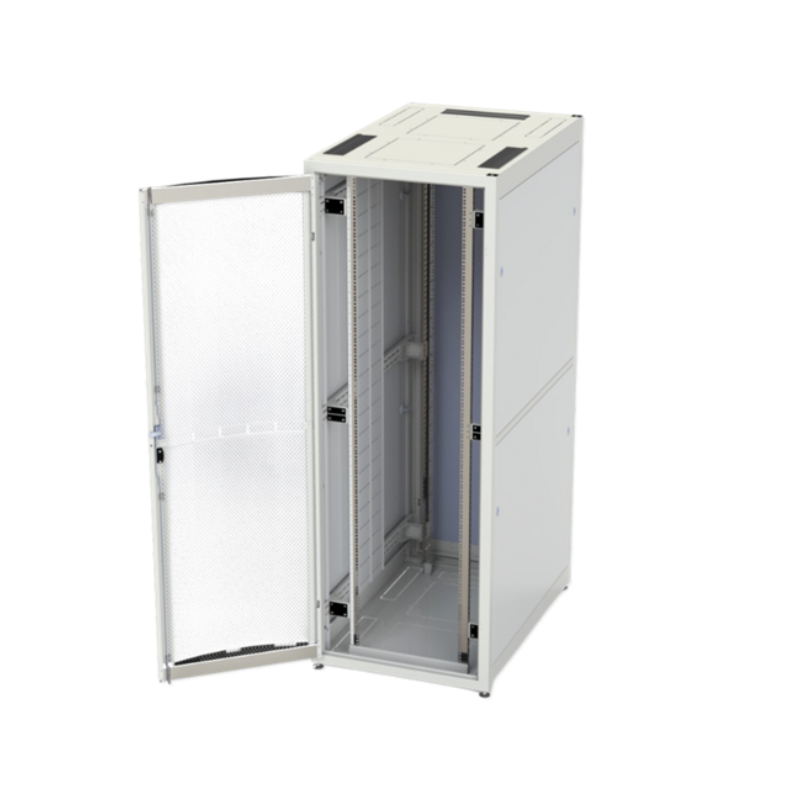

Rainford Server Rack Cabinet (Curved Door, Split Sides) – 42U × 800 × 1200
The Rainford SafeServ® SX 42U × 800 × 1200 Server Rack Cabinet is a premium, UK-manufactured enclosure designed for high-density server, switching and IT infrastructure environments. Featuring a distinctive curved 83% airflow mesh front door and horizontally split side panels, the cabinet delivers outstanding airflow, secure access and easy maintenance—ideal for modern enterprise and data-centre deployments.
Engineered from high-strength steel and finished in durable RAL 9003 polyester powder coat, the SafeServ® SX range offers exceptional rigidity, cooling performance and long-term reliability. Adjustable 19" mounting profiles, optimised cable entry points and airflow-focused mesh doors make this cabinet perfect for high-efficiency server and network installations.
Key Features:
-
Curved 83% airflow mesh front door for high cooling efficiency
-
Double-leaf 83% mesh rear doors to maximise ventilation
-
Horizontally split side panels for easy access during installation and maintenance
-
Front and rear 19” mounting profiles, fully depth-adjustable
-
Keyed swing handle with 3-point locking for secure access control
-
Three brushed cable-entry apertures on the top panel for structured cabling
-
Base-mounted copper earth bar for grounding IT equipment
-
Strong UK-made steel frame with RAL 9003 powder-coated finish
-
Includes baying kit and levelling feet
Technical Specifications:
-
Height: 42U
-
Width: 800mm
-
Depth: 1200mm
-
Material: Powder-coated steel
-
Colour: RAL 9003 (white)
-
Front Door: Curved single-leaf, 83% airflow mesh
-
Rear Doors: Double-leaf flat, 83% airflow mesh
-
Locking: Keyed swing handle with 3-point locking
-
Side Panels: Plain, horizontally split, cam-latched
-
Mounting Format: 19-inch
-
Mounting Profiles: Front + rear, depth adjustable
-
Profile Setback: 120mm front / 120mm rear
-
Cable Access: 3 × brushed top-panel entry points
-
Earthing: Base-mounted copper earth bar
-
Compliance:
-
IEC 60297-3
-
EIA-310-E
-
RoHS
-
REACH
-
ISO9001:2015
-
Included Accessories: Baying kit, levelling feet
