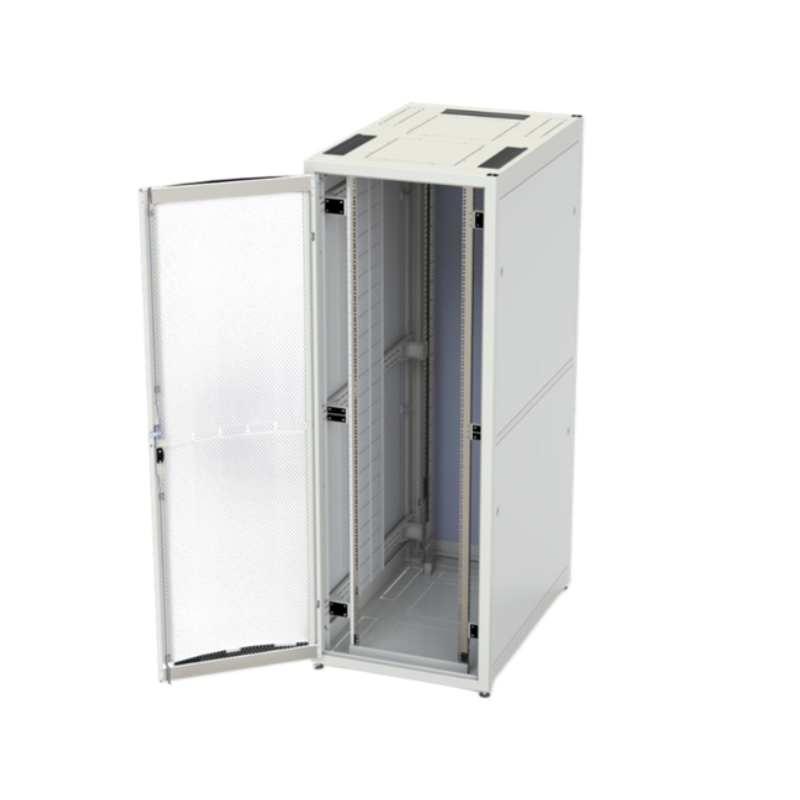

Rainford Server Rack Cabinet (Curved Door, Split Sides) – 47U × 800 × 1200
The Rainford SafeServ® SX 47U × 800 × 1200 Server Rack Cabinet is a premium, UK-manufactured enclosure designed for high-density server, switching and IT infrastructure environments. Featuring a distinctive curved 83% airflow mesh front door and horizontally split side panels, this cabinet delivers outstanding cooling performance, secure access and excellent serviceability for modern data-centre deployments.
Built from heavy-duty steel and finished in durable RAL 9003 polyester powder-coat, the SafeServ® SX range ensures long-term reliability, exceptional rigidity and high airflow efficiency—ideal for enterprise, colocation and cloud-scale environments.
Key Features:
-
Curved 83% airflow mesh front door for enhanced cooling
-
Split (horizontally halved) side panels for easy maintenance access
-
47U high-density server enclosure, optimised for modern data centres
-
Double-leaf 83% airflow mesh rear doors
-
Depth-adjustable 19” front and rear mounting profiles
-
Keyed swing handle with 3-point locking for secure access
-
Three brushed top-panel cable entry ports for structured cabling
-
Base-mounted copper earth bar for full equipment earthing
-
Heavy-duty steel body with RAL 9003 powder-coat finish
-
Supplied with baying kit and levelling feet
Technical Specifications:
-
Height: 47U / 2198mm
-
Width: 800mm
-
Depth: 1200mm
-
Material: High-grade steel
-
Finish: Polyester powder coat
-
Colour: RAL 9003 (white)
-
Front Door: Curved single-leaf 83% airflow mesh
-
Rear Doors: Double-leaf flat 83% airflow mesh
-
Locking: Keyed swing handle, 3-point locking system
-
Side Panels: Plain, horizontally split, cam-latched
-
Mounting Profiles: 19” front and rear, depth adjustable
-
Profile Setback: 120mm front / 120mm rear
-
Cable Entry: 3 × brushed top-panel apertures
-
Earthing: Base-mounted copper earth bar
-
Compliance:
-
IEC 60297-3
-
EIA-310-E
-
RoHS
-
REACH
-
ISO9001:2015
