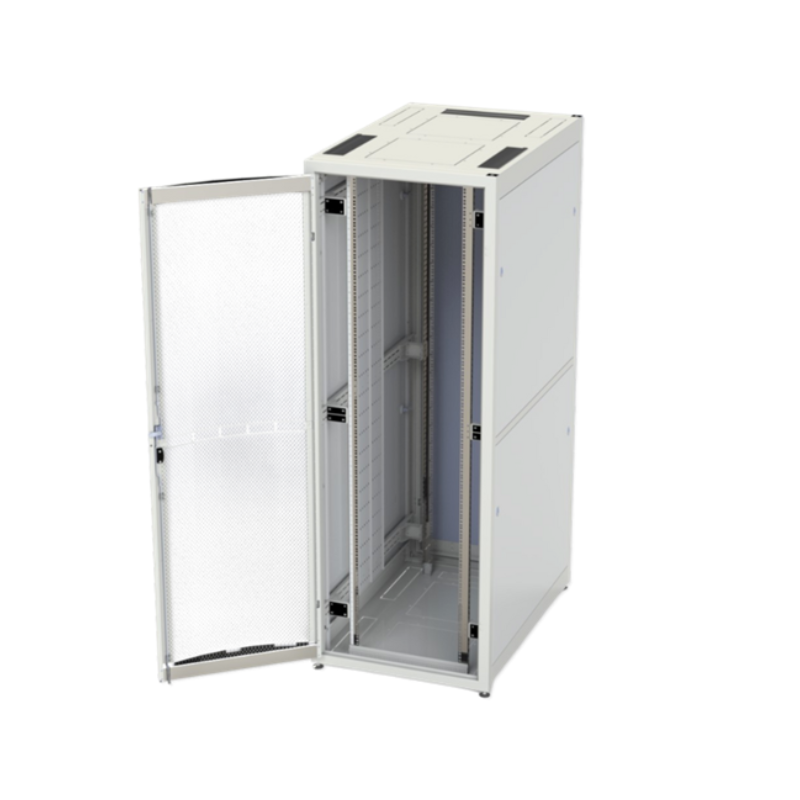

Rainford Server Rack Cabinet (Curved Door, Split Sides) – 42U × 600 × 1200
The Rainford SafeServ® SX 42U × 600 × 1200 Server Rack Cabinet is a high-performance, UK-engineered enclosure designed for modern data centres, enterprise server rooms and network infrastructure environments. With a slim 600mm width and a deep 1200mm footprint, this cabinet provides excellent airflow, secure access and superior serviceability—ideal for high-density server and switching deployments.
Featuring a premium curved 83% airflow mesh front door and horizontally split side panels, the SafeServ® SX design prioritises cooling efficiency, installation flexibility and maintenance convenience. Constructed from heavy-duty steel and finished in robust RAL 9003 polyester powder-coat, this cabinet offers long-term reliability with a refined data-centre aesthetic.
Key Features:
-
Curved 83% airflow mesh front door enhances cold-air intake for dense server installations
-
Double-leaf 83% airflow mesh rear doors improve hot-air exhaust efficiency
-
Horizontally split side panels for easy access during installation and servicing
-
Depth-adjustable 19” mounting profiles (front & rear) for flexible equipment positioning
-
Secure 3-point locking with keyed swing handle
-
Three brushed top-panel cable-entry ports for structured cable management
-
Base-mounted copper earth bar for safe equipment grounding
-
Rigid steel chassis with durable RAL 9003 powder-coated finish
-
Supplied with baying kit and levelling feet for seamless row deployment
Technical Specifications:
-
Height: 42U
-
Width: 600mm
-
Depth: 1200mm
-
Material: Steel
-
Finish: Polyester powder coat
-
Colour: RAL 9003 (white)
-
Front Door: Curved, single-leaf, 83% airflow mesh
-
Rear Doors: Double-leaf, flat, 83% airflow mesh
-
Locking System: Keyed swing handle with 3-point locking
-
Side Panels: Plain, horizontally split, cam-latched
-
Mounting Format: 19-inch
-
Mounting Profiles: Front & rear, fully depth-adjustable
-
Profile Setback: 120mm front / 120mm rear
-
Cable Entry: 3 × brushed top-panel apertures
-
Earthing: Base-mounted copper earth bar
-
Compliance:
-
IEC 60297-3
-
EIA-310-E
-
RoHS
-
REACH
-
ISO9001:2015
-
Included Accessories: Baying kit, levelling feet
