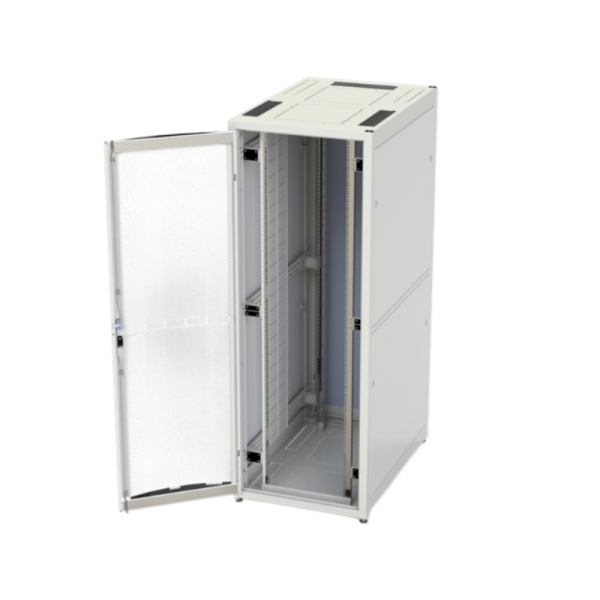

Rainford SafeServ® SX - 42U x 600 x 1000 Server Rack (Curved Door, Split Sides) - White

Rainford Server Rack Cabinet (Curved Door, Split Sides) – 42U × 600 × 1000

The Rainford SafeServ® SX 42U × 600 × 1000 Server Rack Cabinet is a robust, UK-made enclosure designed for modern server rooms, data centres and network infrastructure installations. Offering a compact 600mm width and 1000mm depth, this rack provides excellent cooling performance, secure access and space-saving efficiency—ideal for environments where a smaller footprint is essential.

Featuring the signature curved 83% airflow mesh front door and horizontally split side panels, the SafeServ® SX range is engineered for high-density deployments, ensuring easy maintenance access, superior airflow and exceptional durability. Constructed from heavy-duty steel and finished in RAL 9003 polyester powder coat, this rack delivers long-term reliability and a clean, professional aesthetic.

Key Features:

• Curved 83% airflow mesh front door for optimised cold-air intake

• Double-leaf 83% airflow mesh rear doors for efficient hot-air exhaust

• Horizontally split side panels to improve installation and maintenance access

• Fully depth-adjustable 19” front and rear mounting profiles

• Secure 3-point locking system with keyed swing handle

• Three brushed top-panel cable-entry ports for structured cable management

• Base-mounted copper earth bar for effective equipment grounding

• Rigid, UK-engineered steel frame with RAL 9003 powder-coated finish

• Includes baying kit and levelling feet for seamless alignment in rows

Technical Specifications:

• Height: 42U

• Width: 600mm

• Depth: 1000mm

• Material: Steel

• Finish: Polyester powder coat

• Colour: RAL 9003 (white)

• Front Door: Curved single-leaf 83% airflow mesh

• Rear Doors: Double-leaf flat 83% airflow mesh

• Locking: Keyed swing handle with 3-point locking

• Side Panels: Plain, horizontally split, cam-latched

• Mounting Format: 19-inch

• Mounting Profiles: Front & rear, fully depth adjustable

• Profile Setback: 120mm front / 120mm rear

• Cable Entry: 3 × brushed top cable-entry apertures

• Earthing: Base-mounted copper earth bar

• Compliance:

  • IEC 60297-3

  • EIA-310-E

  • RoHS

  • REACH

  • ISO9001:2015

• Included Accessories: Levelling feet, baying kit
