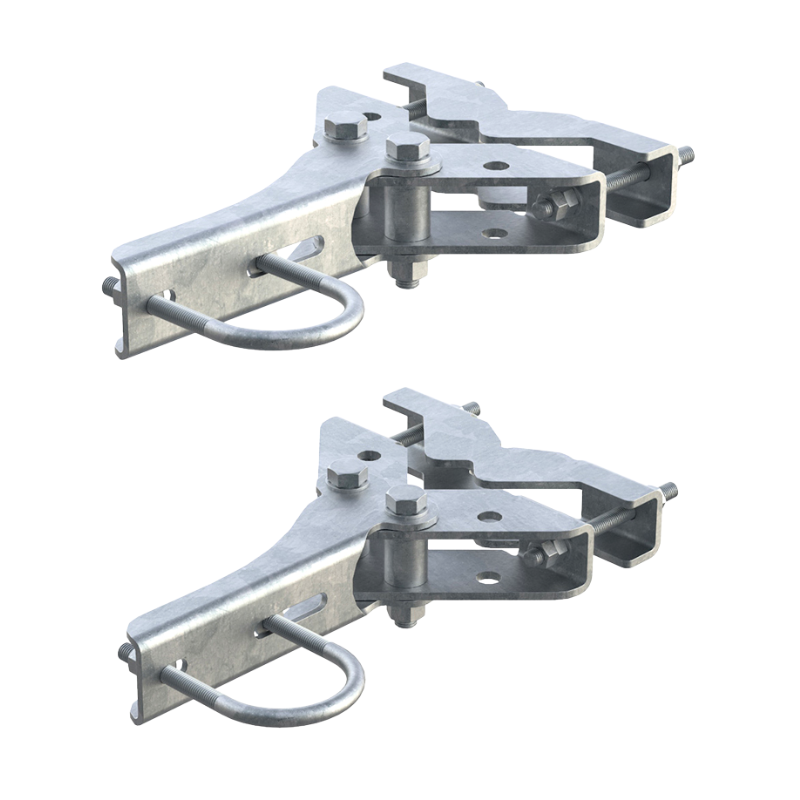

MAFI 3612 Vertical Tower Leg Offset Kit
The MAFI 3612 Vertical Tower Leg Offset Kit is engineered for secure and adaptable mounting of equipment poles on vertical tower legs or round parent poles. With its compact bracket design and high flexibility, this kit allows perpendicular or angled installations at 45° or 60°—ideal for telecom and broadcast infrastructure where space and alignment precision are key. It supports pre-assembly of equipment off-site, allowing efficient lift-and-mount installation.
Designed for smaller parent structures, this offset kit handles a load capacity of up to 250kg, including the offset member, making it a reliable solution for mounting antennas, radios, or similar telecom equipment.
Key Features:

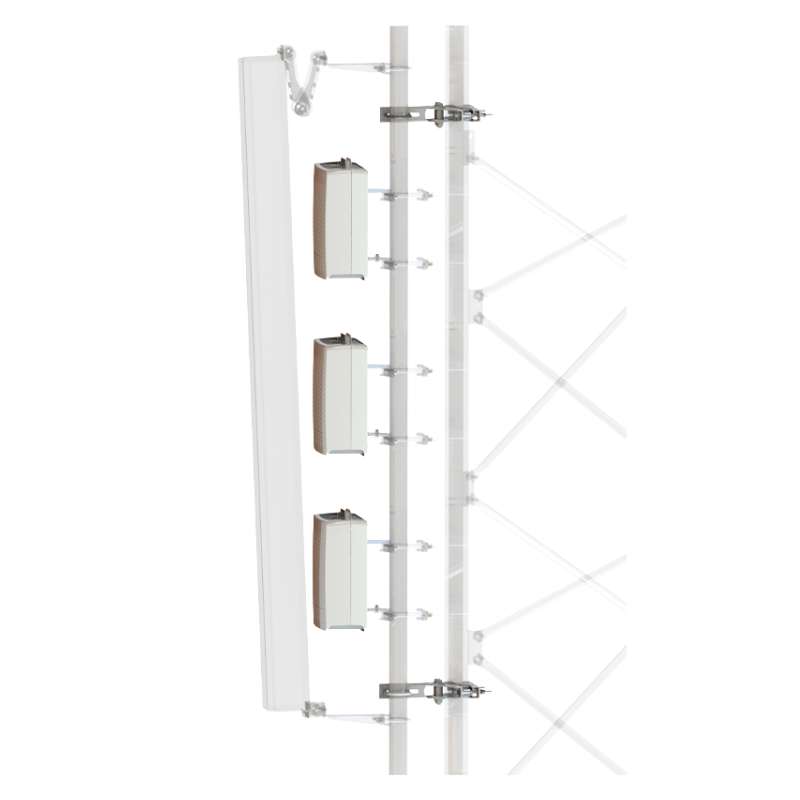

- Designed for vertical mounting of equipment poles on tower legs or parent poles
- Compact short brackets for smaller structures and limited-space installations

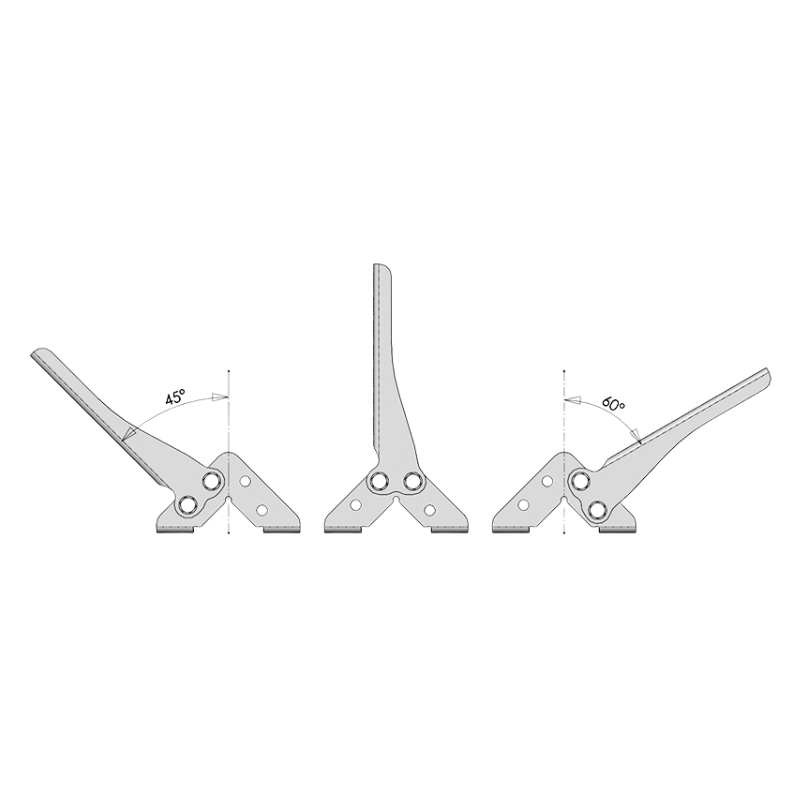

- Supports both perpendicular and oblique mounting angles (45° or 60° left/right)
- Kit includes all necessary fixings for quick and secure installation
- Compatible with round members (60mm–139mm) and angular/square members (60x60–120x120mm)
- Accepts offset poles ranging from Ø 60.3mm to 114.3mm (with optional U-bolt kit 2867-1)
- Maximum offset centre-to-centre distance: 250mm
- Load capacity: Up to 250kg (including offset pole and equipment)
Technical Specification:
-
Model: MAFI 3612
-
Parent Member Compatibility:
-
Offset Member Range: Ø 60.3–76.1mm standard; Ø 88.9–114.3mm with Kit 2867-1
-
Bracket Angle Options: 45° or 60°
-
Max Offset: 250mm
-
Load Capacity: 250kg
-
Certification: EN 1090 compliant
-
Weight (Kit): Approx. 11.2kg
