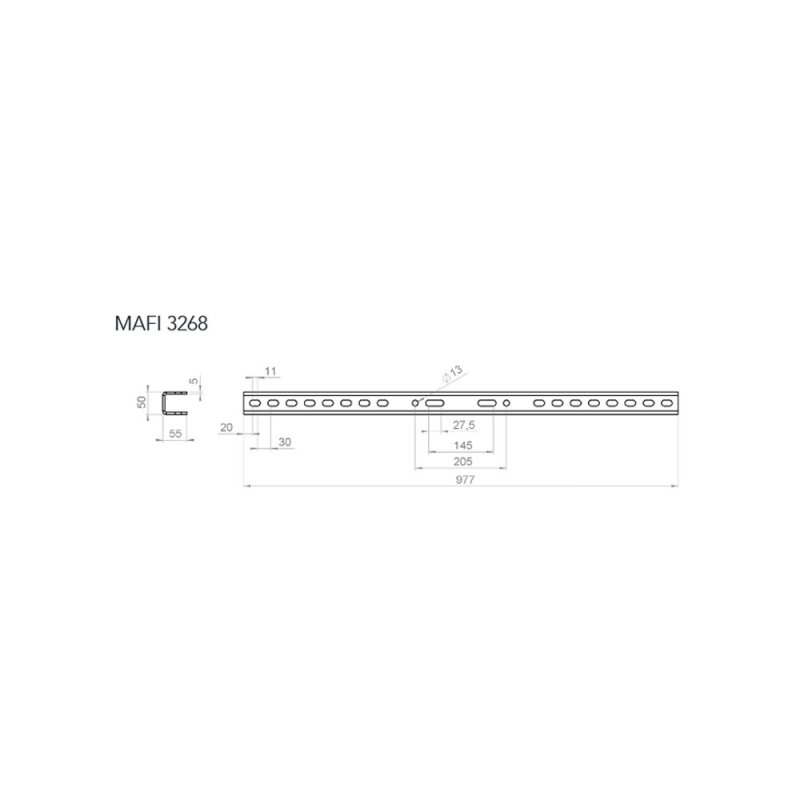

MAFI Symmetric Offset Bracket 3268

The MAFI 3268 Symmetric Offset Bracket is engineered for mounting two antennas symmetrically on either side of a tower leg or mast, offering balanced installation, improved alignment, and load stability. Designed for use in radio and microwave deployments, it ensures optimal spacing and signal performance in telecom environments.

Compatible with circular parent members from Ø 76.1mm to 168.9mm, the bracket supports offset members Ø 60.3–76.1mm as standard, and Ø 88.9–114.3mm with the optional Kit 2867-1. With a load capacity of 90kg and torque resistance up to 698Nm, the MAFI 3268 delivers reliable performance in compact, space-constrained sites. The offset range of 217–422mm offers ample separation from the tower structure for improved safety and efficiency.

Built from hot-dip galvanised steel for corrosion protection, this bracket is ideal for both rooftop and outdoor telecom installations. Supplied as a complete kit with clamps and fixings for quick deployment.

Key Features:

• Symmetrical mounting for two antennas

• Load capacity: 90kg (198 lb)

• Offset range: 217–422mm

• Torque resistance: 698Nm per bracket

• Fits circular parent members up to Ø168.9mm

• Optional kit for larger offset members

• Hot-dip galvanised steel for long-term durability

• Supplied with clamps and fixings
