Int/Ext White Drop Cable 1F 3.0mm - Cca - 500m

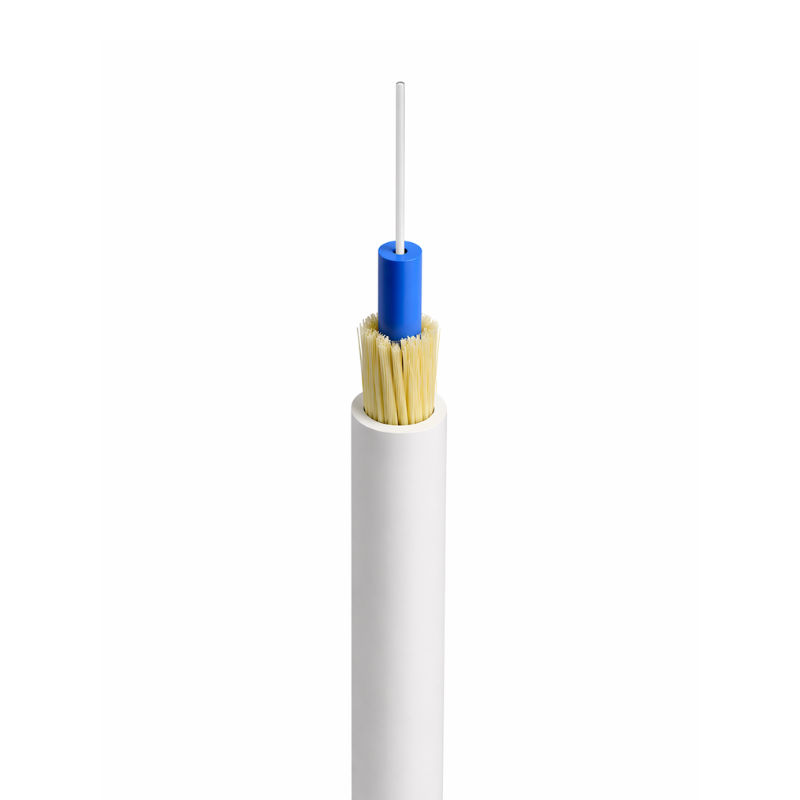

Internal / External Drop Cable 1F 3.0mm Cca – Bare

The Internal / External Drop Cable 1F 3.0mm Cca – Bare is a versatile, high-performance fibre solution designed for seamless routing from outdoor environments directly into indoor spaces without transition points

.

Engineered with a robust 3.0mm LSZH-UV Cca-rated outer sheath, this cable provides enhanced fire performance, UV resistance and long-term durability, making it ideal for modern FTTH deployments across residential and commercial environments.

Built with G.657B3 bend-insensitive singlemode fibre, the cable supports tight routing with minimal attenuation, allowing installation along building façades, through entry points, and into internal pathways with ease. Its design eliminates the need for additional external enclosures, significantly reducing installation time and complexity.

The inclusion of water-blocking aramid (Kevlar) strength members ensures reliable mechanical performance during pulling and routing, while the bare end configuration allows for flexible on-site termination via splicing or field-installable connectors.

Key Features:

• 1 fibre (1F) configuration for FTTH drop applications

• Suitable for internal and external installations

• 3.0mm compact diameter for versatile routing

• LSZH-UV Cca-rated sheath for fire safety and UV protection

• G.657B3 bend-insensitive fibre for tight routing

• Eliminates need for transition points or external enclosures

• Water-blocking aramid (Kevlar) strength members

• Bare end for flexible on-site termination

• Ideal for facade routing and direct indoor entry

Technical Specifications:

• Product Type: Internal / external fibre drop cable

• Fibre Count: 1F

• Fibre Type: ITU-T G.657B3 singlemode

• Outer Diameter: 3.0 ± 0.05 mm

• Sheath Material: LSZH-UV CPR Cca

• Colour: White

• Strength Member: Water-blocking Kevlar (4 × 1500D)

Optical Performance:

• Attenuation:

  • ≤ 0.4 dB/km @1310nm

  • ≤ 0.25 dB/km @1550nm

• Cut-off Wavelength: ≤ 1260 nm

Mechanical & Environmental Performance:

• Tensile Strength:

  • 200N (long-term)

  • 500N (short-term)

• Crush Resistance:

  • 100N/10cm (long-term)

  • 300N/10cm (short-term)

• Minimum Bend Radius:

  • Dynamic: 30D

  • Static: 15D

• Installation Temperature: -10°C to +65°C

• Operating Temperature: -40°C to +70°C

Applications:

• FTTH drop cable installations

• Outdoor façade to indoor routing

• Direct building entry fibre deployments

• Residential and commercial fibre networks

• Discreet external and internal fibre routing
