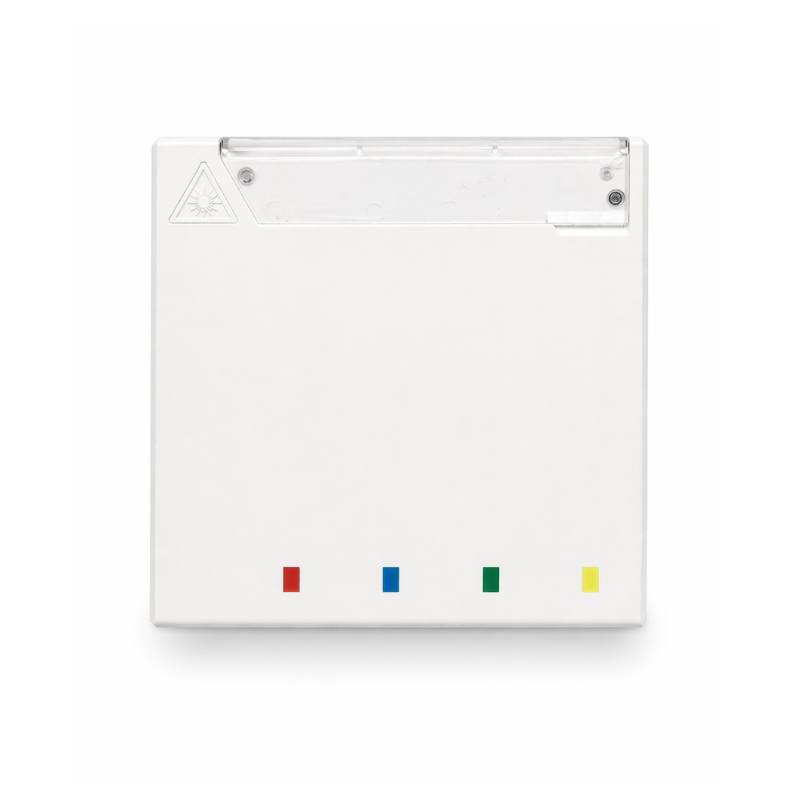

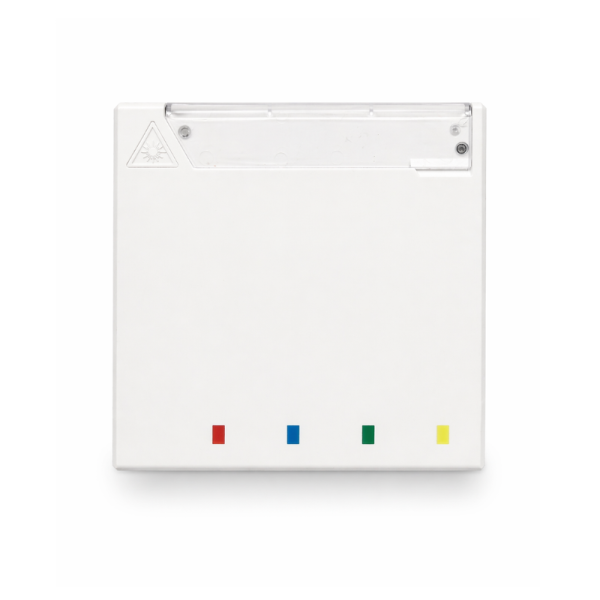

Fibre Wall Outlet – SC/APC
The Fibre Wall Outlet – SC/APC is a sleek, wall-mounted termination solution designed for indoor FTTH deployments, providing a clean and reliable connection point at the customer premises.
Supplied with a pre-installed SC/APC adaptor and matching pigtail, the outlet enables fast, plug-and-play installation, ensuring consistent optical performance for final drop connections in residential and office environments.
Its ultra-low profile design (~24mm depth) allows for discreet integration into modern interiors, while multiple mounting options — including surface mount, flush box or DIN rail installation — provide flexibility for different installation scenarios. The internal layout features a reversible splice tray, enabling efficient fibre management even in tight spaces or corner installations.
Designed for practicality and protection, the outlet includes five cable entry points for flexible routing and a transparent front flap to protect connectors while allowing clear subscriber identification.
Key Features:
-

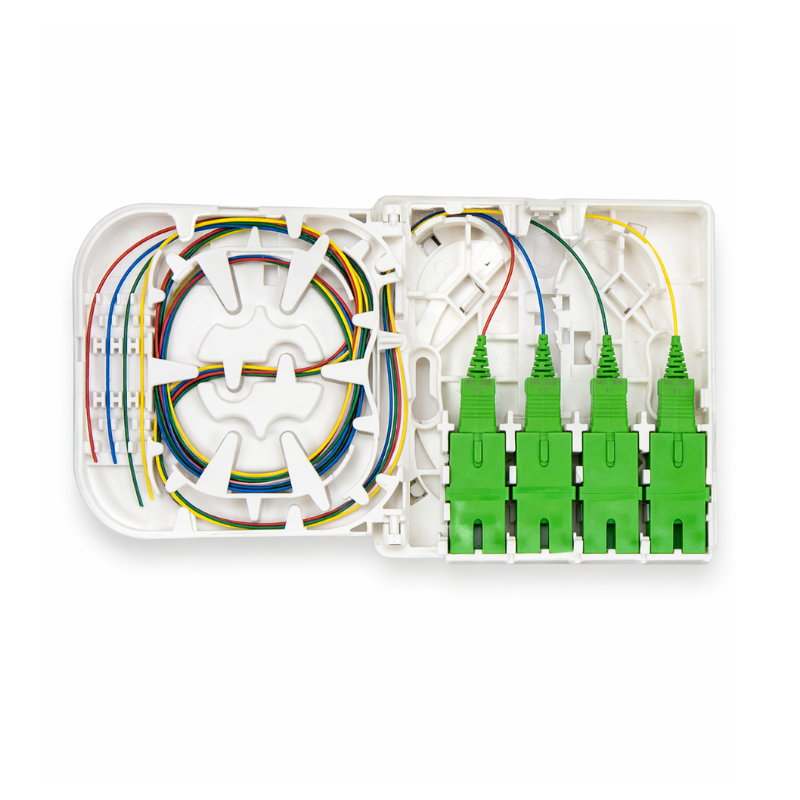

Supplied with SC/APC adaptor and pre-connectorised pigtail
-
Ultra-slim 24mm profile for discreet installation
-
Five cable entry points for flexible routing
-

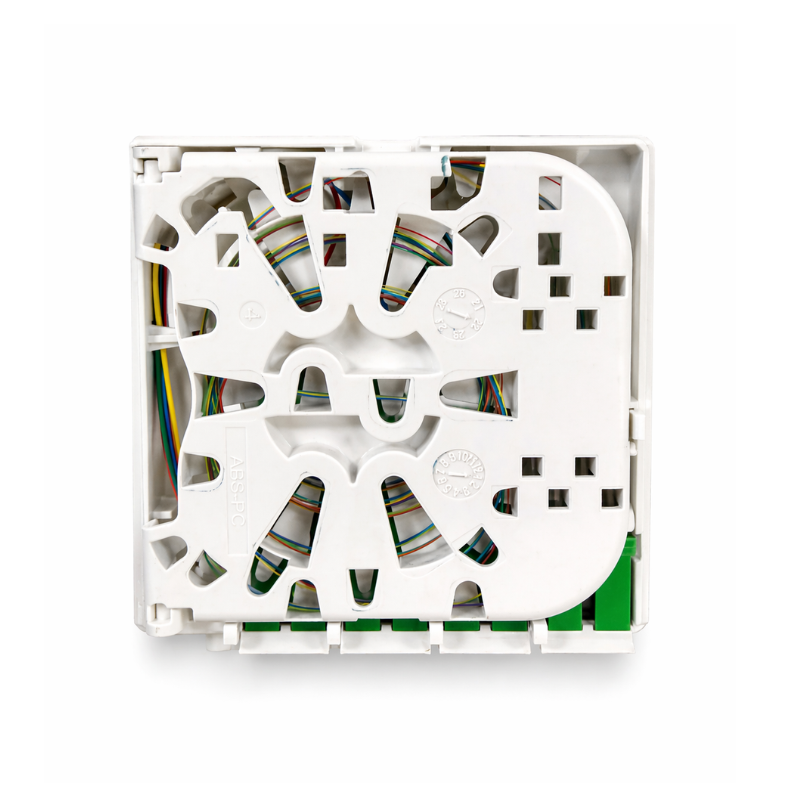

Reversible splice tray for tight or corner installations
-
Transparent front flap for labelling and dust protection
-
Multiple mounting options: surface, flush box or DIN rail
-
Clean, professional finish for residential environments
-
Quick and efficient installation
Technical Specifications:
-
Product Type: Fibre wall outlet
-
Capacity: 1 fibre (1FO)
-
Connector Type: SC/APC (adaptor & pigtail included)
-
Material: ABS / PC
-
Colour: White (RAL 9010)
-
Depth: 24 mm (excluding mounting plate)
-
Weight: Approx. 0.1 kg
-
Cable Entry Diameter:
Applications:
-
Indoor FTTH terminations
-
Residential fibre installations
-
MDU and apartment deployments
-
Office and commercial fibre connections
-
Final subscriber connection points
