Internal/External 24F AFN – Multiple Adaptor Count

Internal / External 24F AFN – Multiple Adaptor Count

The Internal / External 24F AFN – Multiple Adaptor Count is a flexible and scalable fibre distribution solution designed for FTTH deployments in MDU, residential and access network environments.

This AFN (Access Fibre Node) enclosure supports multiple adaptor configurations, allowing installers to select the most suitable setup based on network design requirements. Options include pre-configured variants with LC/APC adaptors and integrated PLC splitters, enabling efficient and consistent fibre distribution with minimal on-site preparation.

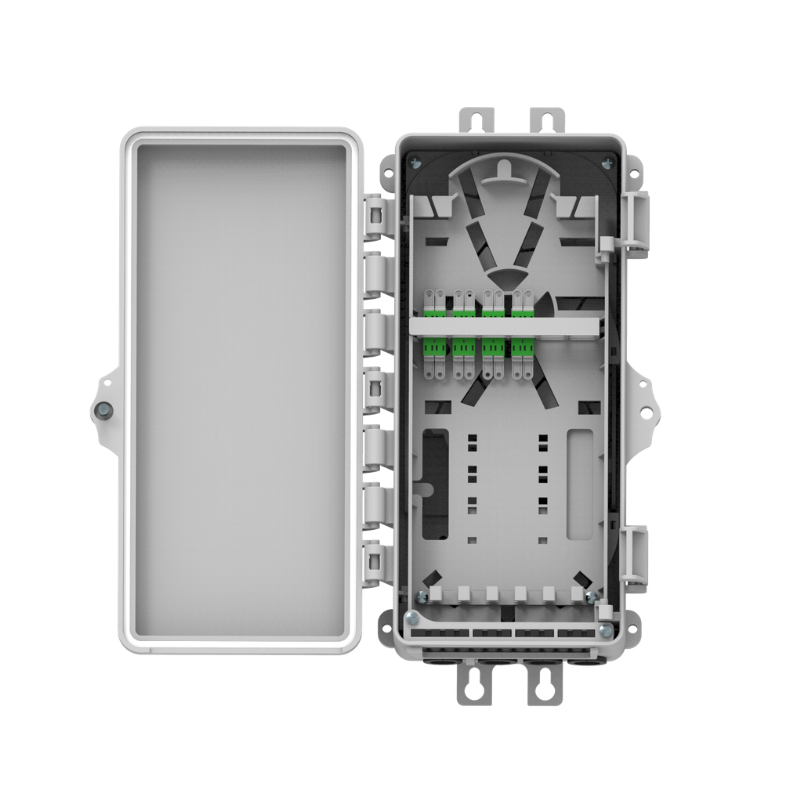

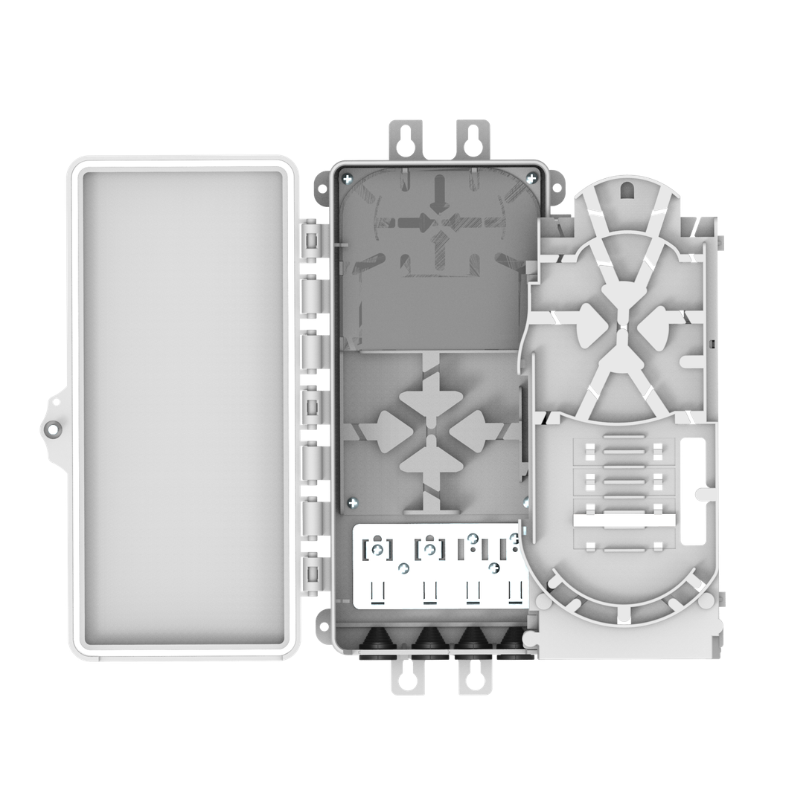

Designed for both indoor and outdoor installations, the enclosure features a durable IP54-rated housing that protects internal components while maintaining ease of access. Its internal layout is optimised for structured fibre routing, splice management, splitter integration and cable organisation, ensuring fast, clean and professional installations.

With support for mid-span cable access and flexible feeder/drop management, this solution is ideal for both new-build projects and retrofit upgrades, delivering reliable performance and scalability.

Key Features:

• Available in multiple adaptor configurations (up to 24 LC/APC)

• Supports various PLC splitter configurations (e.g. 1×8, multiple splitters)

• Suitable for internal and external installations (IP54 rated)

• Compact, installer-friendly design

• Supports mid-span cable access

• Structured fibre routing and cable management

• Durable, impact-resistant housing

• Wall and pole mountable

Technical Specifications:

• Product Type: Access Fibre Node (AFN) / Fibre Distribution Point

• Fibre Capacity: 24F splice capacity

• Adaptor Capacity: Up to 24 LC/APC (model dependent)

• Splitter Options: 1×8 PLC and multi-splitter configurations available

• Mounting Options: Wall and pole mounted

• IP Rating: IP54

• Material: PC + ABS (UL94-V0 flame rated)

• Colour: Grey

Cable Entry / Exit:

• Feeder Cable Entry: 4 ports (5–14 mm)

• Drop Cable Exit: Up to 24 ports (2–5 mm)

Applications:

• MDU fibre distribution

• FTTH and FTTx deployments

• Internal and external building installations

• Pre-configured fibre distribution systems

• Residential and commercial fibre networks
