Telenco LM030PUK_1F G657A2 LC/APC - LC/APC - Multiple Lengths

Telenco LM030PUK_1FO G657A2 LC/APC – LC/APC – Multiple Lengths

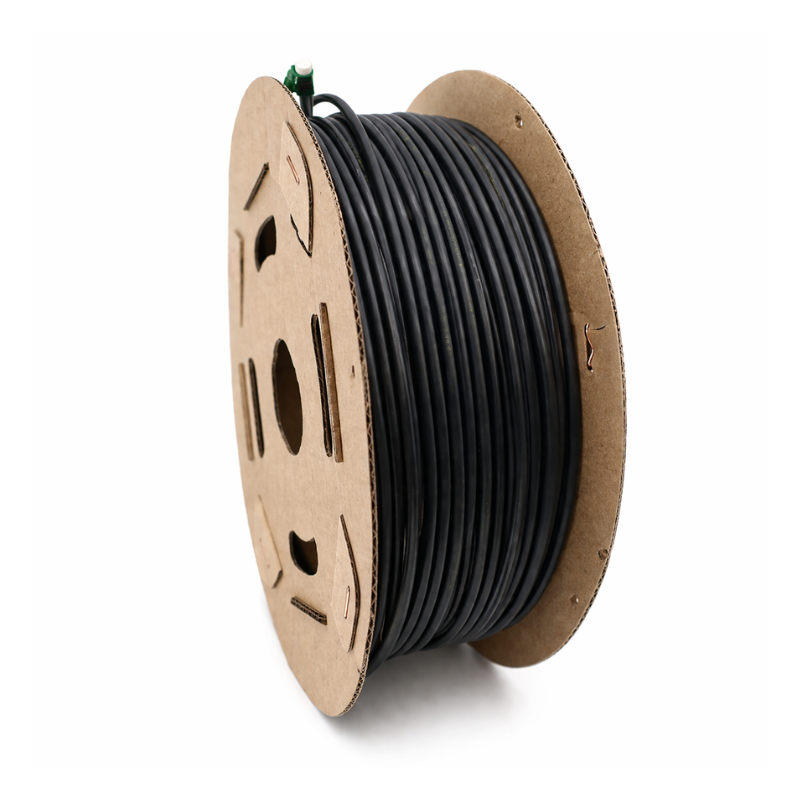

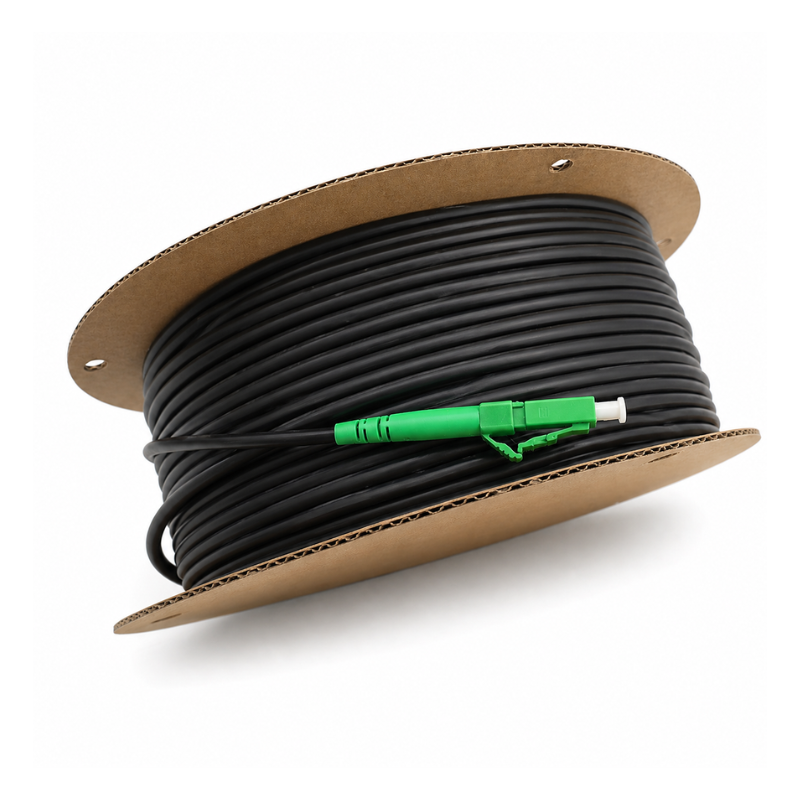

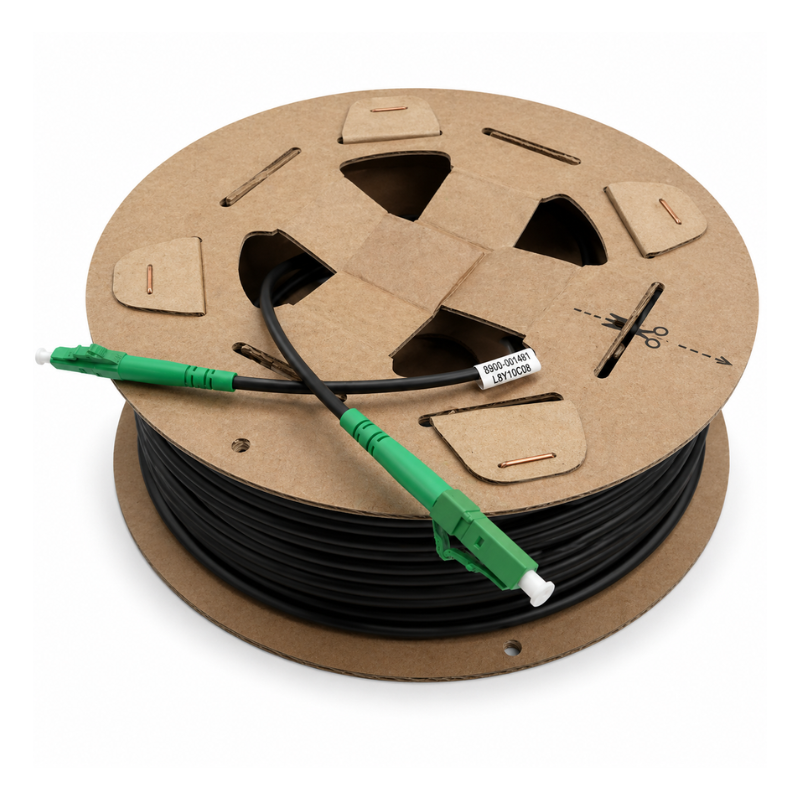

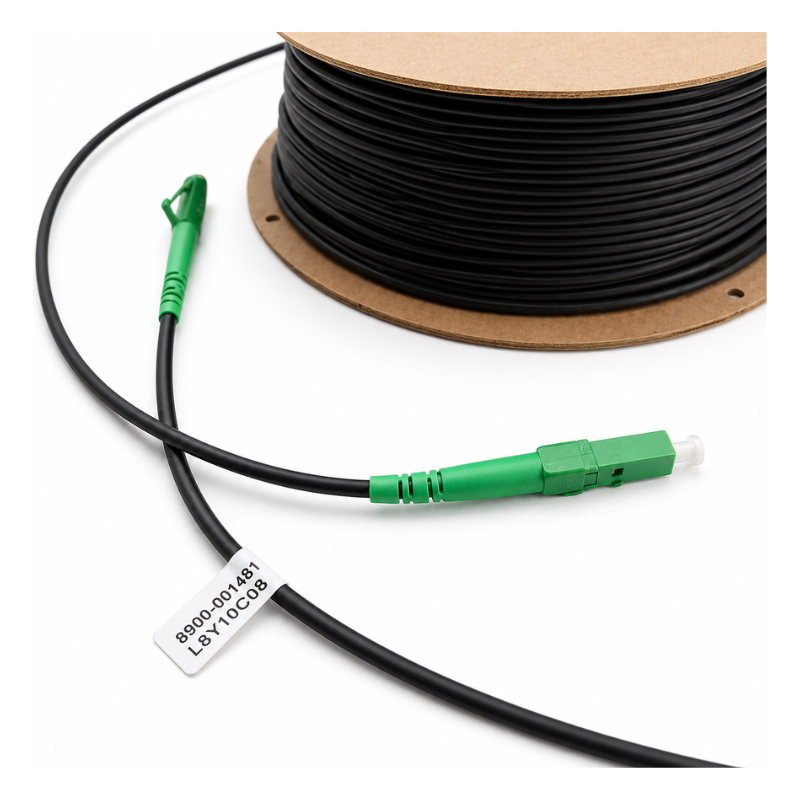

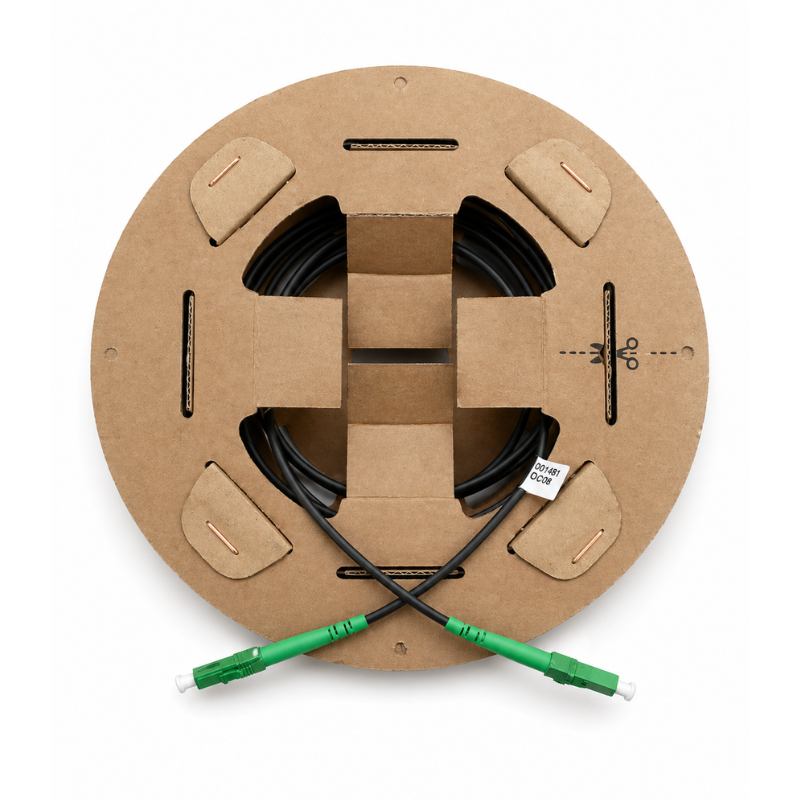

The Telenco LM030PUK_1FO G657A2 LC/APC – LC/APC – Multiple Lengths is a high-performance, pre-connectorised aerial drop cable designed for efficient FTTH deployments in residential and access network environments.

Built on the DROPTIC® LM030PUK platform, this cable is specifically engineered for overhead installations (spans up to 70m), façade routing and duct applications, providing flexibility across multiple deployment scenarios. Its compact 3.0mm diameter ensures minimal visual impact while maintaining excellent mechanical strength and handling.

The cable features a durable PUR (polyurethane) outer sheath, offering enhanced resistance to wear, tear and UV exposure, making it ideal for long-term outdoor use. Combined with aramid yarn reinforcement, it delivers strong tensile performance and reliability during installation.

Pre-terminated with LC/APC connectors on both ends, this assembly enables fast, plug-and-play installation, eliminating the need for on-site termination and ensuring consistent optical performance.

With G.657A2 bend-insensitive singlemode fibre, the cable supports tight bend radii with minimal signal loss, allowing easy routing through complex installation paths.

Key Features:

• 1 fibre (1FO) configuration for FTTH drop applications

• LC/APC to LC/APC pre-connectorised for rapid deployment

• Designed for aerial, façade and duct installations

• PUR outer sheath for superior UV and abrasion resistance

• Compact 3.0mm diameter for discreet routing

• G.657A2 bend-insensitive fibre for tight installation paths

• Reinforced with aramid yarns for mechanical strength

• Suitable for spans up to 70m

• Available in multiple lengths for flexible deployment

Technical Specifications:

• Product Type: Pre-connectorised aerial drop cable

• Fibre Count: 1FO

• Fibre Type: ITU-T G.657A2 singlemode

• Connector Type: LC/APC – LC/APC

• Outer Diameter: 3.0 mm

• Sheath Material: Polyurethane (PUR)

• Buffer: 900µm loose buffer

• Reinforcement: Aramid yarns

• Weight: ~8 kg/km

Mechanical & Environmental Performance:

• Tensile Load: 300N

• Anchoring Resistance: 800N (no cable sliding)

• Breaking Load: 1200N – 1800N

• Crush Resistance: 1000N / 100mm

• Minimum Bend Radius:

  • Kink: 5 mm

  • Static: 12.5 mm

• Temperature Range:

  • Operation: -20°C to +60°C

  • Storage: -40°C to +70°C

Applications:

• FTTH aerial drop installations

• Façade-mounted fibre routing

• Duct-based fibre deployments

• Residential and SDU fibre connections

• Pre-connectorised plug-and-play fibre networks
