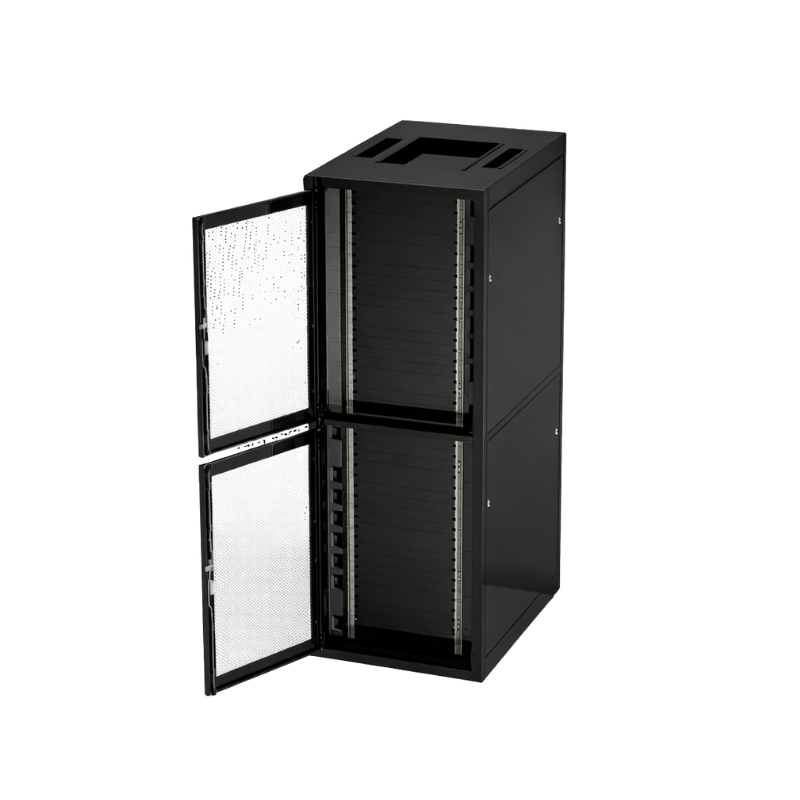

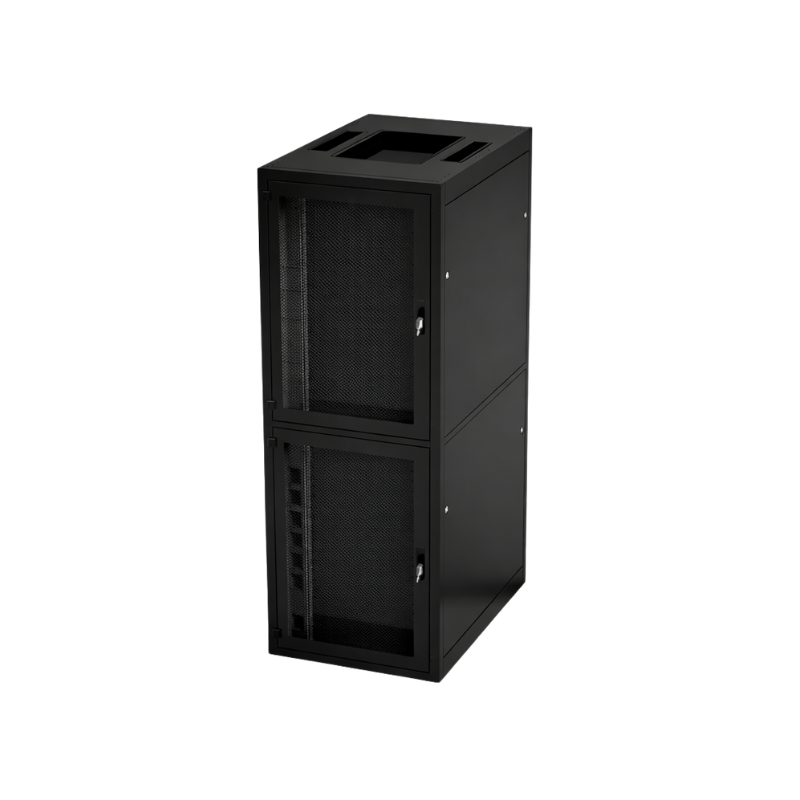

Rainford SafeServ® CX - 47U x 800 x 1200 Four Compartment Colocation Rack Cabinet - Black

Rainford SafeServ® CX – 47U × 800 × 1200 Four Compartment Colocation Rack Cabinet – Black (RAL 9005)

The Rainford SafeServ® CX Four Compartment Colocation Rack Cabinet is a secure, airflow-optimised enclosure designed for high-density, multi-tenant data centre and colocation environments where physical segregation, access control, and thermal efficiency are essential. Purpose-engineered for shared infrastructure, the CX range enables multiple customers to operate independently within a single cabinet footprint while maintaining robust security and performance.

This 47U, 800 × 1200 mm configuration is divided into four fully segregated compartments (4 × 11U), maximising space utilisation while ensuring strict separation between tenants. Constructed with fully welded front and rear steel frames, the SafeServ CX cabinet delivers exceptional structural strength and long-term reliability. 83% mesh doors support high-volume airflow and containment strategies to improve cooling efficiency and reduce PUE. Finished in Black (RAL 9005) with a durable polyester powder coat, this cabinet is ideally suited to modern colocation facilities.

Key Features:

• Four fully segregated compartments for secure multi-tenant colocation

• Fully welded steel frame construction for high load capacity and durability

• 83% mesh doors for optimised airflow and efficient cooling

• Secure, lockable doors and panels for shared environments

• 19-inch mounting format with depth-adjustable front and rear profiles

• Compatible with airflow containment and blanking solutions

• Durable polyester powder-coated finish in Black (RAL 9005)

Technical Specifications:

• Rack Height: 47U (2198 mm)

• Rack Width: 800 mm

• Rack Depth: 1200 mm

• Compartments: 4 × 11U

• Material: Steel

• Finish: Polyester powder coat

• Colour: Black (RAL 9005)

• Mounting Format: 19 inch

• Mounting Profiles: Front and rear, depth adjustable

• Front Door: Single-leaf flat 83% mesh

• Rear Doors: Double-leaf flat 83% mesh

• Side Panels: Plain panels, split horizontally

• Door Locking: Single-point locking system

• Door Handles: Swing handle – 3-pin combination

• Earthing: Base-mounted horizontal copper earth bar

• Cable Ingress: Segregated top and base cable entry channels

• Standards Compliance: IEC 60297-3, EIA-310-E, ISO 9001:2015, RoHS, REACH

Included as standard:

• 3-Pin Combination Swing Handle

• Levelling Feet Kit

• Baying Kit

• Base Mounted Earth Bar Kit

• 2 × Brushed Cable Entry Modules

• Pallet & Packaging Kit
