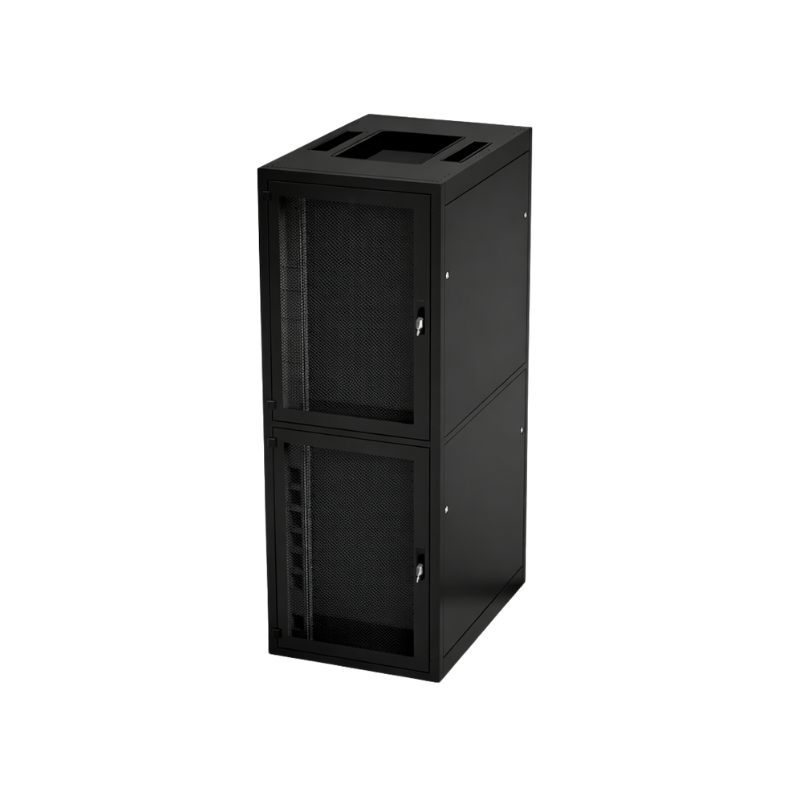

Rainford SafeServ® CX - 42U x 800 x 1200 Four Compartment Colocation Rack Cabinet - Black

Rainford SafeServ® CX – 42U × 800 × 1200 Four Compartment Colocation Rack Cabinet – Black (RAL 9005)

The Rainford SafeServ® CX Four Compartment Colocation Rack Cabinet is a secure, airflow-optimised enclosure engineered for high-density, multi-tenant data centre and colocation environments where physical segregation, access control, and thermal efficiency are essential. Designed specifically for shared infrastructure, the CX range enables multiple customers to operate independently within a single cabinet footprint while maintaining robust security and performance.

This 42U, 800 × 1200 mm configuration is divided into four fully segregated compartments (2 × 10U + 2 × 9U), maximising usable rack space while ensuring strict separation between tenants. Constructed with fully welded front and rear steel frames, the SafeServ CX cabinet delivers exceptional structural strength and long-term reliability. 83% mesh doors support high-volume airflow and containment strategies to improve cooling efficiency and reduce PUE. Finished in Black (RAL 9005) with a durable polyester powder coat, this cabinet is ideally suited to modern colocation facilities.

Key Features:

• Four fully segregated compartments for secure multi-tenant colocation

• Fully welded steel frame construction for high load capacity and durability

• 83% mesh doors for optimised airflow and efficient cooling

• Secure, lockable doors and panels for shared environments

• 19-inch mounting format with depth-adjustable front and rear profiles

• Compatible with airflow containment and blanking solutions

• Durable polyester powder-coated finish in Black (RAL 9005)

Technical Specifications:

• Rack Height: 42U (1976 mm)

• Rack Width: 800 mm

• Rack Depth: 1200 mm

• Compartments: 2 × 10U + 2 × 9U

• Material: Steel

• Finish: Polyester powder coat

• Colour: Black (RAL 9005)

• Mounting Format: 19 inch

• Mounting Profiles: Front and rear, depth adjustable

• Front Door: Single-leaf flat 83% mesh

• Rear Doors: Double-leaf flat 83% mesh

• Side Panels: Plain panels, split horizontally

• Door Locking: Single-point locking system

• Door Handles: Swing handle – 3-pin combination

• Earthing: Base-mounted horizontal copper earth bar

• Cable Ingress: Segregated top and base cable entry channels

• Standards Compliance: IEC 60297-3, EIA-310-E, ISO 9001:2015, RoHS, REACH

Included as Standard:

• 3-Pin Combination Swing Handle

• Levelling Feet Kit

• Baying Kit

• Base Mounted Earth Bar Kit

• 2 × Brushed Cable Entry Modules

• Pallet & Packaging Kit
