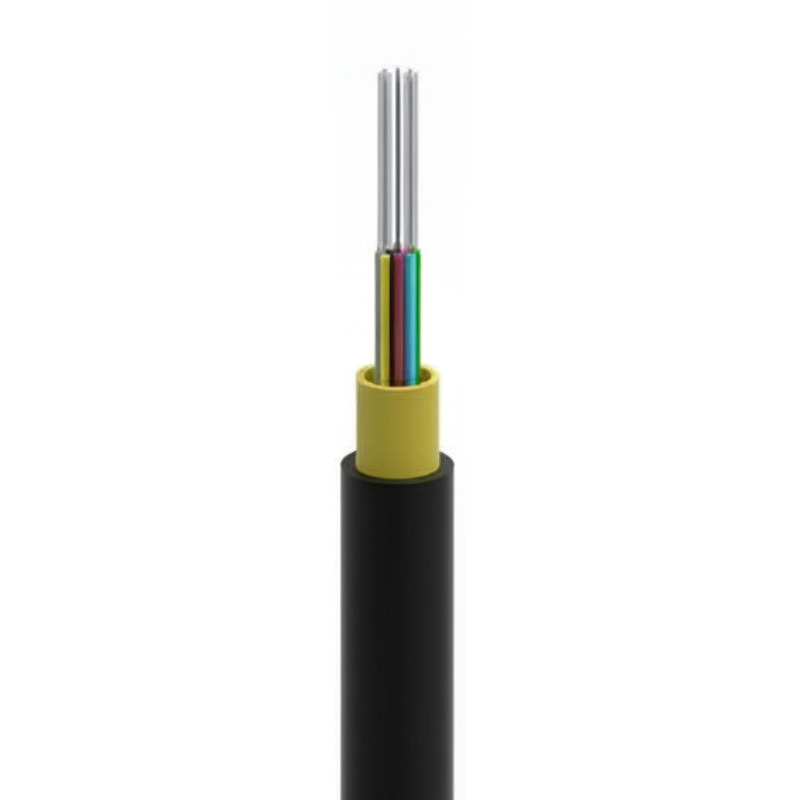

Int/Ext Midspan Cable 12F G657B3 3.0mm Cca- Black - 500m

Internal / External Midspan Cable 12F G657B3 3.0mm Cca – Black – 500m

The Internal / External Midspan Cable 12F G657B3 3.0mm Cca – Black – 500m is a high-performance corridor cable designed for fast, reliable fibre deployment across MDU, residential and access network environments.

Constructed with a single FR-LSZH sheath and water-blocking aramid yarns, this cable is suitable for both indoor and outdoor installations, providing durability and flexibility across a wide range of applications. Its compact 3.0mm diameter allows discreet routing while maintaining excellent mechanical performance.

Featuring G.657B3 bend-insensitive fibre, the cable supports tight bend radii with minimal signal loss, making it ideal for complex routing scenarios and midspan access installations. Designed to meet CPR Cca requirements, it ensures compliance with European fire safety standards.

Key Features:

• 12 fibre (12F) configuration for distribution applications

• Suitable for internal and external installations

• G.657B3 bend-insensitive fibre for tight routing

• 3.0mm compact diameter for discreet deployment

• FR-LSZH outer sheath for enhanced safety

• Water-blocking aramid yarn strength members

• Designed for midspan access applications

• Compliant with CPR Cca fire rating

• Enables fast, reliable and consistent installation

Technical Specifications:

• Product Type: Fibre optic corridor / midspan cable

• Fibre Count: 12F

• Fibre Type: ITU-T G.657B3 singlemode

• Outer Diameter: 3.0 ± 0.1 mm

• Sheath Material: FR-LSZH

• Colour: Black

• Strength Member: Aramid yarns

• Length: 500 metres

Mechanical & Environmental Performance:

• Tensile Strength: 200N (long-term) / 500N (short-term)

• Minimum Bend Radius:

  • Dynamic: 30D

  • Static: 15D

• Crush Resistance: 200N/10cm (long-term), 500N/10cm (short-term)

• Installation Temperature: -10°C to +65°C

• Operating Temperature: -40°C to +70°C

Applications:

• MDU corridor and riser installations

• Internal and external fibre routing

• FTTH and FTTx deployments

• Midspan cable access solutions

• Residential and commercial fibre networks
