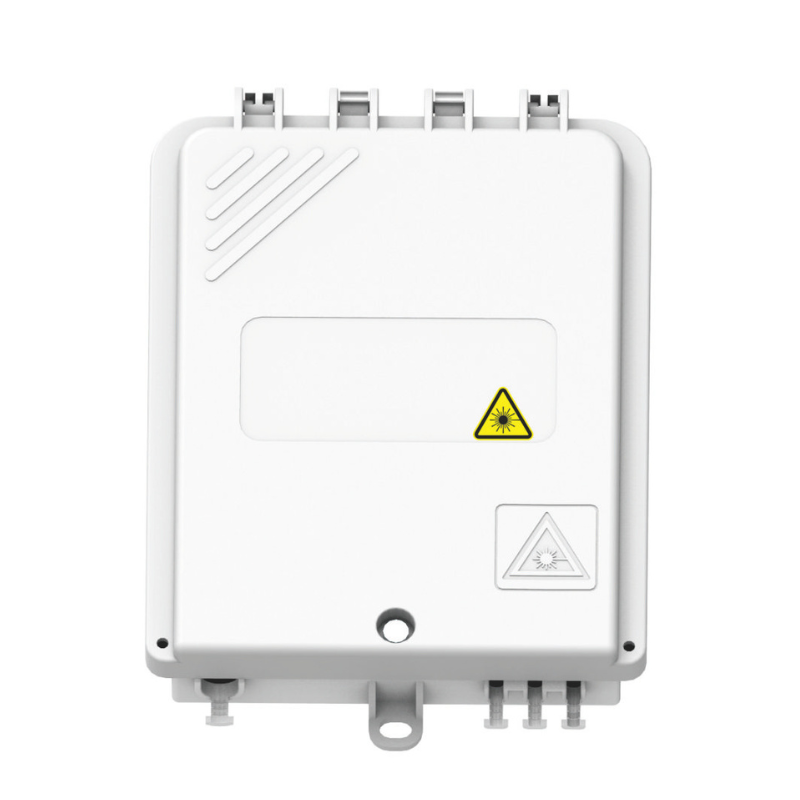

Internal / External 6F FDP – Fibre Distribution Point
The Internal / External 6F FDP – Fibre Distribution Point is a compact and efficient enclosure designed for fibre distribution in MDU and access network environments. Ideal for smaller-scale deployments, it provides a reliable solution for managing feeder-to-drop fibre connections in both indoor and outdoor installations.

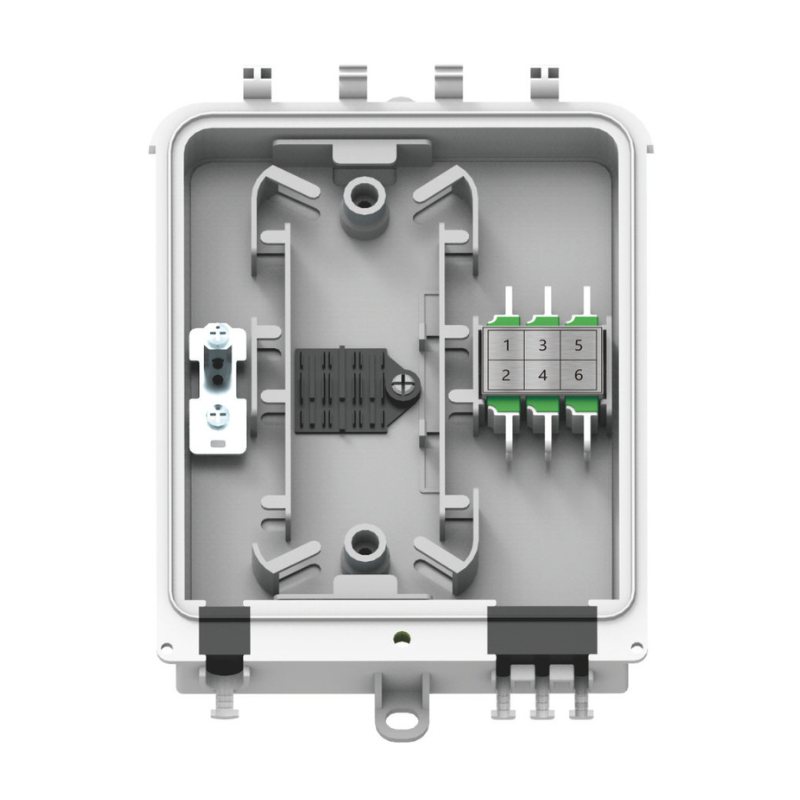

Engineered with a robust, impact-resistant housing, this FDP ensures dependable protection while maintaining flexibility for various network configurations. Its internal layout supports organised fibre routing, splice management and splitter integration, enabling quick and consistent installations.
With its space-saving design and installer-friendly access, the 6F FDP is well suited for retrofit projects and new-build developments, delivering efficient fibre management where space is limited.
Key Features:
-
Compact, space-efficient design
-
Suitable for internal and external use (IP55 rated)
-
Flexible fibre routing and cable management
-
Fast and easy installation access
-
Secure fibre retention and organisation
-
Splitter-ready configuration
-
Durable, impact-resistant housing
-
Wall-mounted installation
Technical Specifications:
-
Product Type: Fibre Distribution Point (FDP)
-
Fibre Capacity: 6F (LC-DX) / 3F (SC-SX)
-
Splice Capacity: Up to 12 fibres
-
Splitter Capacity:
-
1:4 PLC – 1 unit
-
1:8 PLC – 1 unit
-
Mounting Method: Wall mounted
-
IP Rating: IP55
-
Material: PC + ABS (UL94-V0 flame rated)
-
Colour: Light Grey
-
Cable Entry:
-
Drop ports: 6 (3mm)
-
Feeder cable: 3–8mm
-
Dimensions (L × W × H): 187.5 × 142.5 × 36 mm
Applications:
-
MDU fibre distribution
-
FTTH and FTTx network deployments
-
Internal and external building installations
-
Small-scale fibre distribution points
-
Residential and light commercial fibre networks
