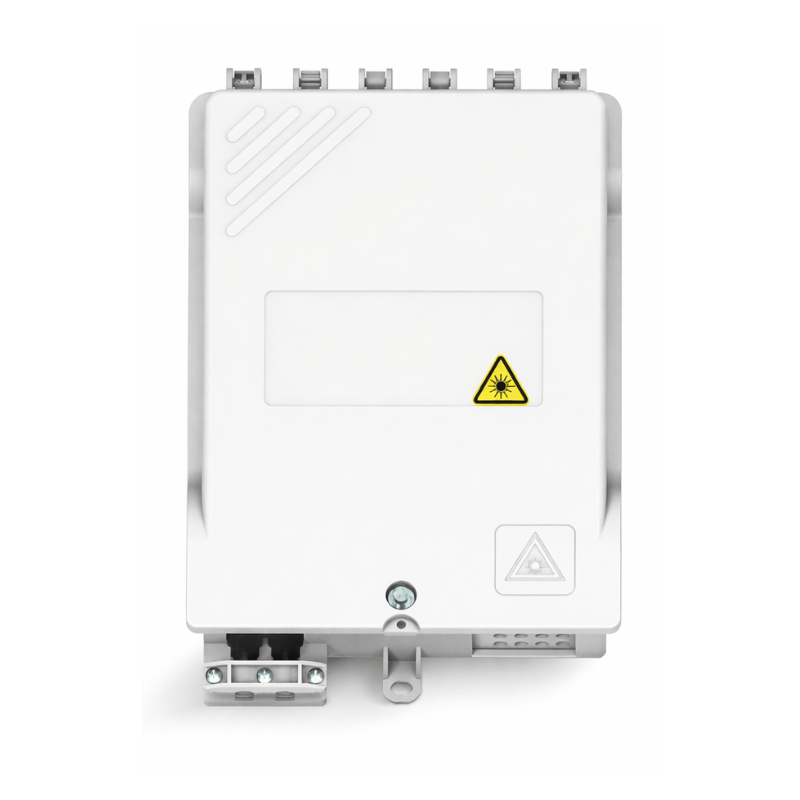

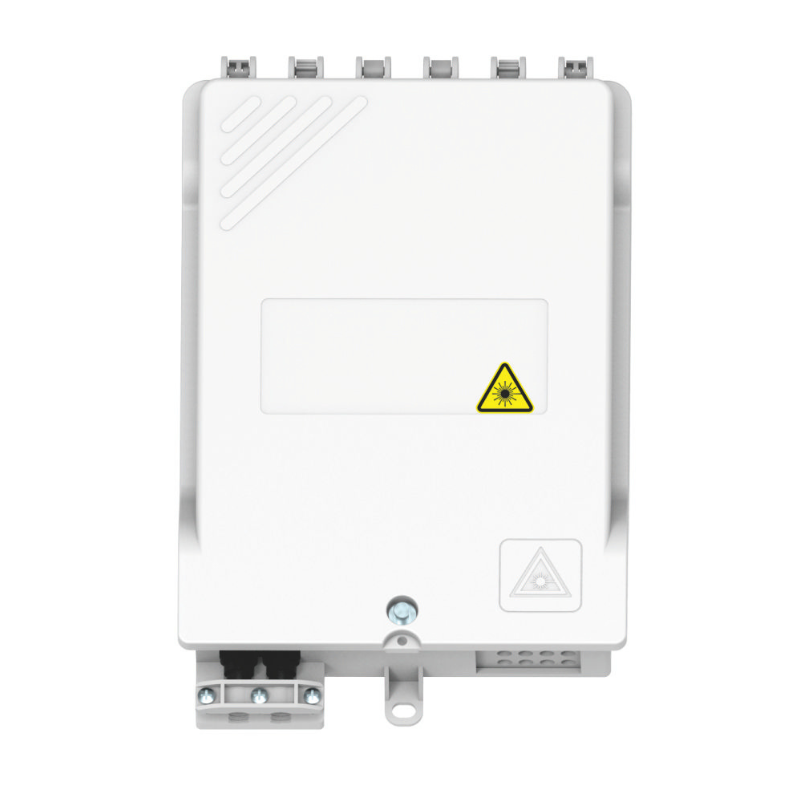

Internal / External 16F FDP – Fibre Distribution Point
The Internal / External 16F FDP – Fibre Distribution Point is a compact and scalable enclosure designed for efficient fibre distribution in multi-dwelling unit (MDU) and access network environments.

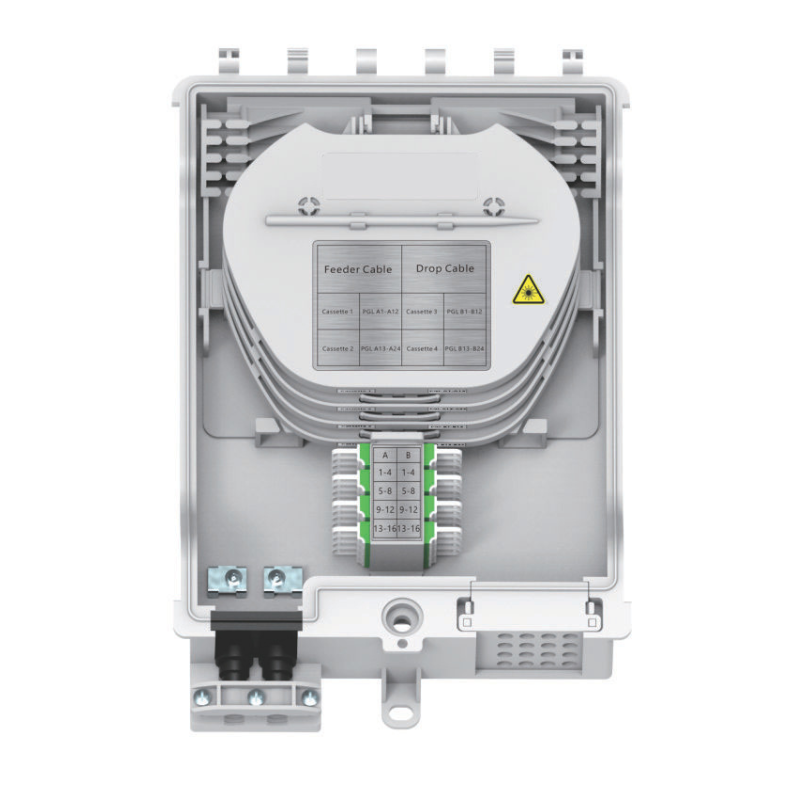

Engineered for both indoor and outdoor installations, this distribution point provides robust protection while maintaining flexibility across a wide range of network architectures. Its intelligently designed internal layout supports structured fibre routing, splitter integration and secure cable management, ensuring fast, consistent and professional installations.
With support for multiple splitter configurations and high splice capacity, the enclosure is ideal for both new-build deployments and retrofit projects, enabling efficient fibre distribution from feeder to drop cables.
Key Features:
-
Compact, space-efficient design
-
Suitable for internal and external installations (IP55 rated)
-
Flexible cable management system
-
Fast, installer-friendly access
-
Secure fibre retention and routing
-
Splitter-ready configuration
-
Robust, impact-resistant housing
-

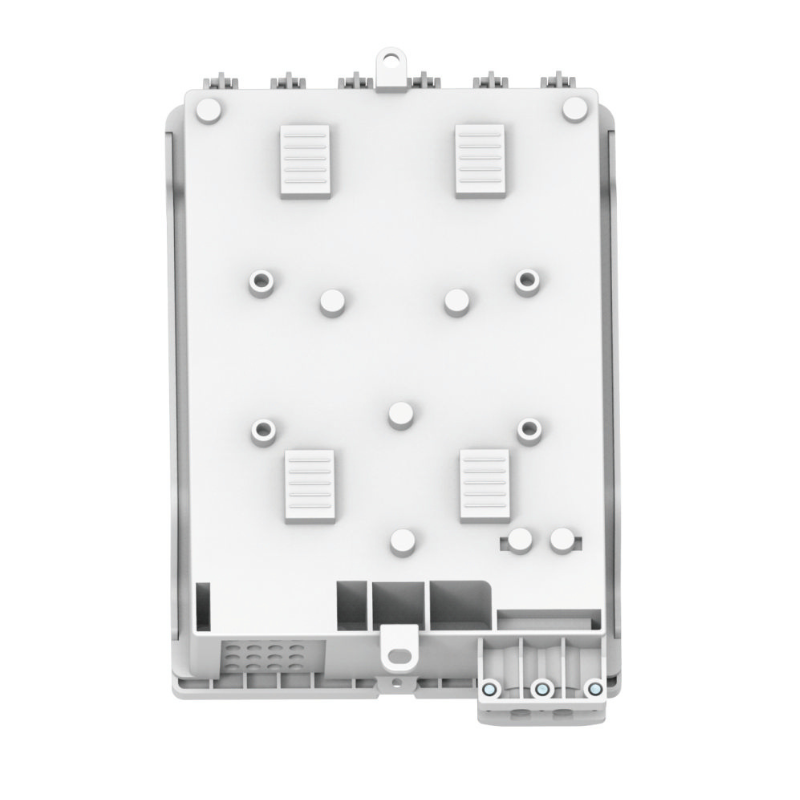

Wall or pole mountable
Technical Specifications:
-
Product Type: Fibre Distribution Point (FDP)
-
Fibre Capacity: 16F distribution (LC-DX) / 8F (SC-SX)
-
Splice Capacity: Up to 48 fibres
-
Splitter Capacity:
-
1:4 PLC – up to 4 units
-
1:8 PLC – up to 2 units
-
1:16 PLC – 1 unit
-
Mounting Options: Wall or pole mounted
-
Cable Entry:
-
Feeder ports: 2 (5–12mm)
-
Drop ports: 16 (3–5mm)
-
IP Rating: IP55
-
Material: PC + ABS (UL94-V0 flame rated)
-
Colour: Light Grey
-
Dimensions (L × W × H): 261.2 × 180 × 58.4 mm
Applications:
-
MDU fibre distribution
-
FTTH and FTTx network deployments
-
Internal and external building installations
-
Feeder-to-drop cable management
-
Residential and commercial fibre networks
