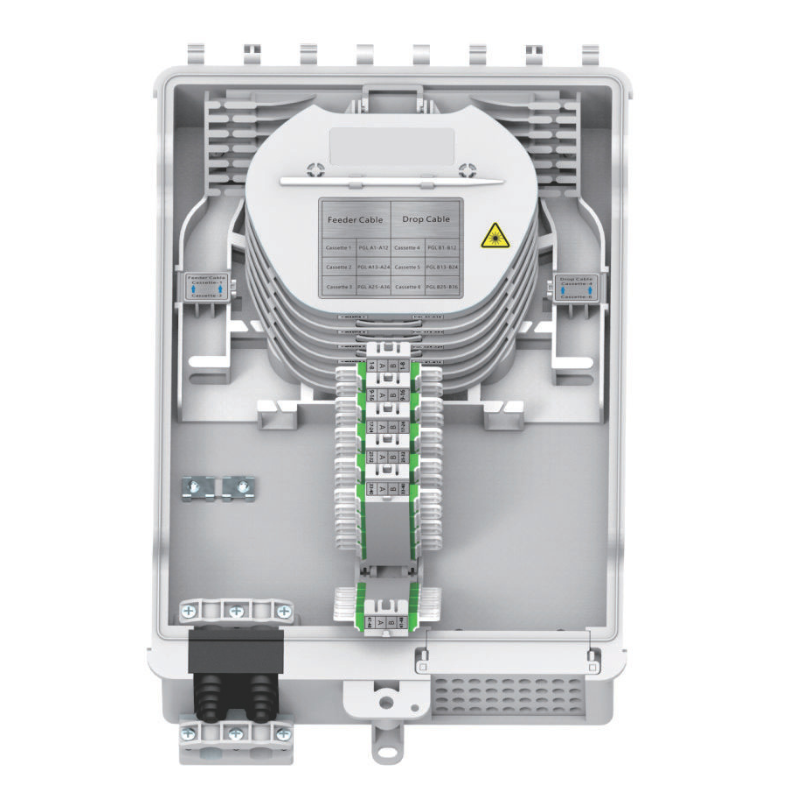

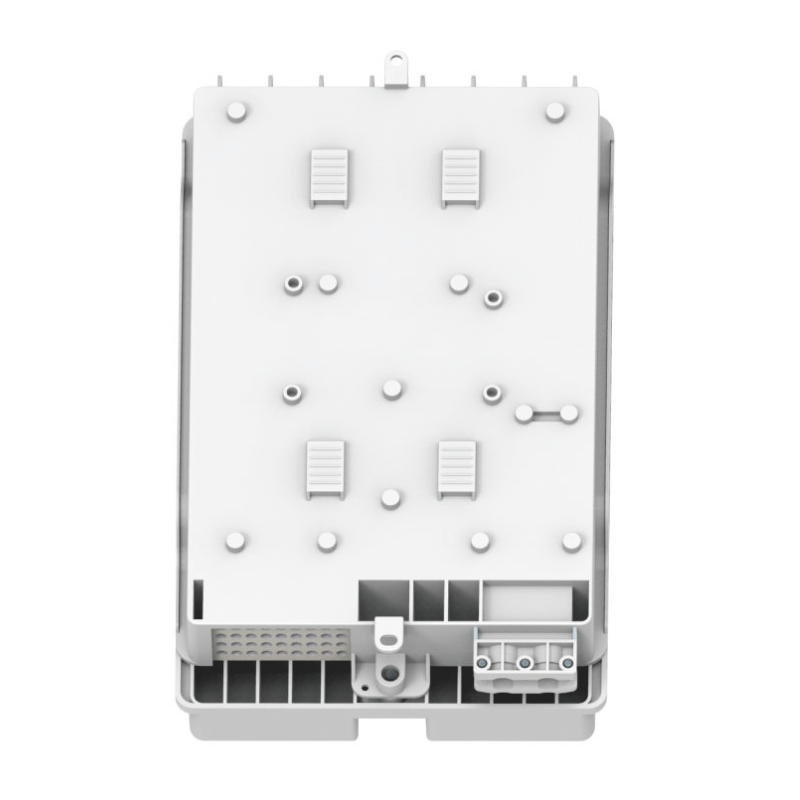

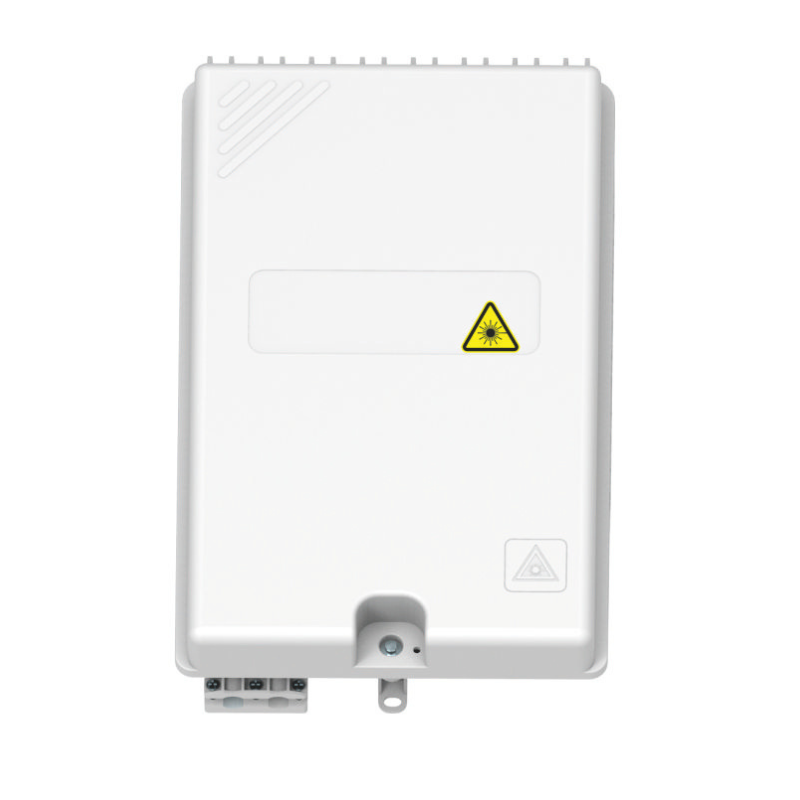

Internal / External 36F FDP – Fibre Distribution Point
The Internal / External 36F FDP – Fibre Distribution Point is a high-capacity, scalable enclosure designed for efficient fibre distribution in MDU and access network environments. Built for both indoor and outdoor installations, it delivers robust protection alongside flexible network configuration capabilities.
Engineered with a structured internal layout, the enclosure supports advanced fibre routing, high-density splicing, splitter integration and organised cable management, ensuring fast, consistent and professional installations. Its larger capacity makes it ideal for high-density deployments, multi-tenant buildings and network expansion projects.
With support for multiple splitter configurations and mid-span cable access, this FDP is suited for both new-build fibre rollouts and retrofit upgrades, providing a future-ready distribution solution.
Key Features:
-
High-capacity, space-efficient design
-
Suitable for internal and external installations (IP55 rated)
-
Advanced cable management and fibre routing
-
Fast, installer-friendly access
-
Secure fibre retention and organisation
-
Splitter-ready and high-density configuration
-
Supports mid-span cable access
-
Durable, impact-resistant housing
-
Wall or pole mountable
Technical Specifications:
-
Product Type: Fibre Distribution Point (FDP)
-
Fibre Capacity: 36F (LC-DX) / 24F (SC-SX)
-
Splice Capacity: Up to 72 fibres
-
Splitter Capacity:
-
1:4 PLC – 4 units
-
1:8 PLC – 4 units
-
1:16 PLC – 2 units
-
1:32 PLC – 1 unit
-
Mounting Options: Wall or pole mounted
-
Cable Entry:
-
Feeder ports: 4 (5–14mm)
-
Drop ports: 36 (3–5mm)
-
IP Rating: IP55
-
Material: PC + ABS (UL94-V0 flame rated)
-
Colour: Light Grey
-
Dimensions (L × W × H): 365 × 230 × 99.8 mm
Applications:
-
High-density MDU fibre distribution
-
FTTH and FTTx network deployments
-
Internal and external building installations
-
Feeder-to-drop cable management
-
Residential and commercial fibre networks
