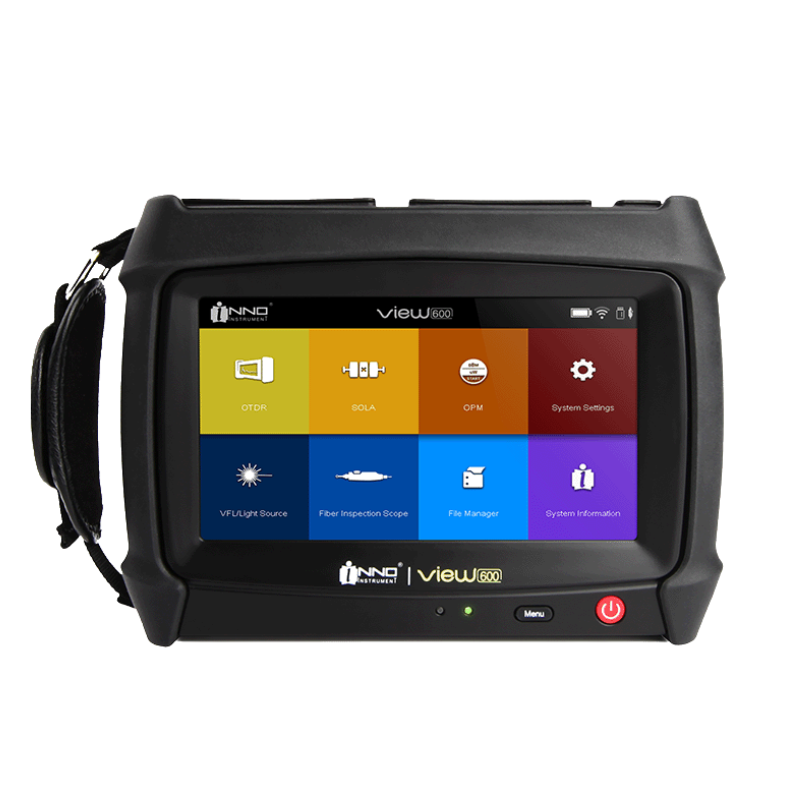

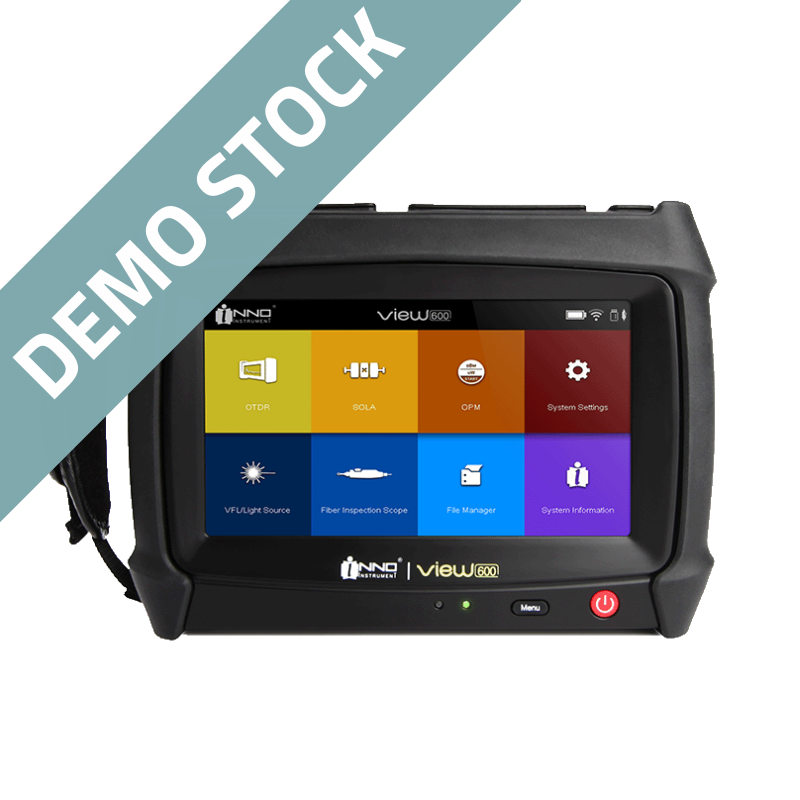

INNO View600 OTDR – DEMO UNIT
The INNO View600 OTDR is a powerful, high-precision optical time-domain reflectometer engineered for professional fibre network installation, testing, and maintenance. Designed with cutting-edge hardware and an intuitive interface, it delivers exceptional measurement accuracy, fast trace analysis, and a superior user experience for both singlemode and multimode applications.
This DEMO UNIT has been fully tested and verified by Telenco UK, ensuring it performs to factory standards while offering outstanding value for engineers seeking proven reliability at a reduced cost.
Key Benefits:
-
Fast and accurate fibre testing for installation, maintenance, and troubleshooting
-
High-brightness 7-inch TFT LCD display for clear visibility in all environments
-
Supports multiple distance units and range settings up to 360km
-
Wide selection of pulse widths for precise event location and distance measurement
-
Exceptional linearity and resolution for professional-grade accuracy
-
Lightweight, portable design ideal for field technicians
-
Long battery life with robust construction for demanding environments
Technical Specifications:
-
Display: 7-inch high-brightness TFT LCD (800 × 480 resolution)
-
Distance Units: m / km / mile / ft / kft
-
Range Settings: 1.3, 2.5, 5, 10, 20, 40, 80, 120, 160, 360km
-
Pulse Widths: 3ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1µs, 2µs, 10µs, 20µs
-
Linearity: 0.03dB
-
Resolution: 0.04m to 10.24m
-
Sampling Points: 256,000 points
-
Output Power: 20mW
-
Dimensions (H×W×D): 6.25 × 8.58 × 2.75 inches
-
Weight: 1.70kg (with battery)
Applications:
-
Installation and certification of FTTH, access, and backbone fibre networks
-
Fault detection, splice and connector loss measurement
-
Network maintenance, verification, and documentation
-
Field testing for long-haul and high-density optical links
|
