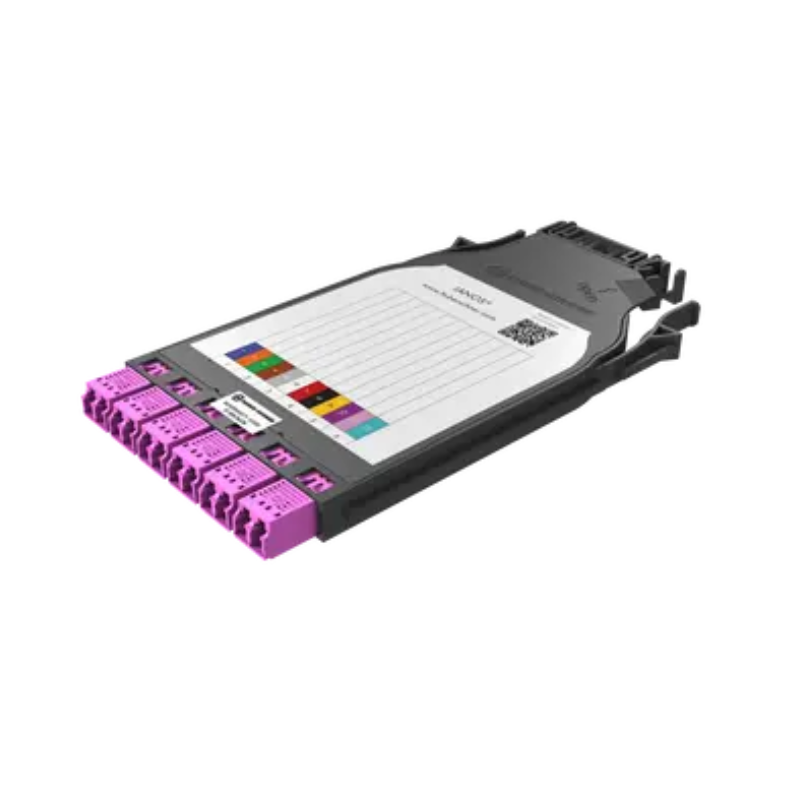

HUBER+SUHNER IANOS® Splicing Module
The HUBER+SUHNER IANOS® OM4 Splicing Module provides a compact, high-density solution for multimode fibre splicing. Designed for seamless integration with IANOS® chassis, this single module includes 6 LC duplex adapters for 12 OM4 fibres and is optimised for minimal insertion loss and rapid installation. Ideal for data centres and enterprise networks requiring performance, flexibility, and manageability.
Key Features & Benefits:
-
12-fibre multimode LC duplex splicing module (6 x LC duplex OM4)
-
Supplied with heat shrink splice protectors
-
Low insertion loss for high-performance networks (≤ 0.15 dB)
-
Integrated splicing cassette with fibre overlength storage
-
Quick-fix cable clamping and fibre identification lid
-
Minimum 30mm bend radius to protect fibre integrity
-
Tool-free installation with quick access to fibre
-
Compact, durable design ideal for high-density applications
-
Compatible with all IANOS® chassis
Technical Specifications:
-
Fibre Type: Multimode OM4
-
Insertion Loss (max): ≤ 0.15 dB
-
Return Loss: ≥ 35 dB
-
Adapters: 6 x LC Duplex (Heather Violet, PC polish)
-
Dimensions (L x W x H): 190.1mm x 96.7mm x 11.9mm
-
Weight: 0.28 kg
-
Material: Plastic
-
Colour: Jet Black (RAL 9005)
-
Mounting Type: Rear mounting
-
Compatibility: IANOS® 19" rack systems
