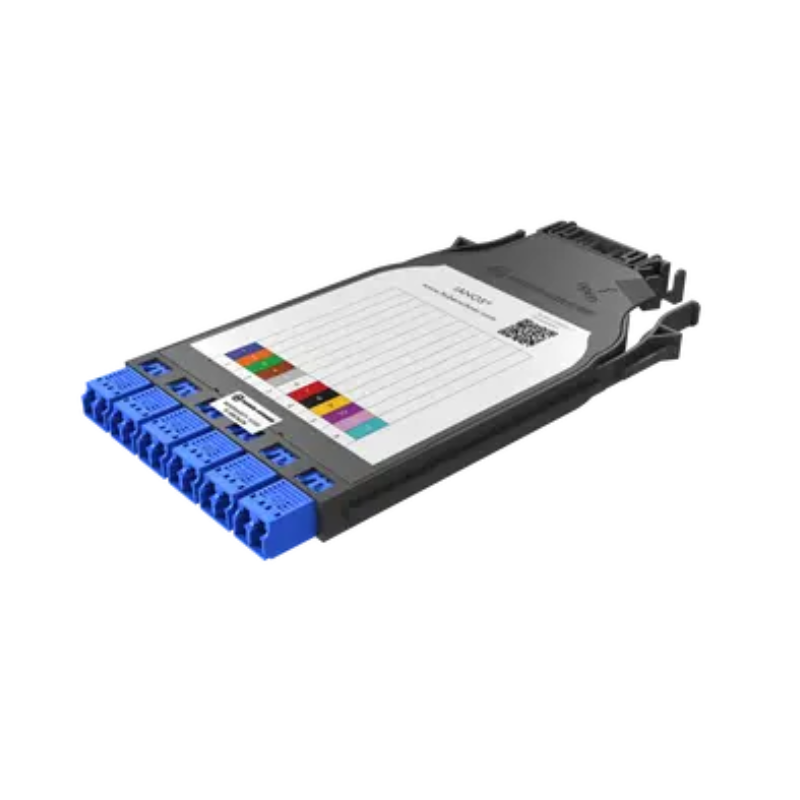

HUBER+SUHNER IANOS Splicing Module (Single) 12 Fibre SM 6x LC Duplex Blue 85115852 Black

HUBER+SUHNER IANOS® Splicing Module

The HUBER+SUHNER IANOS® Single Splicing Module is a high-performance, space-saving solution for fibre splicing in high-density network environments. Designed for fast splicing and reduced coiling time, this singlemode OS2 module includes 6 LC duplex adapters (12 fibres total), an integrated splice cassette, and supports minimum bend radius control throughout the fibre path.

Key Features & Benefits:

• 12-fibre singlemode LC/UPC splicing module (6 x LC duplex adapters)

• Integrated splicing cassette with heat shrink splice protectors

• Optimised for quick access and fast installation

• Compact and lightweight design for space-constrained environments

• Minimum 30mm bend radius control for fibre integrity

• Quick-fix cable management for incoming fibres

• Lid with fibre identification for easy tracing and maintenance

• Compatible with IANOS® chassis for seamless integration

Technical Specifications:

• Fibre Type: Singlemode OS2

• Insertion Loss (max): ≤ 0.3 dB

• Return Loss: ≥ 50 dB

• Adapters: 6 x LC Duplex (Blue, SM UPC)

• Module Dimensions (L x W x H): 190.1mm x 96.7mm x 11.9mm

• Weight: 0.28 kg

• Material: Plastic

• Colour: Jet Black (RAL 9005)

• Mounting Type: Rear mounting

• Compatibility: HUBER+SUHNER IANOS® systems
