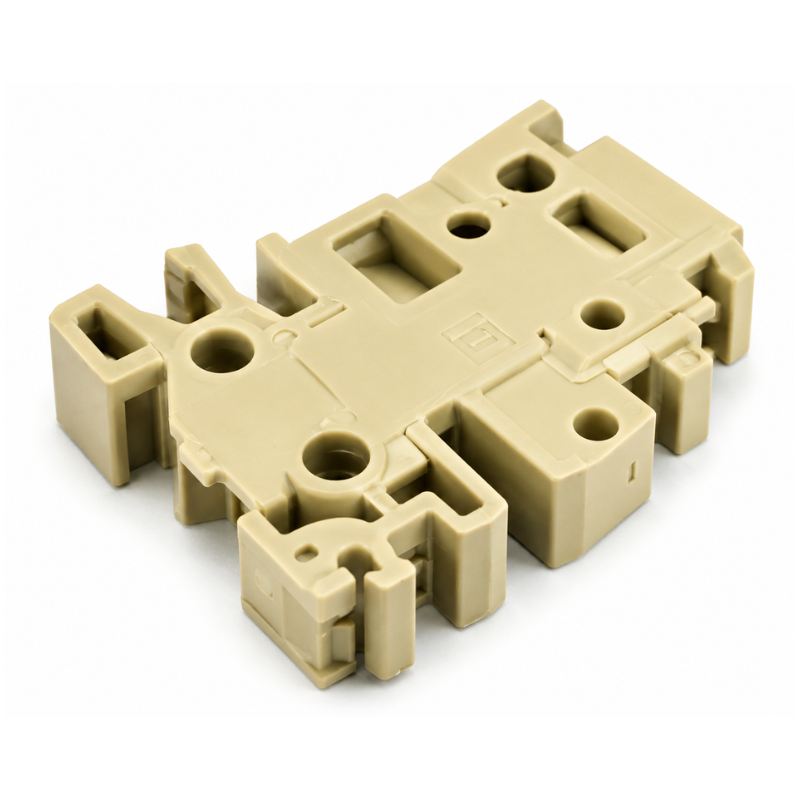

Weidmüller EWK1 End Stop/Bracket – TS32
The Weidmüller EWK1 End Stop/Bracket – TS32 is a robust DIN rail end bracket designed to securely retain terminal blocks on TS32 mounting rails in electrical control panels, switchgear and industrial installations.
Manufactured from high-quality Wemid insulating material, the EWK1 provides a reliable end stop that prevents terminal blocks from moving along the DIN rail, maintaining the integrity and organisation of electrical assemblies. Its durable construction offers excellent mechanical strength and a UL94 V-0 flammability rating, making it suitable for demanding industrial environments.

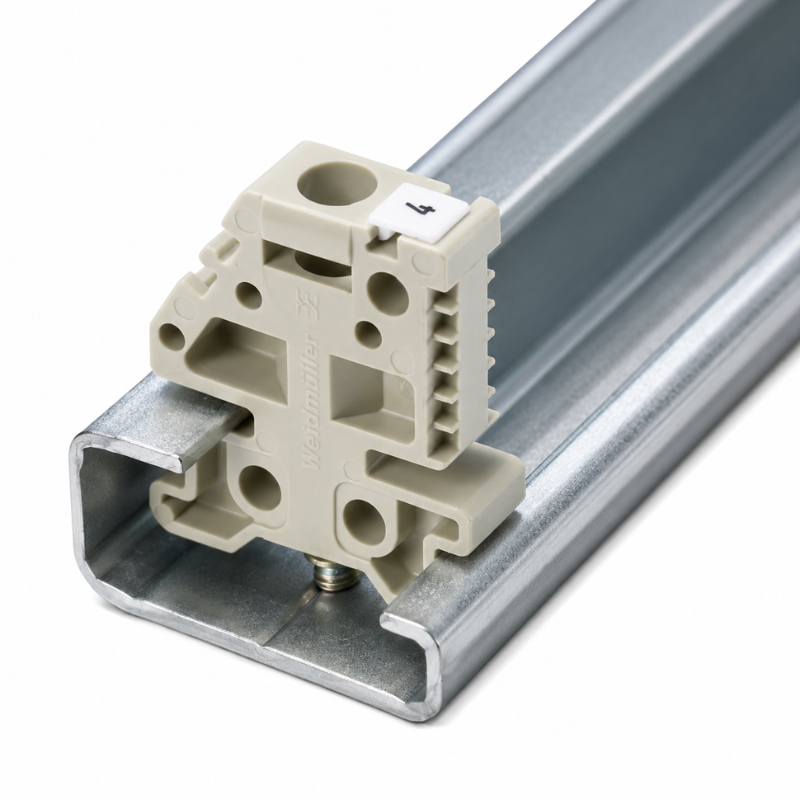

The bracket is designed for direct screw mounting onto TS32 rails and provides secure locking with a tightening torque of 0.5–1.0Nm. With an operating temperature range of -50°C to +100°C, the EWK1 delivers dependable performance across a wide variety of electrical, automation and telecommunications applications.
Ideal for new panel builds, maintenance and retrofit projects, the Weidmüller EWK1 ensures safe and professional terminal block installation.
Key Features:
-
Genuine Weidmüller end stop/bracket
-
Designed for TS32 DIN mounting rails
-
Securely retains terminal blocks
-
Direct screw mounting
-
Robust Wemid insulating material
-
UL94 V-0 flame-retardant rating
-
High mechanical strength
-
Wide operating temperature range
-
RoHS compliant
-
Suitable for industrial control panels and switchgear
Technical Specifications:
-
Brand: Weidmüller
-
Model: EWK1
-
Product Type: End Stop / End Bracket
-
Mounting Rail: TS32
-
Mounting Method: Direct screw fixing
-
Locking Method: Screw fixing
-
Material: Wemid
-
Colour: Beige
-
Width: 9mm
-
Height: 27mm
-
Depth: 31mm
-
TS32 Offset: 13.5mm
-
Tightening Torque: 0.5–1.0Nm
-
Operating Temperature: -50°C to +100°C
-
Ambient Temperature: -50°C to +55°C
-
UL94 Flammability Rating: V-0
-
RoHS Compliant: Yes
-
REACH SVHC: None above 0.1%
-
Weight: 4.34g
Applications:
-
DIN rail terminal block installations
-
Electrical control panels
-
Industrial automation systems
-
Switchgear assemblies
-
Distribution boards
-
Control cabinets
-
Machine building
-
Telecom equipment
-
Utility infrastructure
-
Electrical maintenance and panel upgrades
