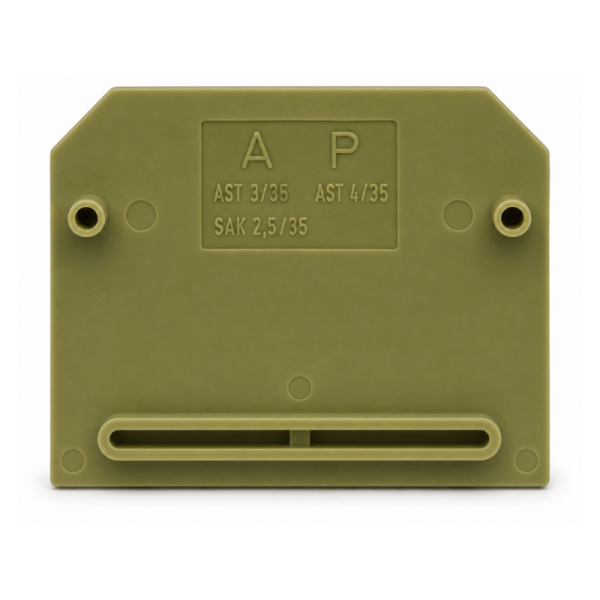

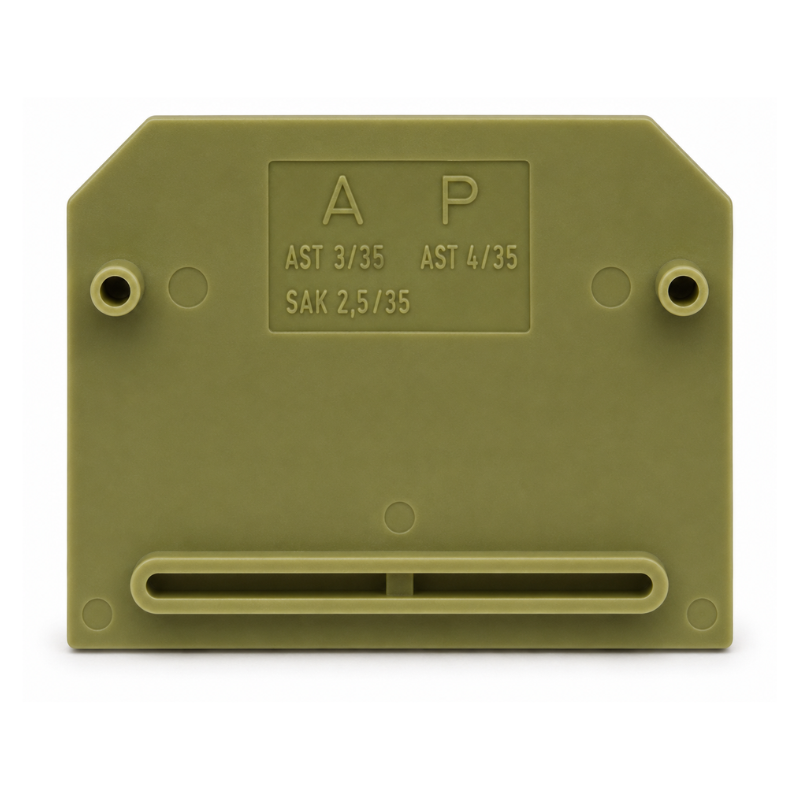

Weidmuller APSAK2.5+AST3+4/35 End and Partition Plate

Weidmüller APSAK2.5+AST3+4/35 End and Partition Plate

The Weidmüller APSAK2.5+AST3+4/35 End and Partition Plate is a high-quality insulating end plate designed to provide electrical isolation and mechanical separation for compatible Weidmüller terminal blocks.

Manufactured from durable PA 66 (Polyamide 66), this slim 1.5mm partition plate is used to safely isolate adjacent terminal blocks, helping to improve organisation, enhance safety and maintain clear circuit separation within electrical control panels, switchgear and industrial installations.

The snap-on design enables fast, tool-free installation directly onto compatible terminal assemblies, while its compact profile maximises available DIN rail space. With a UL94 V-2 flammability rating and an operating temperature range of -50°C to +100°C, the APSAK2.5+AST3+4/35 delivers reliable long-term performance in demanding industrial environments.

Ideal for control cabinets, machine building, telecommunications and electrical distribution systems, this genuine Weidmüller accessory provides professional finishing and enhanced terminal protection.

Key Features:

• Genuine Weidmüller end and partition plate

• Provides electrical isolation between terminal blocks

• Compatible with selected Weidmüller terminal systems

• Slim 1.5mm profile

• Durable PA 66 (Polyamide 66) construction

• Snap-on installation for quick fitting

• Direct mounting design

• UL94 V-2 flame-retardant material

• Wide operating temperature range

• RoHS compliant

• Professional panel finishing solution

Technical Specifications:

• Brand: Weidmüller

• Model: APSAK2.5+AST3+4/35

• Product Type: End and Partition Plate

• Material: PA 66 (Polyamide 66)

• Colour: Beige

• Width: 1.5mm

• Height: 39mm

• Depth: 31mm

• Mounting Method: Snap-on

• Installation: Direct mounting

• Operating Temperature: -50°C to +100°C

• Storage Temperature: -25°C to +55°C

• Ambient Temperature: -50°C to +55°C

• UL94 Flammability Rating: V-2

• RoHS Compliant: Yes

• REACH SVHC: None above 0.1%

• Weight: 2g

Applications:

• DIN rail terminal block assemblies

• Electrical control panels

• Industrial automation systems

• Switchgear installations

• Distribution boards

• Control cabinets

• Machine building

• Telecom equipment

• Utility infrastructure

• Electrical maintenance and panel upgrades
