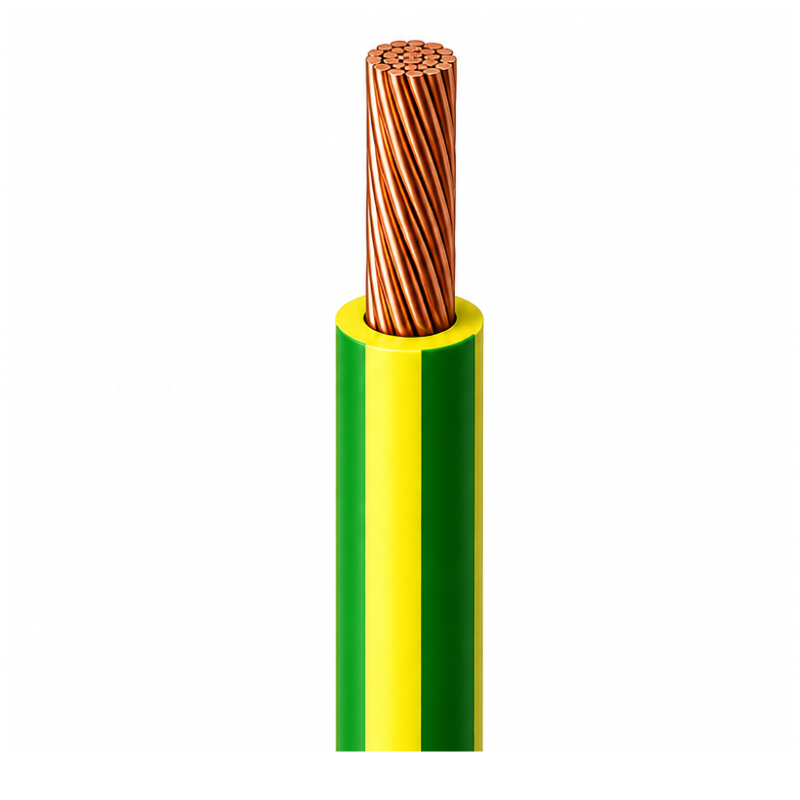

Tri-Rated Single Core Cable – 2.5mm – Earth - Per Metre

Tri-Rated Single Core Cable – 2.5mm – Earth – Per Metre

The Tri-Rated Single Core Cable – 2.5mm – Earth – Per Metre is a high-performance flexible cable designed for switch control, relay and instrumentation panels, power switchgear, motor starters, controllers and general panel wiring applications.

Manufactured with a Class 5 flexible copper conductor and insulated with heat-resistant PVC, this tri-rated cable offers excellent flexibility and durability for internal wiring installations. Commonly referred to as BS 6231 cable, H07V2-K or panel wire, it is approved to UK, European, UL and CSA standards, making it suitable for both domestic and international applications.

Supplied per metre, the cable allows installers to purchase the exact length required, reducing waste while providing a reliable solution for industrial, commercial and telecommunications installations. Every cable is BASEC approved and manufactured under rigorous quality control, with compliance verified through The Cable Lab®, an ISO/IEC 17025 and IECEE CBTL accredited testing facility.

Key Features:

• Tri-rated single core cable

• 2.5mm² conductor

• Earth insulation

• Sold per metre

• Class 5 flexible copper conductor

• Heat-resistant PVC insulation

• BASEC approved

• Flame retardant construction

• Suitable for panel wiring and switchgear

• Complies with UK, UL and CSA standards

Technical Specifications:

• Product Type: Tri-Rated Single Core Cable

• Conductor Size: 2.5mm²

• Supply Length: Per Metre

• Colour: Earth

• Conductor: Class 5 Flexible Copper

• Insulation: PVC (Polyvinyl Chloride)

• UL Style Number: 1015

Voltage Rating (Uo/U)

• UL / CSA / BS 6231: 0.6/1kV

• BS EN 50525-2-31 (H07V2-K): 450/750V

Temperature Rating

• UL / CSA: -15°C to +105°C

• BS 6231: -15°C to +90°C

• Fixed Installations: Suitable to -40°C

Minimum Bending Radius

• 6 × Overall Cable Diameter

Third-Party Accreditation

• BASEC Approved

• Tested and Certified by BASEC

• Verified by The Cable Lab® (ISO/IEC 17025 & IECEE CBTL Accredited)

Standards

• EN 50525-2-31

• BS 6231 Type CK

• UL Subject 758

• CSA C22.2 No. 210 (#LL246095)

• IEC/EN 60228

• IEC/EN 60332-1-2 Flame Retardant

Applications:

• Control panels

• Switchgear

• Relay panels

• Instrumentation systems

• Motor starters

• Electrical control equipment

• Industrial automation

• Panel building

• Telecommunications equipment

• Internal equipment wiring
